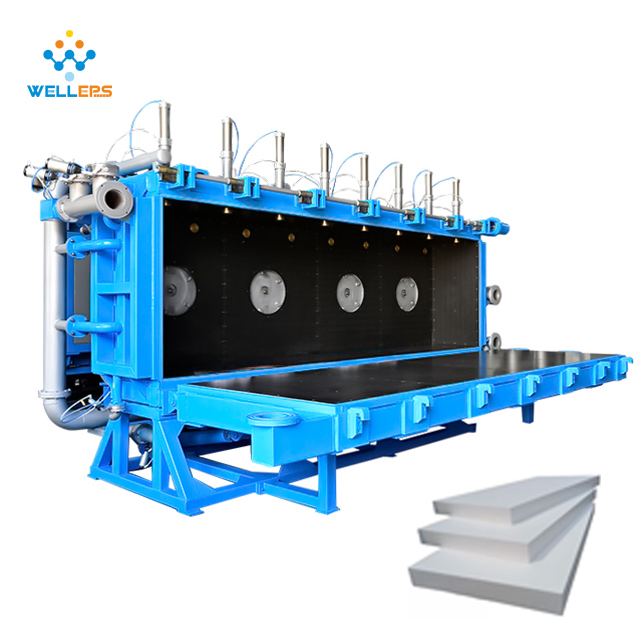

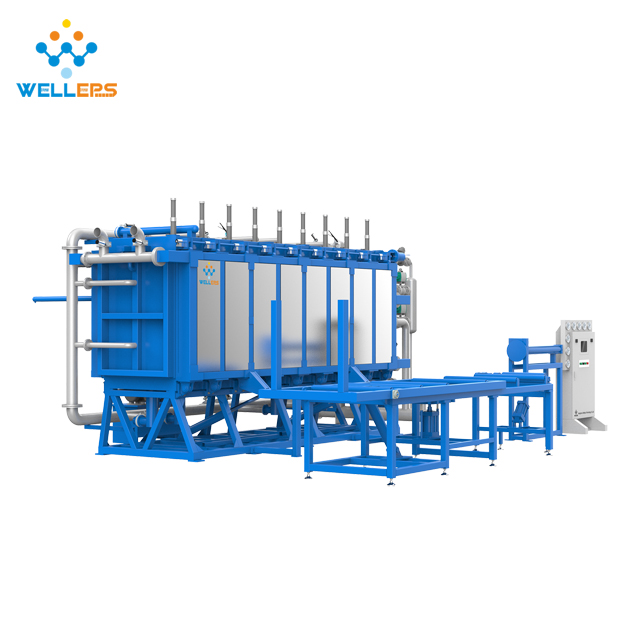

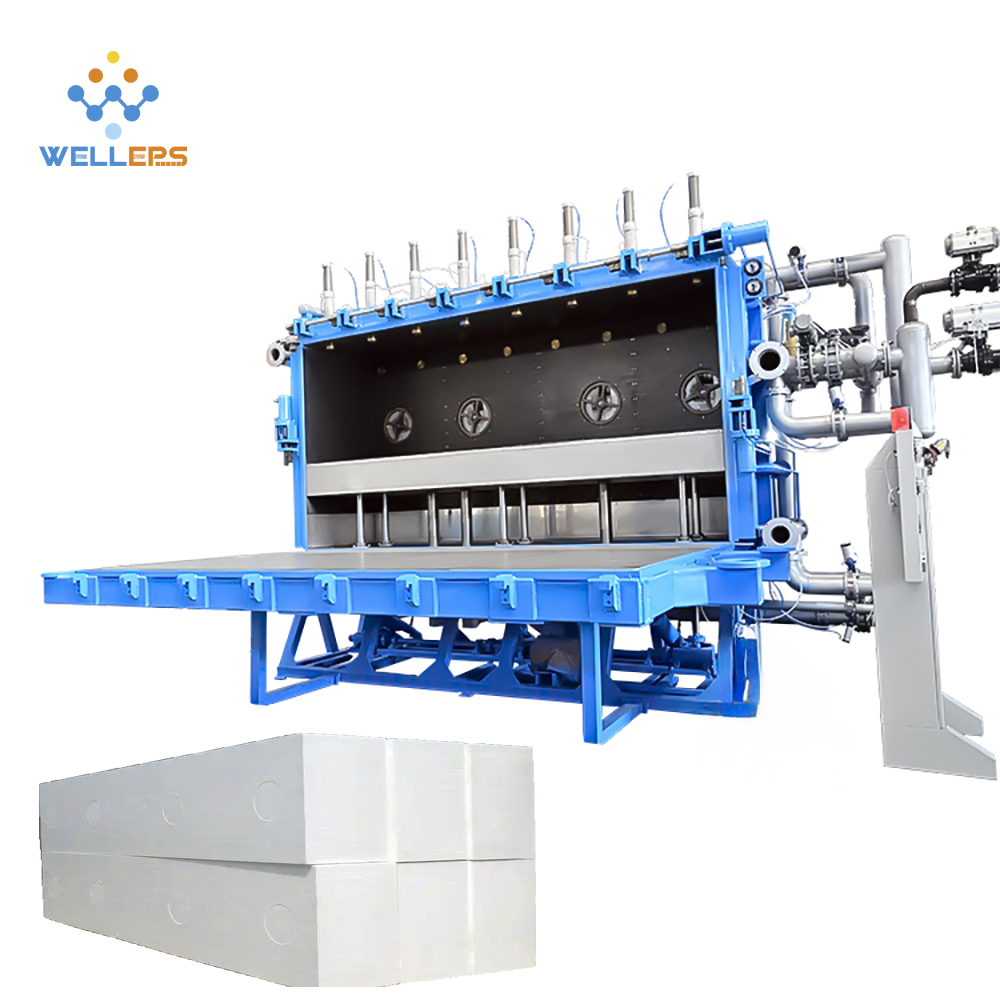

High Efficient EPS Vacuum Block Moulding Machine

Short Description:

1. Machine with strong structure.
2. Use PLC and touch screen control, run automatically.
3. Include strong hopper.
4. High efficient vacuum to make good quality products.
5. Use different operate language, more easy to operate for workers.
6. Use automatic convey and weight system.
7. Use good quality parts.
8. Suitable to make both low density and high density products.


Product Detail

FAQ

Product Tags

Main Features

1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.

2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.

4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.

5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.

6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.

Technical Data

Item   PSB200TZ PSB300TZ PSB400TZ PSB600TZ
Mould Cavity Size mm 2050*1240-940*1030 3060*1240-940*1030 4080*1240-940*1030 6100*1240-940*1030
Block Size mm 2000*1200-900*1000 3000*1200-900*1000 4000*1200-900*1000 6000*1200-900*1000
Steam ENTRY DN150 DN150 DN150 DN200
Consumption 25-45kg/cycle 45-65kg/cycle 60-85kg/cycle 95-120kg/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Compressed Air Entry DN40 DN40 DN50 DN65
Consumption 1.5-2m³/cycle 1.8-2.2m³/cycle 2-2.5m³/cycle 2-2.3m³/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Vacuum Cooling Water Entry DN40 DN40 DN40 DN40
Consumption 0.2-0.4m³/cycle 0.4-0.6m³/cycle 0.6-0.8m³/cycle 0.8-1m³/cycle
Pressure 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa
Drainage Vacuum drain φ100mm φ125mm φ125mm φ125mm
Steam vent φ100mm φ100mm φ200mm φ200mm
Condensate φ150mm φ150mm φ150mm φ150mm
Blower outlet φ100mm φ100mm φ150mm φ150mm
Throughpt 15kg/m3 4min/cycle 6min/cycle 7min/cycle 8min/cycle
Power   23.75Kw 24.75Kw 28.5Kw 37.5Kw
Overall Dimension L*W*H 5700*4000*3300 7200*4500*3500 11000*4500*3500 12600*4500*3500
Weight   8000kg 9500kg 15000kg 18000kg
Room Height Required   6000mm 6000mm 6000mm 6000mm
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

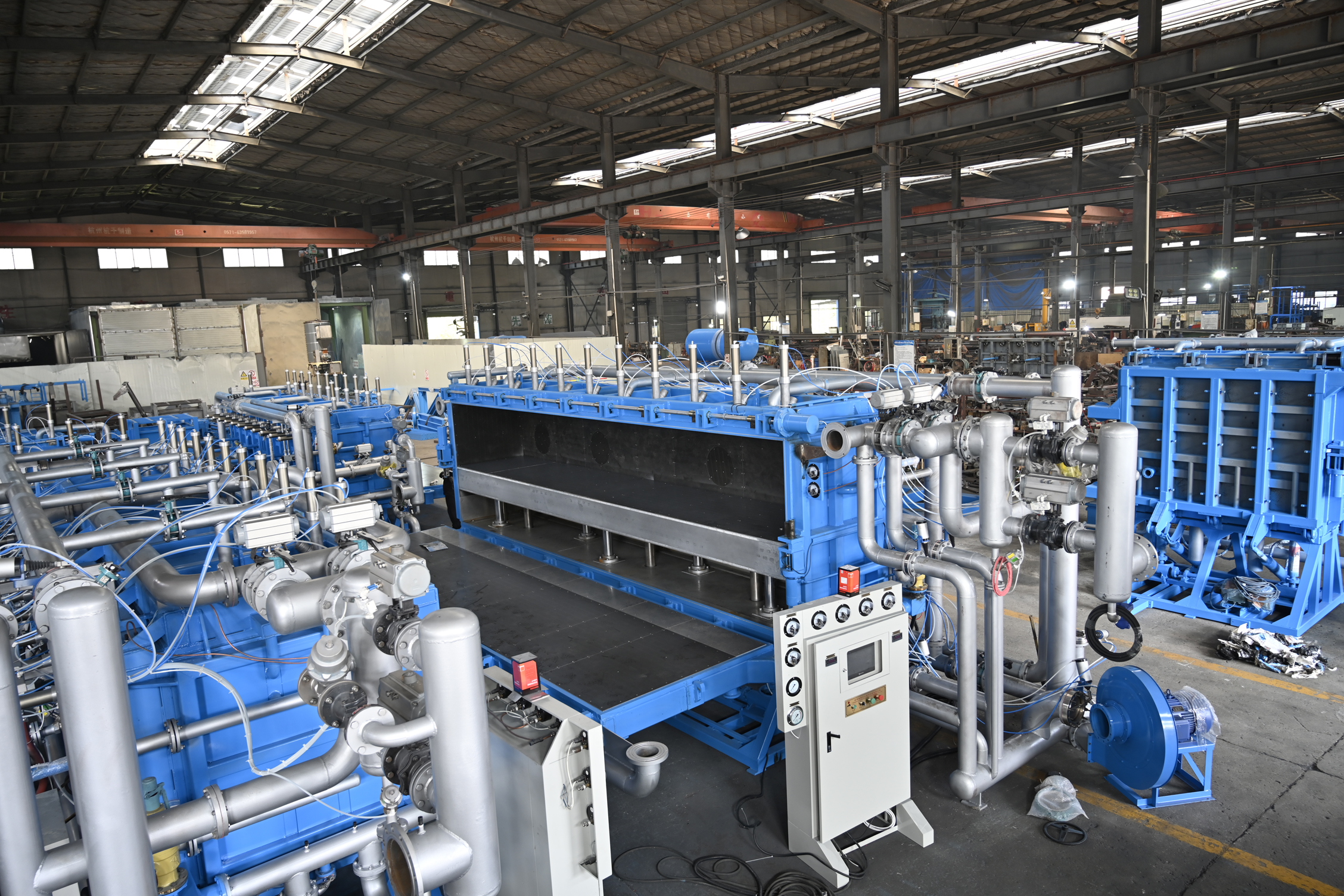

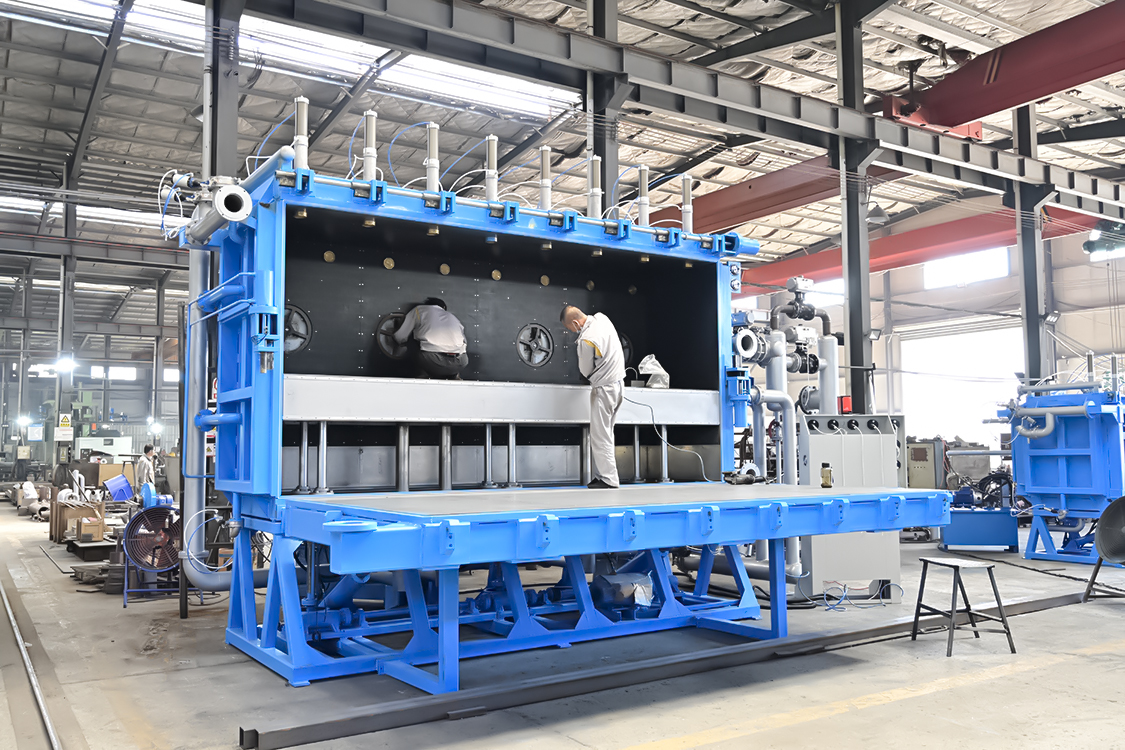

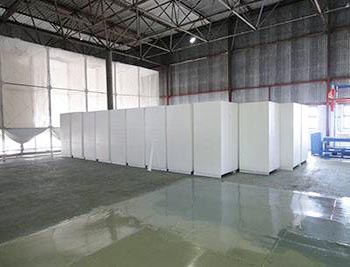

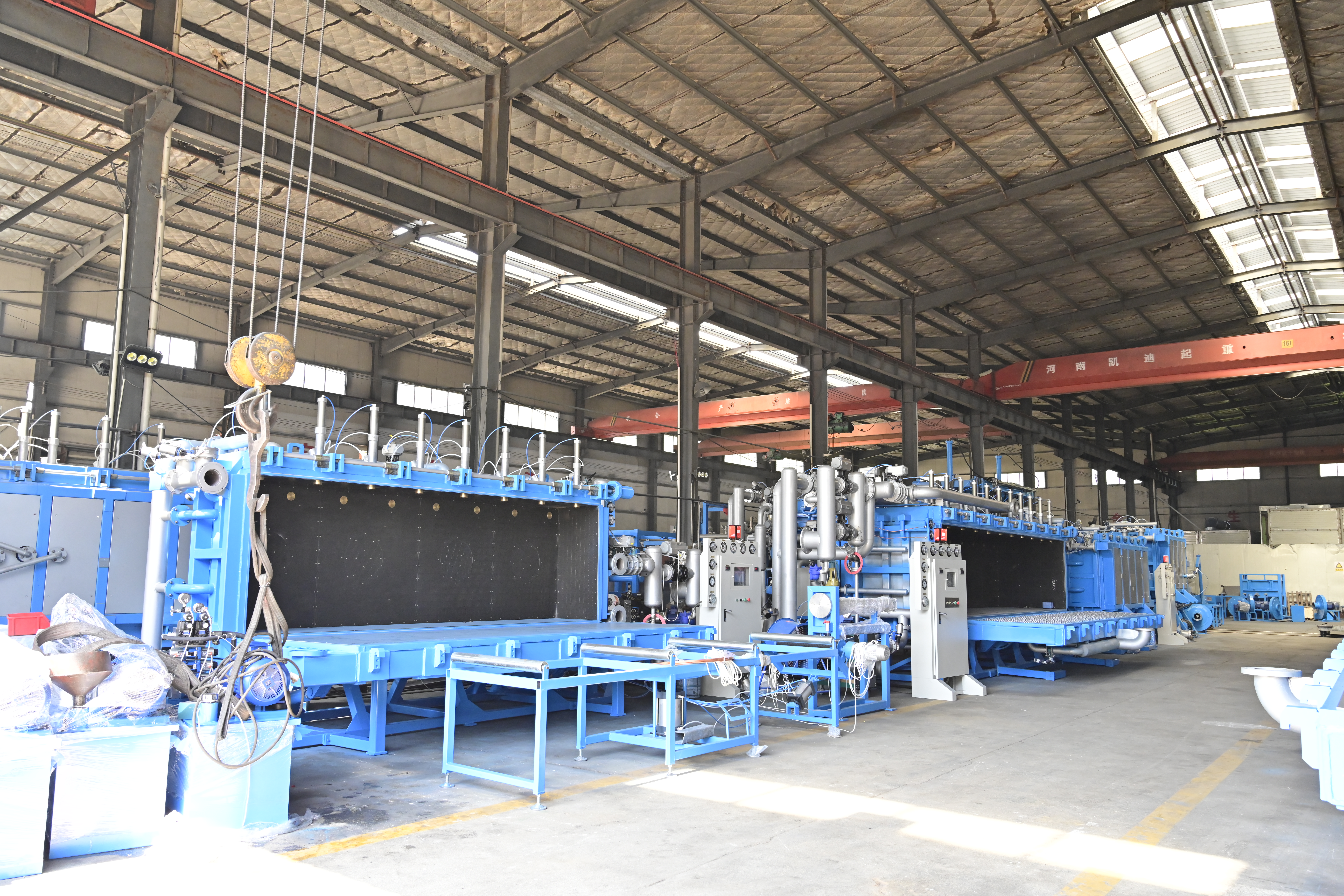

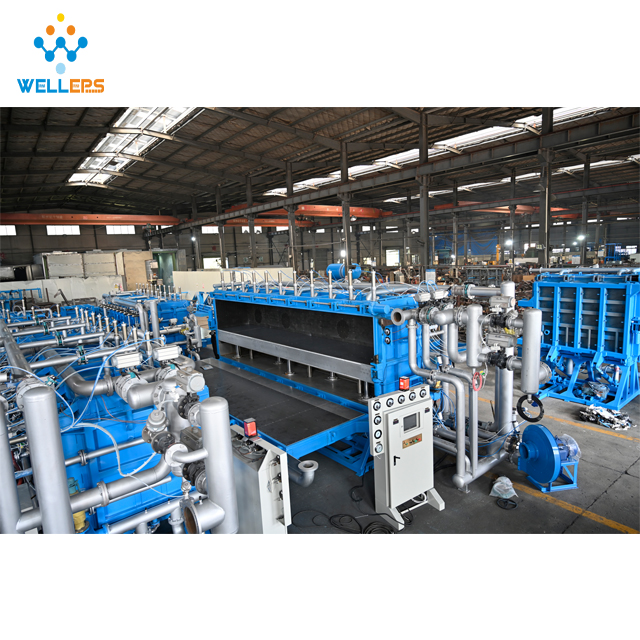

EPS block Machine in workshop :

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

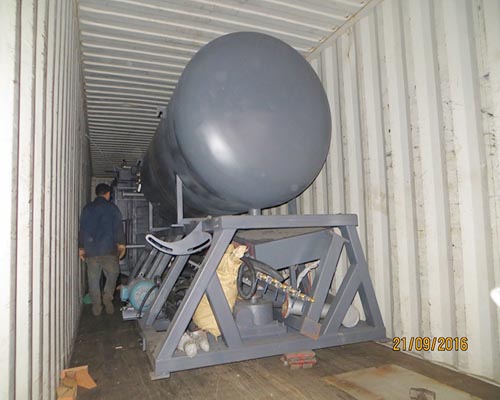

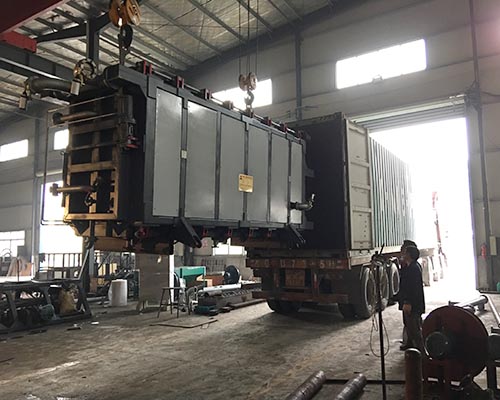

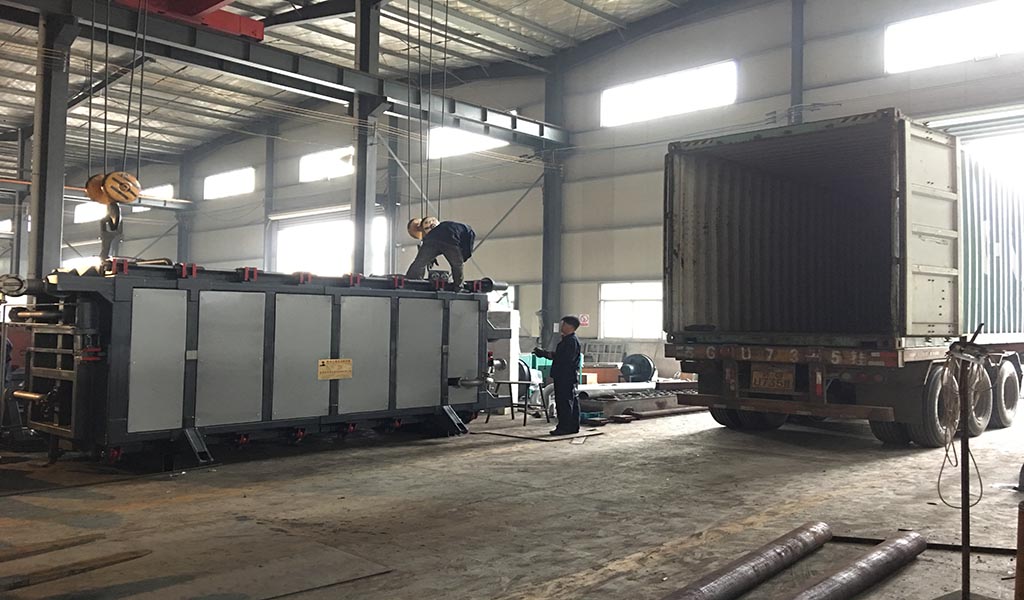

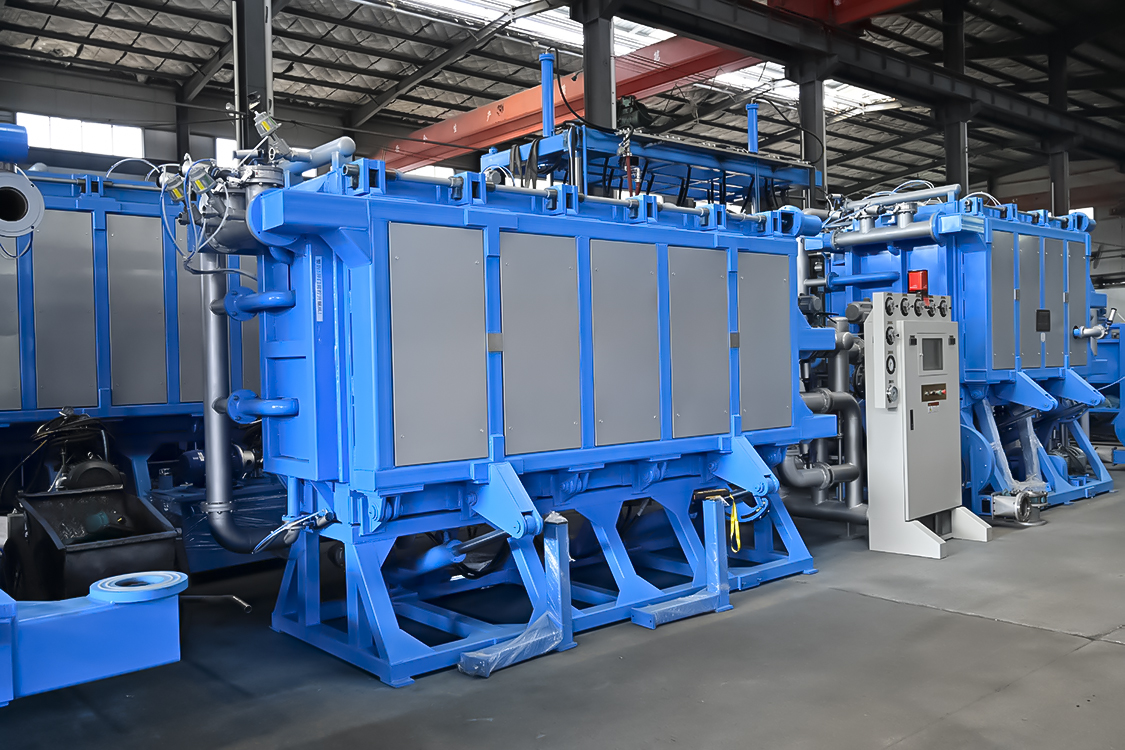

EPS block Machine loading container:

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

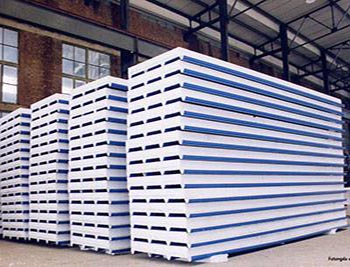

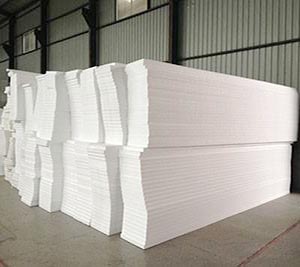

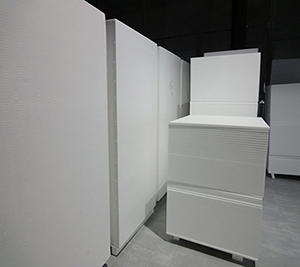

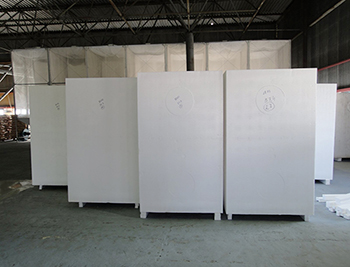

EPS Products:

EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine
EPS Vacuum Block Moulding Machine

Remarks:

Above equipment has TF and TZ model

TF type is air-cooling type, cooling without c vacuum system

TF type products thickness is 600 mm.

TZ products maximum thickness is 1000 mm.
