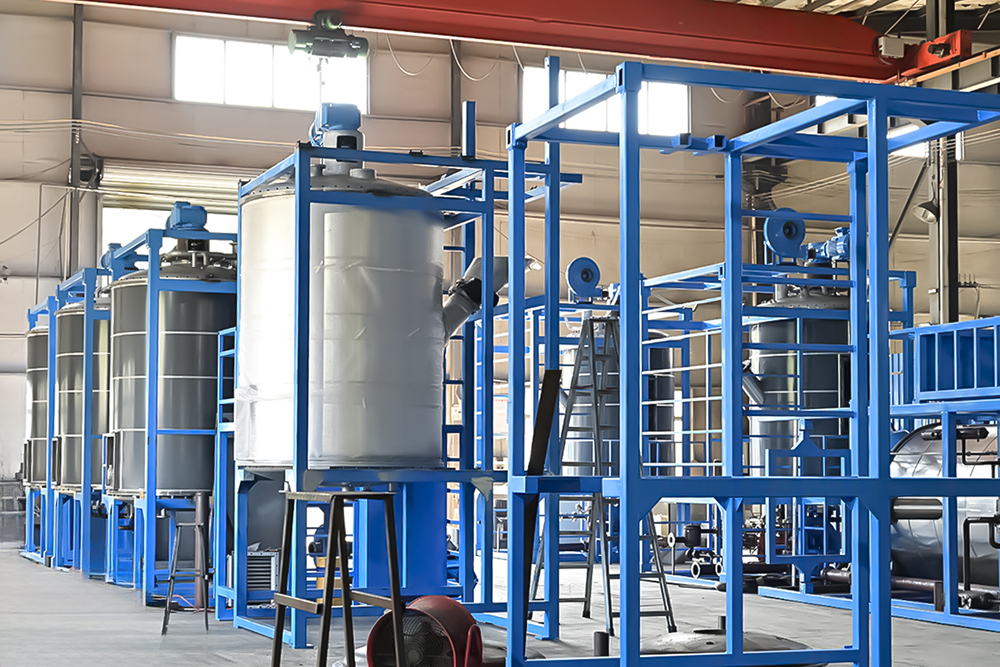

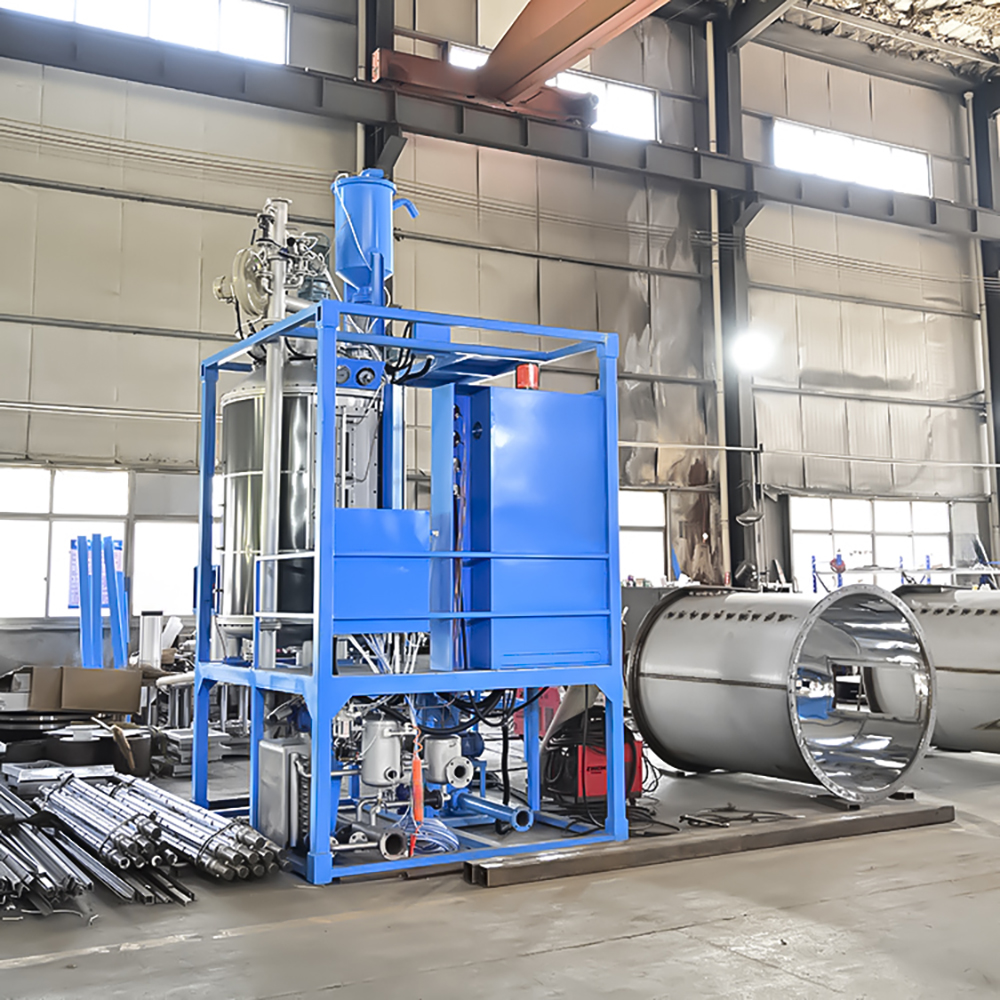

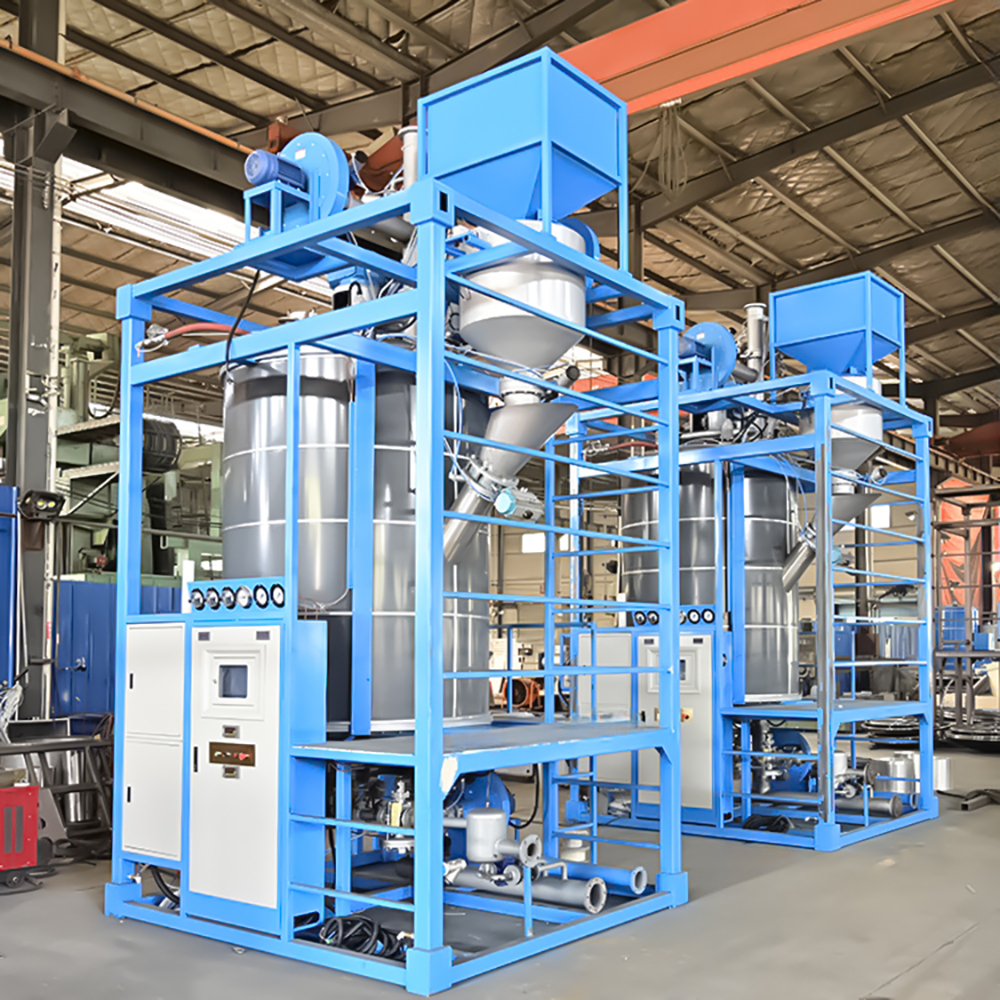

Best Quality Automatic EPS Batch Pre-expander

1.Feeding, expander, filtrating, transport to silos automatically

2.Steam system controlled by pressure reducing valve and Angle seat valve, to achieve accurate heating

3.Feeding system adopts electronic weighing system, material level sensor control, so as to control capacity of foaming materials, to ensure that the foam bead evenly

4.Use PLC controller and touch screen, achieve precise automatic operation

5.Feed barrels made of stainless steel. Electrical components, valves are used abroad well-known brands, to maintain the durable, stable performance

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Main Features

1.Feeding, expander, filtrating, transport to silos automatically

2.Steam system controlled by pressure reducing valve and Angle seat valve, to achieve accurate heating

3.Feeding system adopts electronic weighing system, material level sensor control, so as to control capacity of foaming materials, to ensure that the foam bead evenly

4.Use PLC controller and touch screen, achieve precise automatic operation

5.Feed barrels made of stainless steel. Electrical components, valves are used abroad well-known brands, to maintain the durable, stable performa

Technical Data

Item		Type
Item		PSJ110	PSJ130	PSJ150	PSJ160
Expansion Chamber	Diameter	Φ1100mm	Φ1300mm	Φ1500mm	Φ1600mm
	Volume	1.4m³	2.4m³	4.5m³	5.4m³
	Useable Volume	0.9m³	1.6m³	3.2m³	4.5m³
Steam	Entry	DN50	DN65	DN40	DN100
	Consumption	6-9kg/cycle	10-12kg/cycle	15-18kg/cycle	18-20kg/cycle
	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Compressed Air	Entry	DN25	DN40	DN50	DN40
	Consumption	0.5m³-0.6m³/cycle	0.7m³-0.9m³/cycle	0.5-0.6m³/cycle	0.5m³-0.8m³/cycle
	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Drainage	Drainage Port	DN80	DN100	DN100	DN150
Drainage	Condensate	DN80	DN100	DN40	DN50
Throughput		12g/l 240kg/h	12g/l 530kg/h	12g/l 600kg/h	12g/l 1500kg/h
		15g/l 320kg/h	15g/l 670kg/h	15g/l 900kg/h	15g/l 2000kg/h
		20g/l 430kg/h	20g/l 920kg/h	20g/l 1200kg/h	20g/l 26000kg/h
		30g/l 600kg/h	30g/l 1220kg/h	30g/l 1500kg/h	30g/l 3100kg/h

Material Conveying Line		Φ150mm	Φ250mm	Φ150mm	Φ250mm
Power		16.13Kw	20.3Kw	24.85Kw	38.45Kw
Density		12-30g/l	12-30g/l	12-30g/l	12-30g/l
Density Tolerance		≤±3%	≤±3%	≤±5%	≤±3%
Overall Dimension	LWH	560038004530	738030004500	43104150 5120	110002840 6050
Weight		3500kg	4200kg	5000kg	8000kg
Room Height Required		5000mm	5500mm	6000mm	7000mm
Auto density-weighing system		optional	optional		optional
Second expansion			optional	include	optional
