EPS Foam ICF Block Insulation Making Shape Molding Machine

EPS ICF molding machine is a professional machine for producing EPS ICF (insulated concrete form), which can quickly and efficiently produce high-quality EPS ICF modules.


Product Detail

FAQ

Product Tags

Main Features

1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting processing, to ensure the machine have strong structure, not get rust and increase the machine's working life.

2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole production process is working automatically.

3.Machine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.

4.Machine with vacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the moisture content of products, so that products moisture content of 8% or even less.

5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting.

6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mould even, low noise and energy saving,etc.

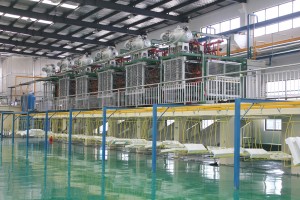

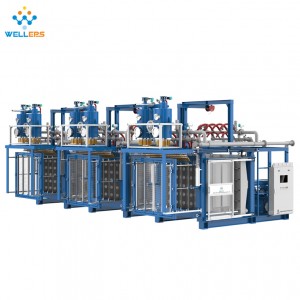

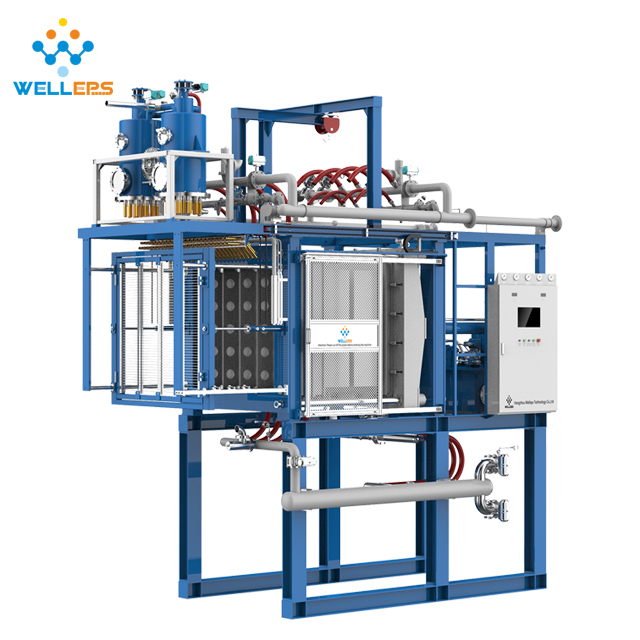

eps machine
eps machine

Technical Data

Item Unit Type
PSZ100T PSZ120T PSZ140T PSZ160T PSZ175T
Mould Dimension mm mm 1000*800 1200*1000 1400*1200 1600*1350 1750*1450
Max Product Dimension mm mm 850*650*330 1050*850*330 1220*1050*330 1420*1200*330 1550*1250*330
Stroke mm 210-1360 210-1360 270-1420 270-1420 270-1420
Steam Entry mm DN65 DN65 DN80 DN80 DN80
Consumption kg/cycle (12-15T)Steam of 1T material 每吨原料消耗12-15吨蒸汽
Cooling Water Entry mm DN65 DN65 DN65 DN65 DN65
Consumption kg/cycle 45-130 45-130 50-140 50-140 55-190
Compressed Air Entry mm DN40 DN40 DN40 DN50 DN50
Consumption m3/cycle 1.3 1.3 1.4 1.4 1.5
Vacuum Pump Capacity m3/h 165 165 250 280 280
Power Kw 11 11 14.5 16.5 16.5
Overall Dimension L*W*H mm 4500*1640

*2700

4500*1840

*2900

4600*2140

*3100

5000*2300

*3400

5000*2550

*3700

Weight kg 4100 4600 4900 5700 6200
Cycle Time s 60-90 60-100 60-150 100-180 120-190

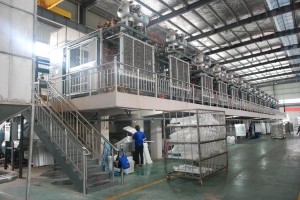

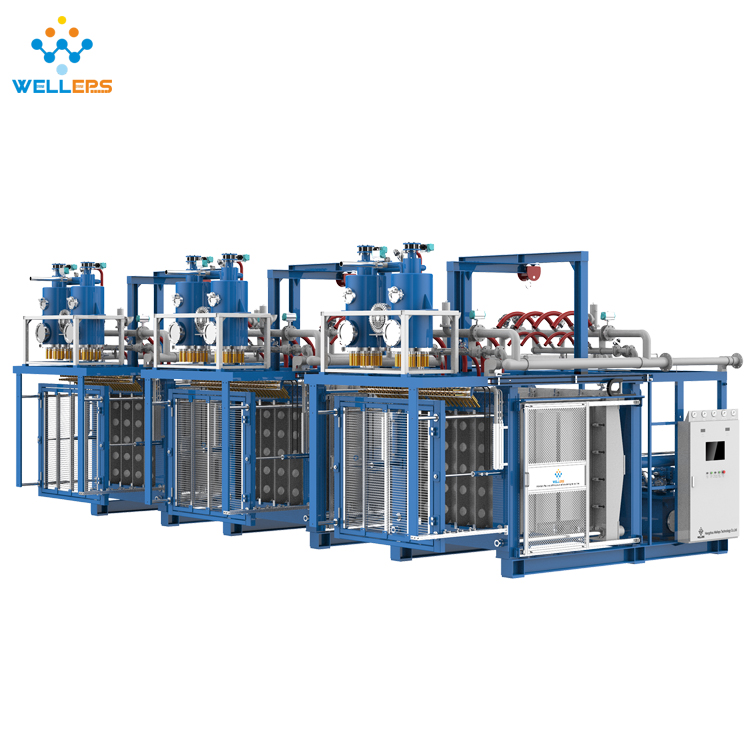

eps machine
eps machine

Products

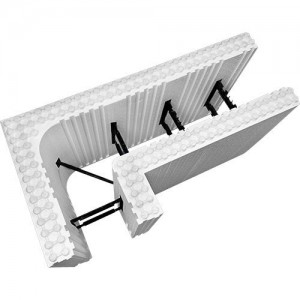

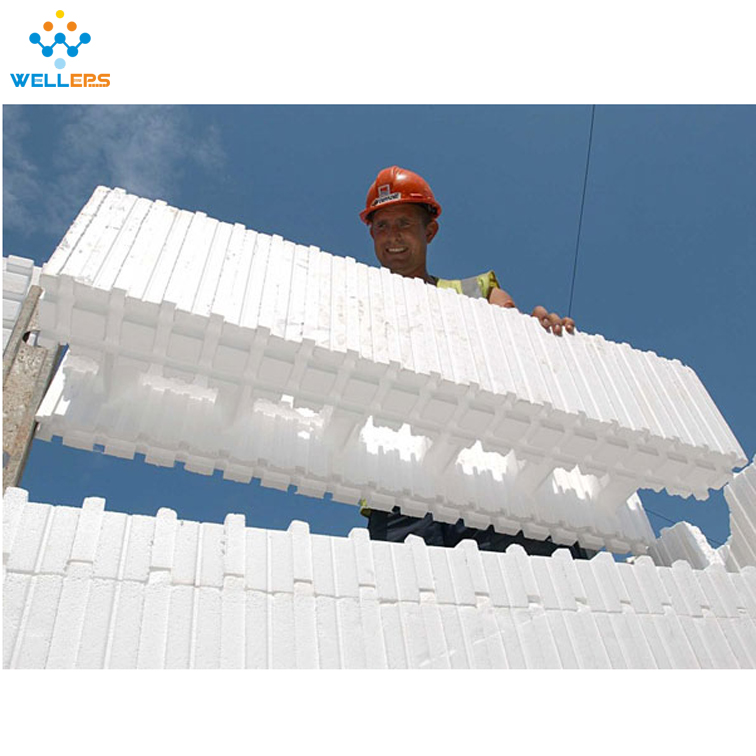

EPS-ICF-block

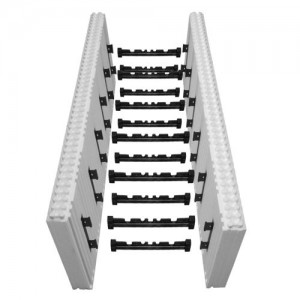

ICF  block

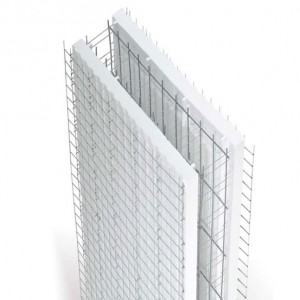

EPS 3D panel double panel

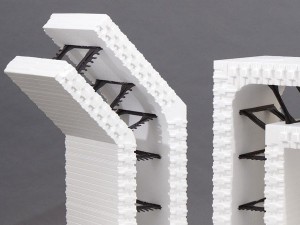

Icf Insulated Concrete Forms

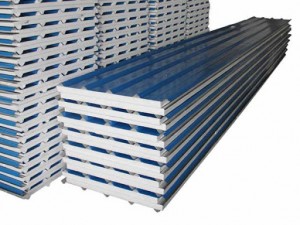

EPS-sandwich-panel

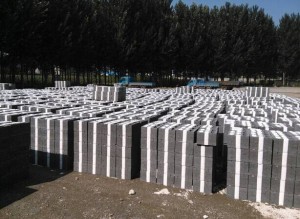

Insulated Eps Foam Concrete Block
