Good User Reputation for Etpu Mould - High Quality EPS Expandable Styrofoam Packaging Boxes Vacuum Forming Machine – WELLEPS

Product Detail

FAQ

Product Tags

Feedback (2)

Our corporation puts emphasis about the administration, the introduction of talented staff, plus the construction of team building, attempting hard to improve the quality and liability consciousness of team members. Our organization successfully attained IS9001 Certification and European CE Certification of Epp Plane Model Making Tool, Etpu Foam Shoe Sole Mould, Eps Raw Material Plant, We never stop improving our technique and high quality to help keep up using the enhancement trend of this industry and meet your gratification effectively. In case you are intrigued in our items, please call us freely.

Good User Reputation for Etpu Mould - High Quality EPS Expandable Styrofoam Packaging Boxes Vacuum Forming Machine – WELLEPS Detail:

Main advantage:

1. Use servo drive system, the machine can work very stable.

2. Use two side steam and vacuum, machine works more efficiently.

3. With special design ejectors shelf for easy to install the moulds.

Characteristics:

1. Use proportional steam valve for save steam and heat accurately.

2. Can install the filling guns and ejectors on the ground, can save time to install moulds.

3. Special designed hopper can control the material filling more accurately to ensure make good quality products.

4. Use stainless steel oil pipes to keep machine running stable and not leak oil.

5. Lock moulds same as Germany machine, can keep high pressure in the moulds.

6. All pipe and mould plate coated with zinc, to ensure the machine not easy to get rust and long time running with the steam and water.

Item			PSZS-1412	PSZS-1816	PSZS-2018
Mould Dimension		mm	1400*1200	1850*1600	2000*1800
Rear window dimensions		mm	1250*1050	1700*1450	1750*1650
Effective forming area		mm	1200*1000	1500*1250	1650*1450
Max Produce Size		mm	400	400	400
Steam	Pipe connect	DN	100	100	100
	Die connect	DN	40/6	40/8	40/8
	Pressure	kg/cm²	<5	<5	<5
	Consumption	kg/cycle	3-12	3-15	3-18
Air	Pipe connect	DN	80/2	80/2	80/4
Air	Pressure	kg/cm²	<4	<4	<4
Cooling Water	Pipe connect	DN	80	80	80
	Die connect	DN	25/2	25/3	25/3
	Pressure	kg/cm²	<3	<3	<3
	temperature	℃	45-55	45-55	45-55
Single Vacuum	Motor	KW	5	7.5	7.5
	Connect	DN	100	100	100
	Drain	DN	40	40	40
	Dain water	DN	25	25	25
Vacuum Center	Connect	DN	100	100	100
Drainage	Drain Outlet	Φ	159	159	159
Drainage	Mould Outlet	DN	40/3	40/4	40/4
Hydralic system	Motor	KW	7.5	11	11
	Pump	L/min	31/97	31/116	31/116
	Lock power	T	24	37	46
	Open-close cylinder	mm	100*2	125*2	140*2
	Demould cylinder	mm	50*2	50*2	50*2
Hopper	Volume	m³	0.3	0.4	0.4
	Motor	KW	1.5	2.2	2.2
	Material hole	Pieces	22	44	44
Electric Load		KW	16.5	20.7	20.7
Overall Dimension		mm	480033202800	480036003200
Weight		kg	7200	8000

Applications of EPS Box Foam Machine：

EPS foam Machine is widely used to make EPS foam fish box

EPS foam packages for transpotation

EPS ICF blocks for construction building

EPS foam decoration cornice ceilling,etc.

Packaging & Shipping :

Packing: standard exporting package

Shippingport: shanghai/Ningbo

Services:

1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.

2. Customizing machines according to clients’ inquiry , such as different design, different brand parts, different colors, more function,etc.

3. Engineers go to clients’ factory in time for installation , training and trial production .

4. Lifetime technical service support.

If you are interested in any of our products or would like any support from us about your

factory or any others, please feel free to contact us. We are looking forward to building long

well and friendly business relationships with clients from all over the world.

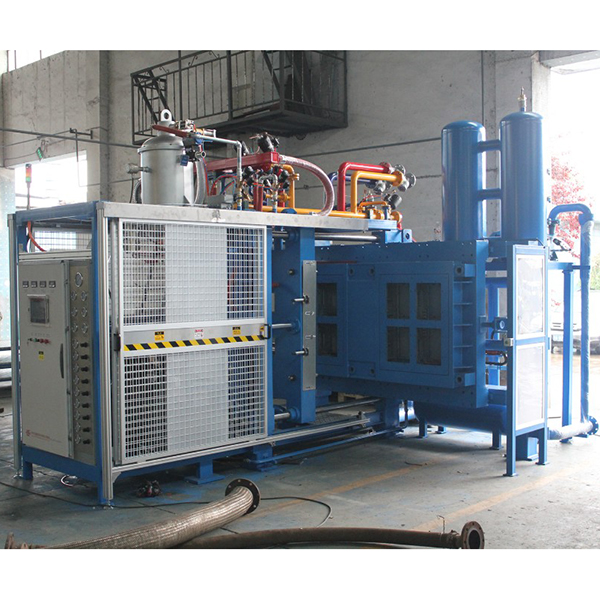

Product detail pictures:
