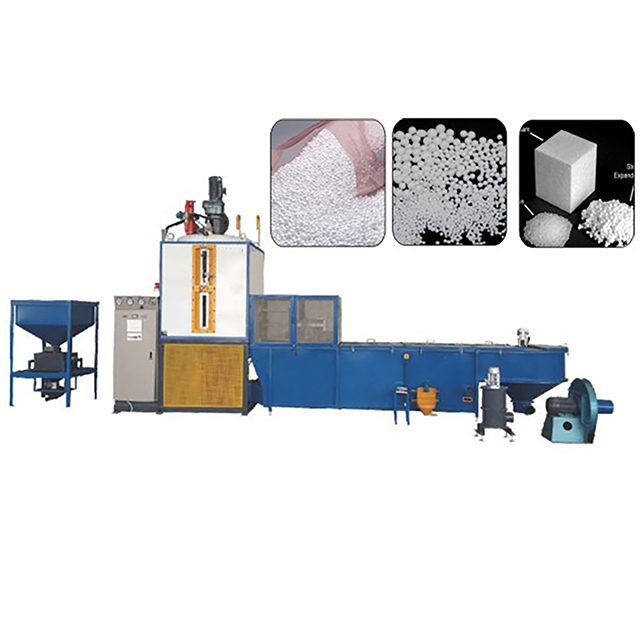

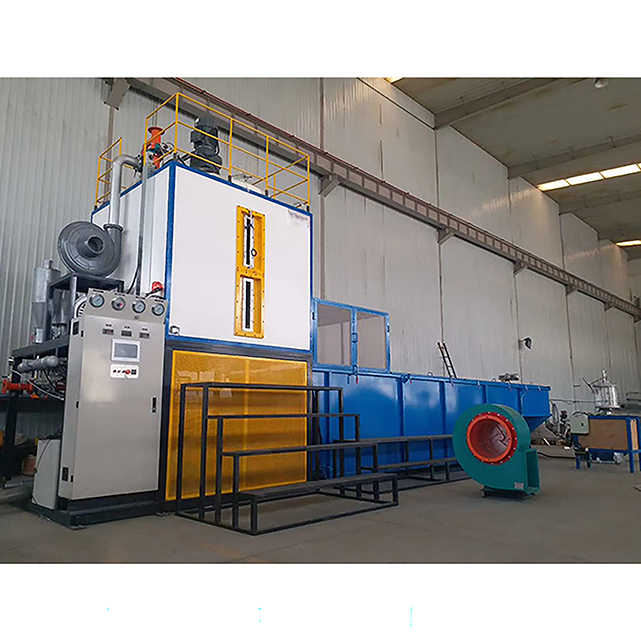

Wholesale Price Wholesale Eps Batch Preexpander - Continous Eps Preexpander Machine – WELLEPS Detail:

Main advantage

1. Fully automatic production.
2. Controlled by touch screen and PLC, easy to operate.
3. High output and save energy.
4. Exact density of foam beads.
5. Stable quality and less failure.

Main Features

1.Material weight measuring section takes special measuring controlling device and loading device,they are controlled by Touch Screen and PLC,the infeed amount can be controlled accurately,the tolerance can be the smallest（±0.05kg).

2.For the material level controlling,the machine takes vibration Induction controller Which is imported from Korea,it can feel the rising rate of the beads,keeps the Expanding density as the min. Rate(tolerance ±1% for 18-25g)
3.There is temperature controlling device in the pre-expanding vessel,it can control the temperature change into smallest level so that it can save the heat energy.

4.Steam-Water discharge device can avoid the solidification of the water and the lumping of the foam, thus it can reduce the water entrainment rate of the material.
5.When emergency accident happens (eg.power off or there are some serious problems with the machine), the steam valve can be automatically closed immediately,at the same time,the air can be infeed in the vessel automatically in case the material be lumped in the vessel.this can give double insurance for the product quality.
6.Friendly MML.Touch screen can automatically detect the default and send out alarm in order to inform the default position and repairing method,this will make maintenance more easy and quick.
7.The equipment can be operated easily.The operator can set feeding weight and other relevant parameters according to different material and their different density,and the setting can be saved freely, this can help the operator output directly during next cycle, this can improve the working efficiency as possible.
8.The heating base plate is made of high quality stainless steel and after precious laser cutting.During heating,the steam can pass through the base plate more smoothly and equivalently,this can make pre-expanding density more stable,the parcels will be more even,the steam exhaust can be reduced accordingly,this can save the material cost and the energy cost as much as possible.

Technical Data

Item	Type	SF600	SF1000	SF1200	SF1950	SF2200	SF2600	SF3000
Pipe Diameter	Steam	DN32	DN32	DN40	DN40	DN50	DN65	DN65
	Air	DN25	DN25	DN25	DN25	DN25	DN32	DN32
	Drain	DN80	DN80	DN80	DN80	DN80	DN100	DN100
	Vent	DN100	DN100	DN100	DN100	DN100	DN100	DN100
	Transfer	200mm	200mm	200mm	200mm	200mm	200mm	200mm
Diameter of Expanding Vessel(mm)		900	1100	1300	1500	1600	1800	2000
Volume of Expanding Vessel(m3)		0.5	1.10	1.53	3.13	5.27	6.16	6.82
Capacity of Feeding Vessel(kg)		50	50	75	75	75	100	120
Agitator Redducer Power(kw)Speed/(rpm)(1/30)		3	5.5	5.5	7.5	7.5	11	11
Agitator Redducer Power(kw)Speed/(rpm)(1/30)		57	57	57	57	57	57	57
Power of blowers	Feeding	4	5.5	5.5	7.5	7.5	7.5	7.5
	Heating	3	4	4	4	5.5	5.5	7.5
	pischarge	2.2	2.2	2.2	2.2	2.2	3.7	3.7
	Transfer	4	7.5	7.5	7.5	7.5	11	11
Brushing Power(kw)		0.75	0.75	0.75	0.75	0.75	1.5	1.5
(kw)General Power		18.5	27.5	27.5	31.5	32.5	42.5	42.5

CAPACITY(kg/h)

Density(g/l)	Type
Density(g/l)	SF6OO	SF1000	SF1200	SF1950	SF2200	SF2600	SF3000
12	210	360	430	700	700	930	1080
15	270	450	540	870	990	1180	1350
20	360	600	720	1170
25	450	750	900	1450
30	540	900	1080
35	630	1050	1260
40	720	1199	1440
45	810	1290
50	900	1500
