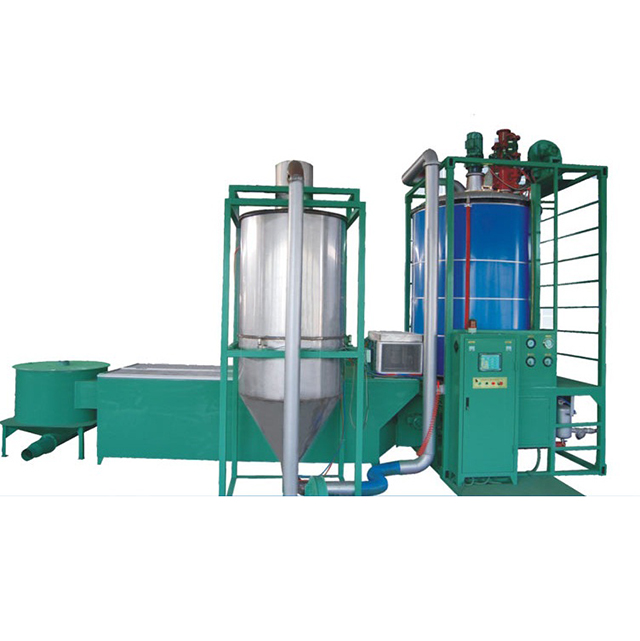

8 Year Exporter 1000x1200mm Epp Block Making Mould - SPY7090120 Continuous Pre-expander – WELLEPS Detail:

Main Features

1.Feeding, expander, filtrating, crushing, transport to silos automatically

2.With first and second expansion, the first time filling adopt frequency conversion feeding device, guarantee the stability of feeding

3.Uniform foaming, foam density range is 6-35g/l

4.Material barrel inside and outside, fluidized bed dryer made of stainless steel, in order to maintain the durable use and stable performance

5.Electrical protection device

6.Adopt Japanese reducing valve

Technical Data

Item		PSY70	PSY90	PSY120
Expansion Chamber	Diameter	φ700mm	φ900mm	φ1200mm
	Volume	0.6m³	1.2m³	2.2m³
	Useable Volume	0.4m³	0.8m³	1.5m³
Steam	Entry	DN20	DN25	DN50
	Consumption	80-100kg/h	100-150kg/h	150-200kg/h
	Pressue	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Compressed Air	Entry	DN15	DN20	DN20
Compressed Air	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Drainage	Condensate	φ20mm	φ20mm	φ20mm
Throughput	15g/l	100kg/h	150kg/h	250kg/h
	20g/l	120kg/h	200kg/h	300kg/h
	25g/l	150kg/h	250kg/h	410kg/h
	30g/l	200kg/h	300kg/h	500kg/h
Material Conveying Line		φ150mm	φ150mm	φ150mm
Power		8.93kW	9.73kW	14.83kW
Density	First expansion	12-30g/l	12-30g/l	14-30g/l
Density	Second expansion	8-11g/l	8-11g/l	8-13g/l
Outside Dimensions	L×W×H	4700×2660×2600mm	4700×2930×32000mm	4905×4655×3250mm
Weight		1300kg	1500kg	1800kg
Room Height Required		3000mm	3000mm	3000mm
