Automatic EPS Block Molding Machine With Air Cooling

1. Machine with strong structure.
2. Use PLC and touch screen control, run automatically.
3. Include strong hopper.
4. Use different operate language, more easy to operate for workers.
5. Use automatic convey and weight system.
6. Use good quality parts.
7. Suitable to make both low density products.


Product Detail

FAQ

Product Tags

Main Features

1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.

2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.

4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.

5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.

6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.

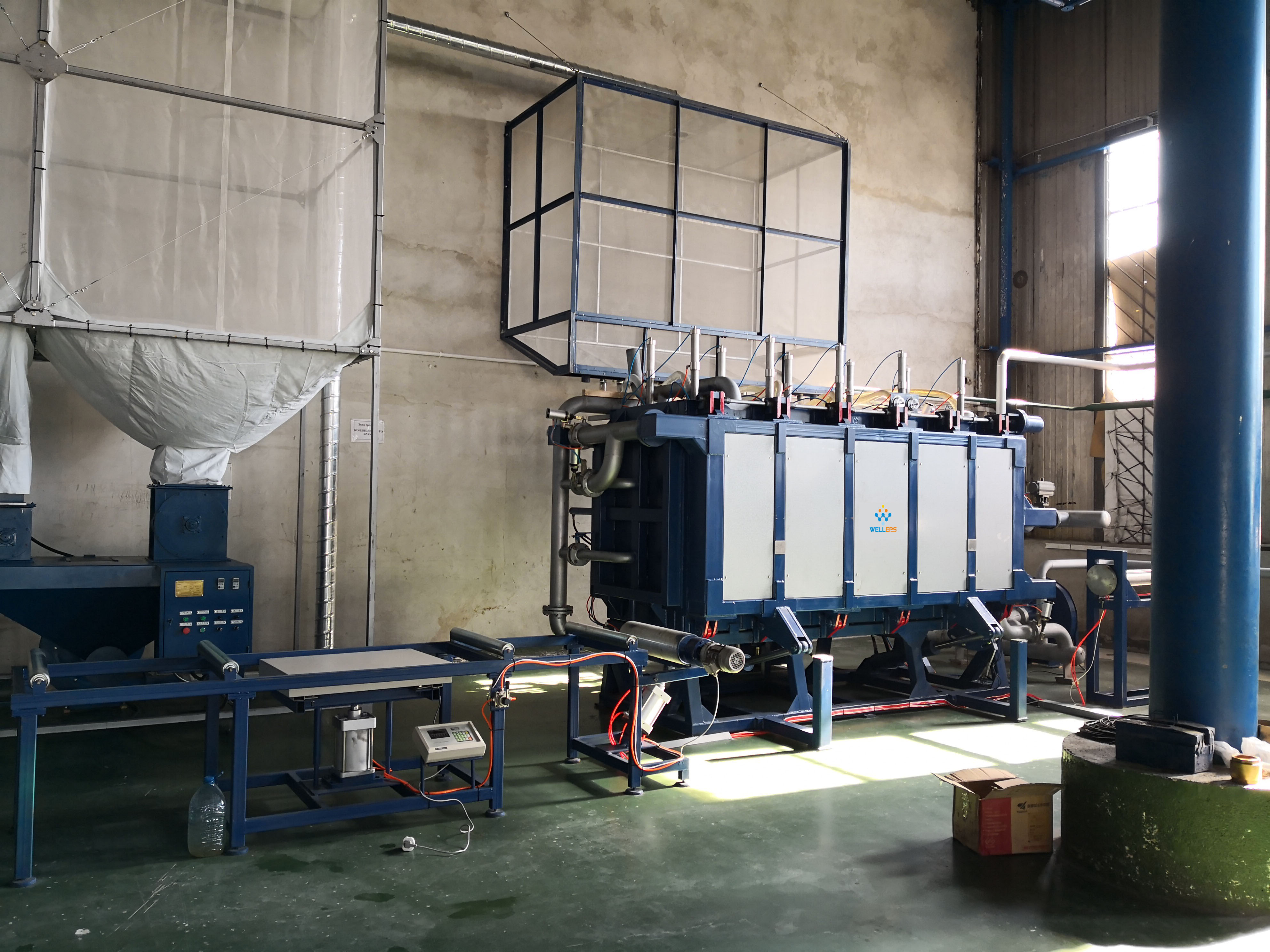

block molding machine

Technical Data

Item




Type
PSB200F
PSB300F
PSB400F
PSB600F
Mould Cavity Size
mm
2040*1240*580
3060*1240*630
4080*1240*630
6080*1240*630
Block Size
mm
2000*1000*560
3000*1200*600
4000*1200*630
6000*1200*600
Steam
Entry
DN80
DN80
DN100
DN150
Consumption
18-25kg/cycle
25-35kg/cycle
40-50kg/cycle
55-65kg/cycle
Pressure
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
Compressed Air
Entry
DN40
DN40
DN50
DN50
Consumption
1-1.2m3/cycle
1.2-1.6m3/cycle
1.6-2m3/cycle
2-2.2m3/cycle
Pressure
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
Drainage
Vacuum drain
















Steam vent
Φ100mm
Φ150mm
Φ150mm
Φ150mm
Condensate
















Blower outlet
Φ125mm
Φ125mm
Φ150mm
Φ150mm
Throughput
15kg/m3
5-12min/cycle
6-15min/cycle
7-18min/cycle
8-18min/cycle
Power




7Kw
8Kw
9.5Kw
9.5Kw
Overall Dimension
L*W*H
3800*2000*2100
5100*2300*2100
6100*2300*2200
8200*2500*3100
Weight




3500kg
5000kg
6500kg
9000kg
Room Height Required




6000mm
6000mm
6000mm
6000mm

Products

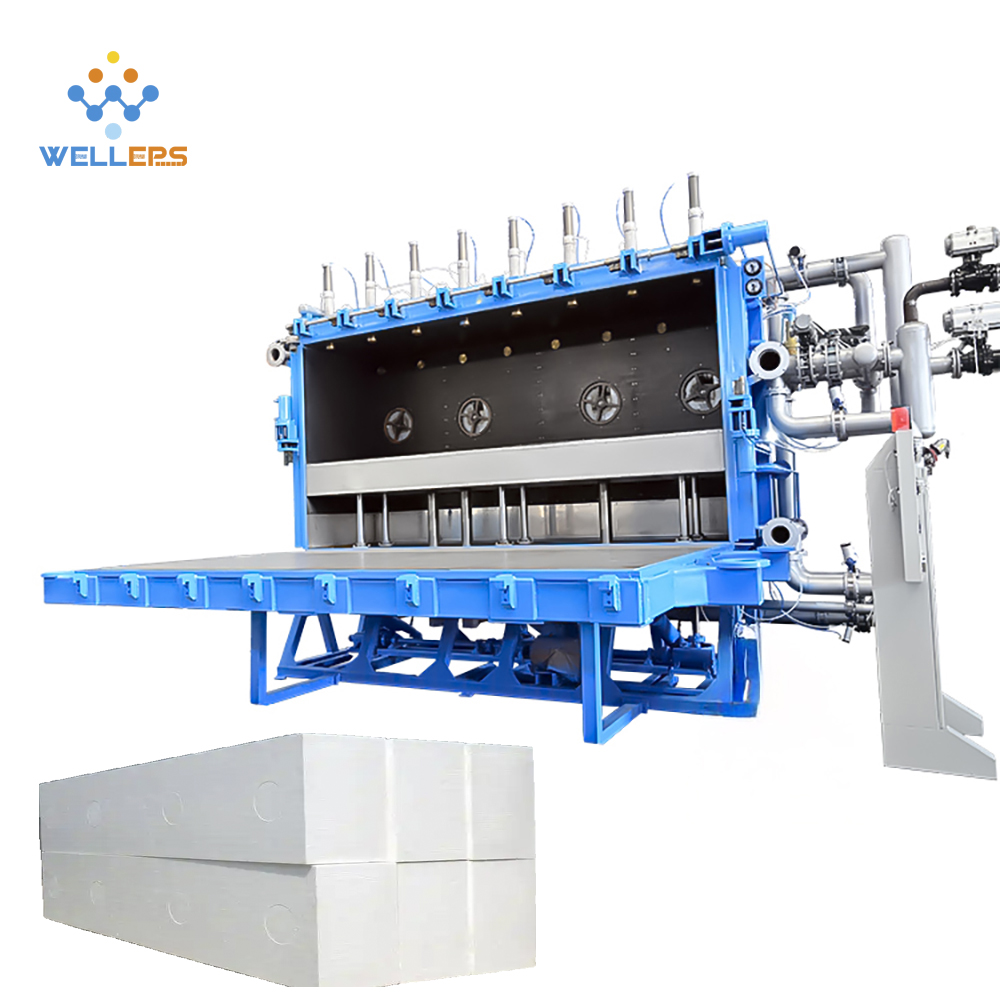

block molding machine

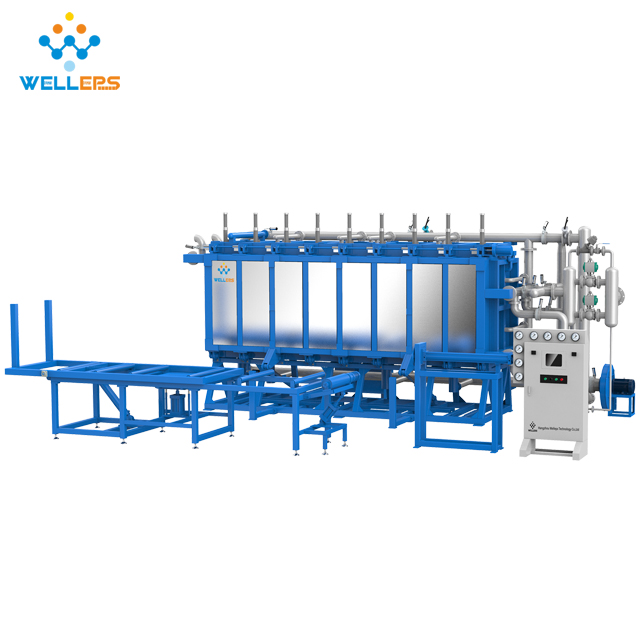

block molding machine

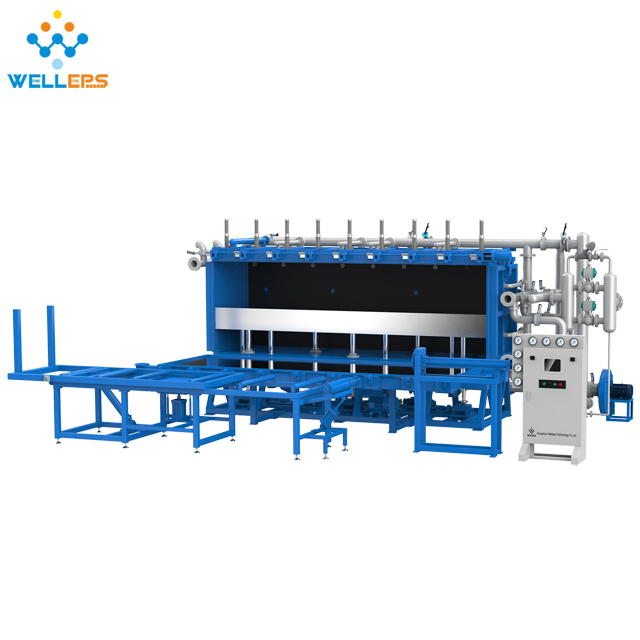

block molding machine
block molding machine
