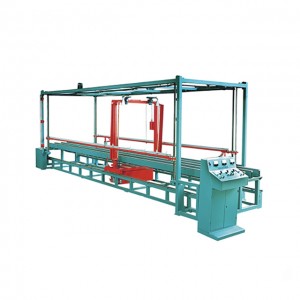

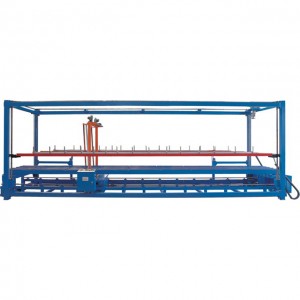

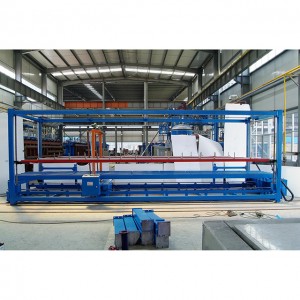

SPC200C-800C Automatic EPS 3D Polystyrene Foam Cutter
Main Features
1.The main frame of this machine is welded from square profile steel with strong structure,high strength and no deformation.
2.Variable frequency stepless speed regulation, Guide rail drive to smooth cutting of products.
3.cutting machine can do horizontal and vertical cutting. Multiple wires can be set at one time for cutting to increase cutting efficiency.
4.Applies large power transformer, which promote the speed of cutting and lengthen service life.
5.Cutting speed range 0-2m/min
6. Machine size from 2m to 8m, or can design according customer's requirement.
Technical Data
| Item | Type | ||||
| Unit | SPC200C | SPC400C | SPC600C | SPC800C | |
| Max Block Size | mm | 2000*1300*1300 | 4000*1300*1300 | 6000*1300*1300 | 8000*1300*1300 |
| Working Speed | 0~2m/min | 0~2m/min | 0~2m/min | 0~2m/min | |
| Power | Kw | 22.3 | 22.3 | 22.3 | 22.3 |
| Overall Dimension | mm | 4400*2600*3250 | 6400*2600*3250 | 8400*2600*3250 | 10400*2600*3250 |
| Weight | kg | 1300 | 2000 | 2800 | 3200 |
