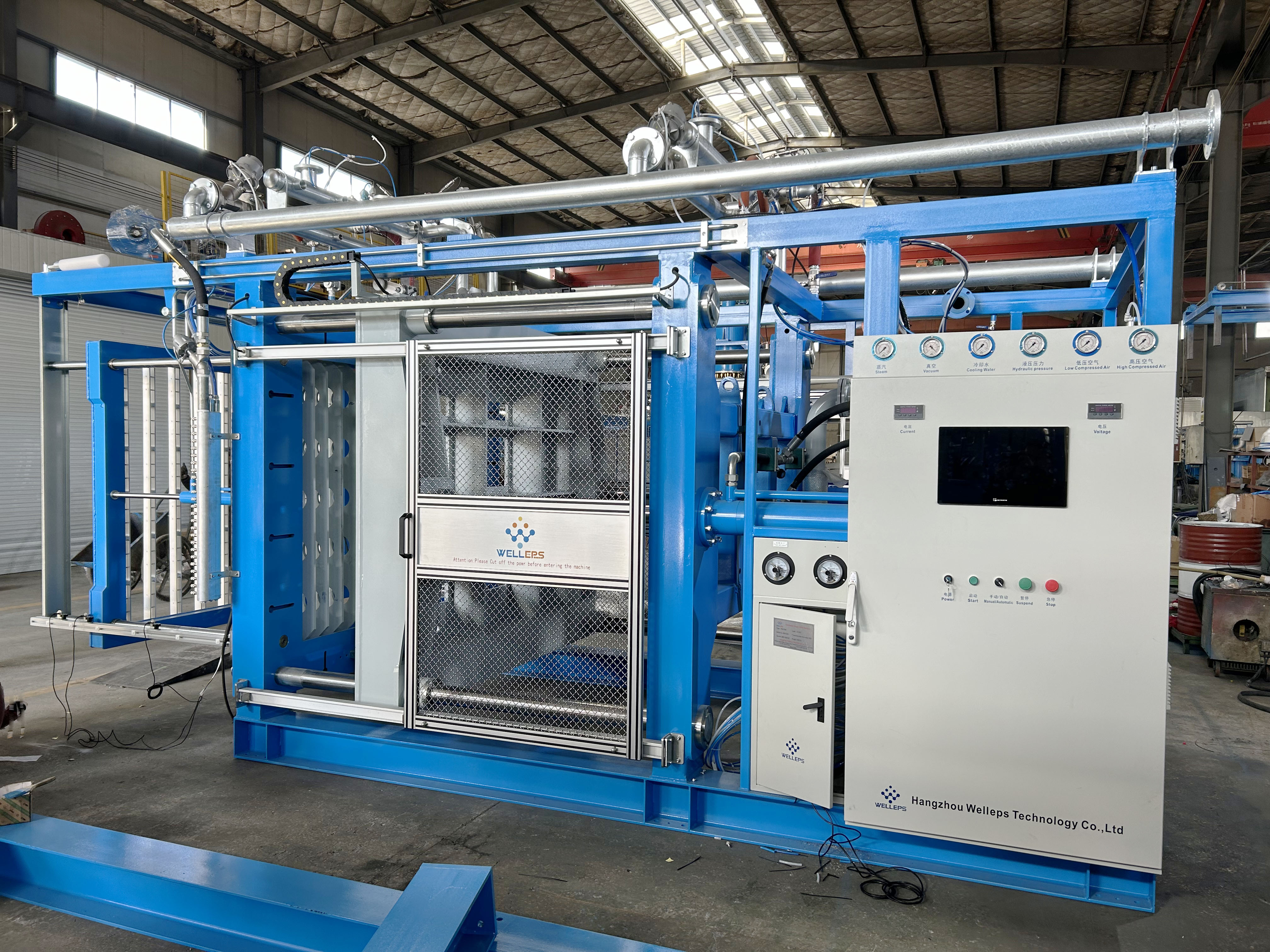

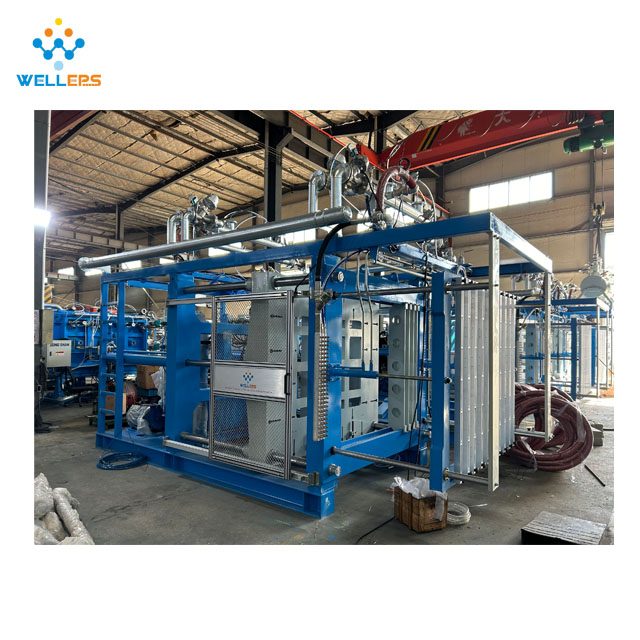

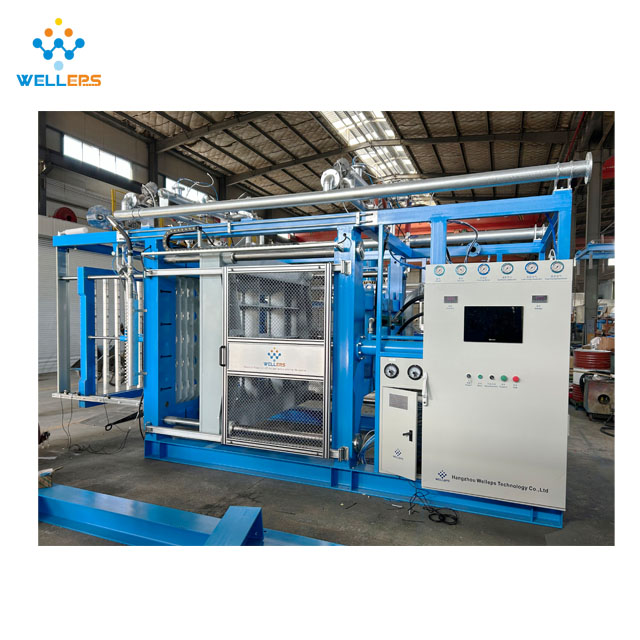

PSZ100T Automatic Eps Styrofoam Mold Making Machine

1. Machine with strong structure.
2. Use PLC and touch screen control, run automatically.
3. High efficient vacuum to make good quality products.
4. Use different operate language, more easy to operate for workers.
5. Two vertical hopper for filling material faster.
6. Use good quality parts.


Product Detail

FAQ

Product Tags

Main Advantage

Fully automatic EPS foaming mold making machine products are widely used in industries such as vegetables and fish boxes, electrical parts packaging, wall and roof insulation, and house decoration.

1. Machine with strong structure.
2. Use PLC and touch screen control, run automatically.
3. High efficient vacuum to make good quality products.
4. Use different operate language, more easy to operate for workers.
5. Two vertical hopper for filling material faster.
6. Use good quality parts.

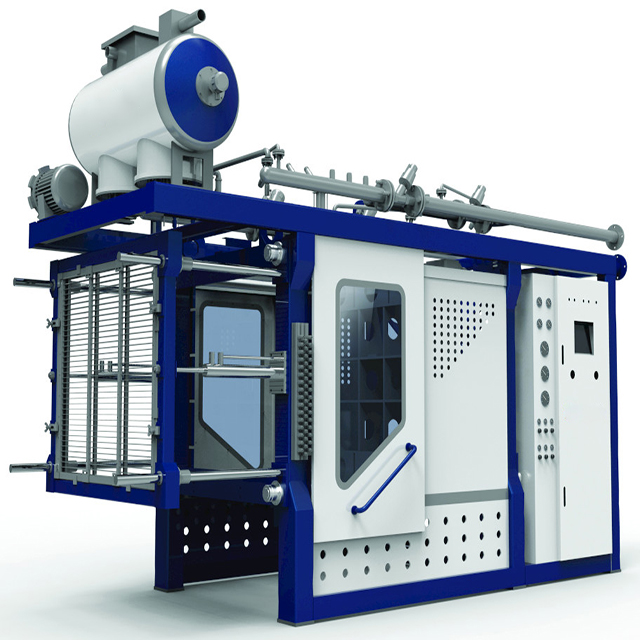

a-eps shape molding machine- (3)
a-eps shape molding machine

Machine Introduction

To accommodate with different sized product,  the machine has a variety of templates, the smallest size is about 600×800 mm. The maximum size can reach 1200 × 1400 mm.This machine is equipped with two-step hydraulic system, compressed feeding system, and central energy system, relief damper, holding-pressure water tank, condensation system, computer-controlled system, digital process control system and steam room.

The vacuum system is equipped with the Liquid Ring Vacuum pump and condenser which provides more efficient vacuity. Without any extra drying step, we can speed up the injection under this vacuum system. The mold ejection is easy to be completed and also save the more energy.

The adjustment of energy pressure is very important. Under higher steam pressure, the production time will be prolonged and consume more energy. However, the final product might be deformed and the surface appearance of the product might be affected when the pressure is too low. The relief damper functions when releasing mold and heating up the mold. The compressed air is used for filling and this damper will reduce the consumption of energy and provide high quality product.

This machine has one full set of central energy system which is produced by our company All steam and air which are needed during the injection process are controlled by the central energy system valve. This system will provide even air intake and can be adjusted easier. This low-pressure steam system is designed with enlarged pipes and valves which can provide best working condition.

eps shape molding machine-8
eps machine

Technical Data

Item  PSZ100T PSZ140T PSZ175T
Mould Dimension  1000*800 1400*1200 1750*1450
Max Product Dimension  850*650*330 1220*1050*330 1550*1250*330
Stroke  210-1360mm 270-1420mm 270-1420mm
Steam Entry DN65 DN80 DN80
Consumption (12-15T)Steam of 1T material
Cooling Water Entry DN65 DN65 DN65
Consumption 45-130kg/cycle 50-140kg/cycle 55-190kg/cycle
Compressed Air Entry DN40 DN40 DN50
Consumption 1.3m3/cycle 1.4m3/cycle 1.5m3/cycle
Vacuum Pump Capacity  165m3/h 250m3/h 280m3/h
Power kw 11kw 14.5kw 16.5kw
Overall Dimension L*W*H (mm) 4500*1640*2700 4600*2140*3100 5000*2450*3500
Weight kg 4100 4900 6000
Cycle Time s 60-90s 60-150s 100-180s
Note:We can make Automatic Eps Styrofoam Mold Making Machine according to customer requirement.

Applications

Eps Decoration Product
Eps Decoration Product-1
Eps Decoration Product-2
Eps Decoration Product-3
