EPP Vacuum System Car Bumper Shape Moulding Machine

EPP Vacuum System Shape Moulding Machine is used to produce all kinds of valuables EPP packaging (such as notebook computers, liquid crystal displays, precision instruments), EPP toys (airplane models), EPP high-end car parts (EPP bumper, EPP toolbox, EPP sunshade etc.), EPP sporting goods (Surfboard, helmet, etc.)


Product Detail

FAQ

Product Tags

product description

Processing Type:    Foaming Machine
Machine Type:    EPP
Voltage:    380V
Dimension(L*W*H):    5000*2300*3400
Power (kW):    16.5
Weight (KG):    5700 KG
Warranty:    1 Year
Applicable Industries:   Building Material Shops, Manufacturing Plant, Construction works
Core Components:    Motor, Pump, PLC
Product Name:    EPP Foam Shaping Machine
Application area:    Package,EPP toys,EPP high-end car parts
Certification:   CE

 EPP Vacuum System Shape Moulding Machine is used to produce all kinds of valuables EPP packaging (such as notebook computers, liquid crystal displays, precision instruments), EPP toys (airplane models), EPP high-end car parts (EPP bumper, EPP toolbox, EPP sunshade etc.), EPP sporting goods (Surfboard, helmet, etc.)

Main Features

1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting processing, to ensure the machne have strong structure, not get rust and increae the machine's working life.
2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole production process is working automatically.
3.Machine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.
4.Machine with wacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the moisture content of products, so that products moisture content of 8% or even less.
5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting.
6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mouled even, low noise and energy saving,etc.

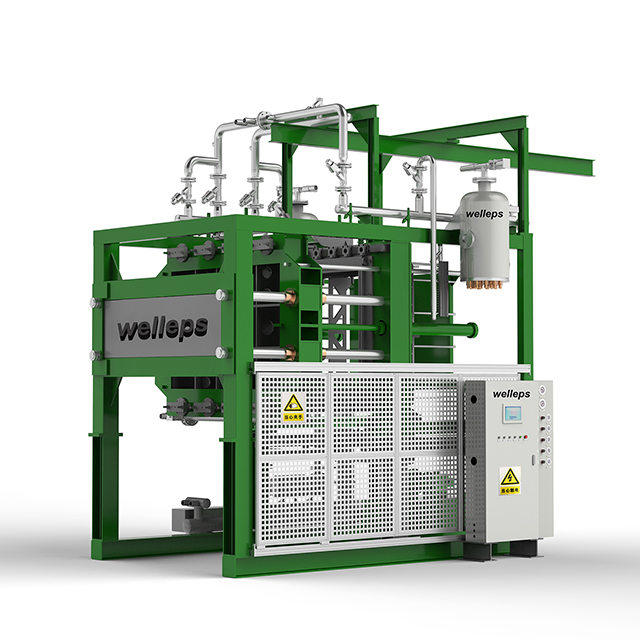

a-eps foam machine-9.png

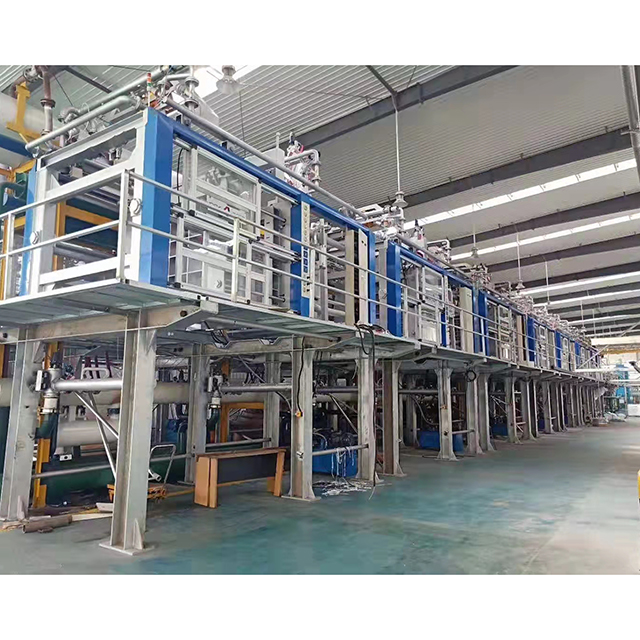

eps foam machine-8

Technical Data

Item  PSZ100T PSZ120T PSZ160T PSZ175T
Mould Dimension  1000*800 1200*1000 1600*1350 1750*1450
Max Product Dimension  850*650*330 1050*850*330 1420*1200*330 1550*1250*330
Stroke  210-1360mm 210-1360mm 270-1420mm 270-1420mm
Steam Entry DN65 DN65 DN80 DN80
Consumption (12-15T)Steam of 1T material
Cooling Water Entry DN65 DN65 DN65 DN65
Consumption 45-130kg/cycle 45-130kg/cycle 50-140kg/cycle 55-190kg/cycle
Compressed Air Entry DN40 DN40 DN50 DN50
Consumption 1.3m3/cycle 1.3m3/cycle 1.4m3/cycle 1.5m3/cycle
Vacuum Pump Capacity   165m3/h 165m3/h 280m3/h 280m3/h
Power kw 11kw 11kw 16.5kw 16.5kw
Overall Dimension L*W*H (mm) 4500*1640*2700 4500*1840*2900 5000*2300*3400 5000*2450

*3500

Weight kg 4100 4600 5700 6000
Cycle Time s 60-90s 60-100s 100-180s 100-180s
Note:We can make EPP car bumper shape moulding machine according to customer requirement.
