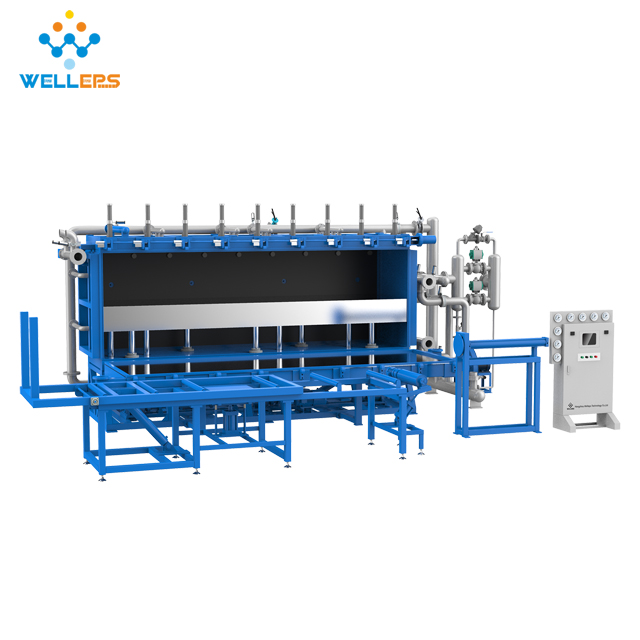

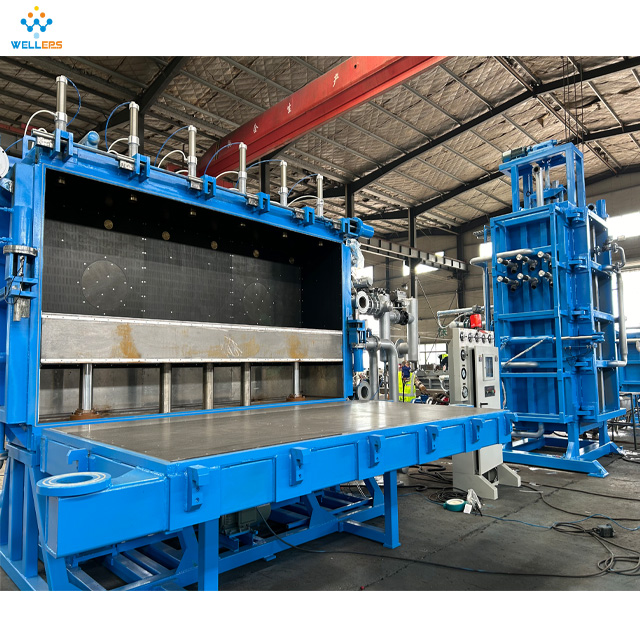

EPS Polystyrene Foam panels Vacuum Forming Machine
Main Features
1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.
2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.
3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.
4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.
5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.
6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.
Features of EPS Polystyrene Foam panels Vacuum Forming Machine
High Precision and Efficiency
Incorporates cutting-edge technology to provide accurate and rapid molding, reducing
material waste and increasing production capacity.
CE Certified for Quality and Safety
CE Certified for Quality and Safety
This machine meets international safety and quality standards, providing peace of
mind and reliable operation in any production environment.
Customizable Moulding Options
Customizable Moulding Options
Supports a wide range of mould sizes and shapes, catering to diverse market
needs and enabling flexibility in production.
User-Friendly Operation
User-Friendly Operation
Equipped with an intuitive control system for easy operation and quick training,
minimizing downtime and optimizing workflow efficiency.
Durable Construction
Durable Construction
Built with high-quality materials and components to ensure longevity, even under
heavy-duty usage, reducing maintenance costs and downtime.
Steam Valves: Control steam flow to the mold.
Safety Valves: Protect the system from overpressure. Pressure Regulators: Maintain consistent steam pressure.
Steam Piping: Distributes steam to the mold cavity.
PLC (Programmable Logic Controller): Controls the machine’s operations.
Sensors: Monitor temperature, pressure, and other parameters.
HMI (Human-Machine Interface): Operator interface for monitoring and control.
Technical Data
| Item | PSB200TZ | PSB300TZ | PSB400TZ | PSB600TZ | |
| Mould Cavity Size | mm | 2050*1240-940*1030 | 3060*1240-940*1030 | 4080*1240-940*1030 | 6100*1240-940*1030 |
| Block Size | mm | 2000*1200-900*1000 | 3000*1200-900*1000 | 4000*1200-900*1000 | 6000*1200-900*1000 |
| Steam | ENTRY | DN150 | DN150 | DN150 | DN200 |
| Consumption | 25-45kg/cycle | 45-65kg/cycle | 60-85kg/cycle | 95-120kg/cycle | |
| Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | |
| Compressed Air | Entry | DN40 | DN40 | DN50 | DN65 |
| Consumption | 1.5-2m³/cycle | 1.8-2.2m³/cycle | 2-2.5m³/cycle | 2-2.3m³/cycle | |
| Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | |
| Vacuum Cooling Water | Entry | DN40 | DN40 | DN40 | DN40 |
| Consumption | 0.2-0.4m³/cycle | 0.4-0.6m³/cycle | 0.6-0.8m³/cycle | 0.8-1m³/cycle | |
| Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | |
| Drainage | Vacuum drain | φ100mm | φ125mm | φ125mm | φ125mm |
| Steam vent | φ100mm | φ100mm | φ200mm | φ200mm | |
| Condensate | φ150mm | φ150mm | φ150mm | φ150mm | |
| Blower outlet | φ100mm | φ100mm | φ150mm | φ150mm | |
| Throughpt | 15kg/m3 | 4min/cycle | 6min/cycle | 7min/cycle | 8min/cycle |
| Power | 23.75Kw | 24.75Kw | 28.5Kw | 37.5Kw | |
| Overall Dimension | L*W*H | 5700*4000*3300 | 7200*4500*3500 | 11000*4500*3500 | 12600*4500*3500 |
| Weight | 8000kg | 9500kg | 15000kg | 18000kg | |
| Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm |
Products
Applications of EPS Polystyrene Foam panels Vacuum Forming Machine

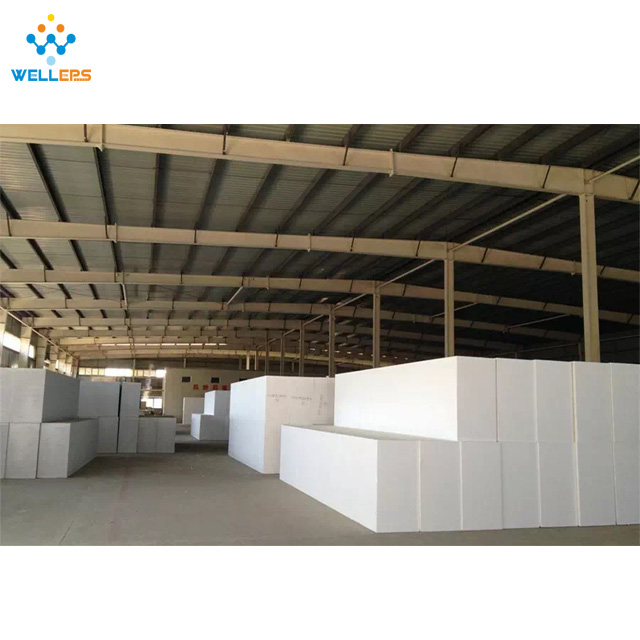

EPS Polystyrene Foam panels Vacuum Forming Machine are primarily used to produce lightweight EPS blocks, boards, and panels. These materials have a wide range of applications across various industries.
Construction:
* Sandwich panels for walls and roofs
* Insulation boards for underfloor heating
* Decorative panels
Insulation:
* Building insulation: walls, roofs, floors
* 3D sandwich panels
