Factory For Screw Compressor - ICF machine for building insulation – WELLEPS Detail:

Main Features

1. Use proportional steam valve for save steam and heat accurately.

2. Can install the filling guns and ejectors on the ground, can save time to install moulds.

3. Special designed hopper can control the material filling more accurately to ensure make good quality products.

4. Use stainless steel oil pipes to keep machine running stable and not leak oil.

5. Lock moulds same as Germany machine, can keep high pressure in the moulds.

6. All pipe and mould plate coated with zinc, to ensure the machine not easy to get rust and long time running with the steam and water.

Technical Data

Item   PSZS-1412 PSZS-1816 PSZS-2018
Mould Dimension mm 1400*1200 1850*1600 2000*1800
Rear window dimensions mm 1250*1050 1700*1450 1750*1650
Effective forming area mm 1200*1000 1500*1250 1650*1450
Max Produce Size mm 400 400 400
Steam Pipe connect DN 100 100 100
Die connect DN 40/6 40/8 40/8
Pressure kg/cm² <5 <5 <5
Consumption kg/cycle 3-12 3-15 3-18
Air Pipe connect DN 80/2 80/2 80/4
Pressure kg/cm² <4 <4 <4
Cooling Water Pipe connect DN 80 80 80
Die connect DN 25/2 25/3 25/3
Pressure kg/cm² <3 <3 <3
temperature ℃ 45-55 45-55 45-55
Single Vacuum Motor KW 5 7.5 7.5
Connect DN 100 100 100
Drain DN 40 40 40
Dain water DN 25 25 25
Vacuum Center Connect DN 100 100 100
Drainage Drain Outlet Φ 159 159 159
Mould Outlet DN 40/3 40/4 40/4
Hydralic system Motor KW 7.5 11 11
Pump L/min 31/97 31/116 31/116
Lock power T 24 37 46
Open-close cylinder mm 100*2 125*2 140*2
Demould cylinder mm 50*2 50*2 50*2
Hopper Volume m³ 0.3 0.4 0.4
Motor KW 1.5 2.2 2.2
Material hole Pieces 22 44 44
Electric Load KW 16.5 20.7 20.7
Overall Dimension mm 4800*3320*2800 4800*3600*3200
Weight kg 7200 8000

Products

Product detail pictures:

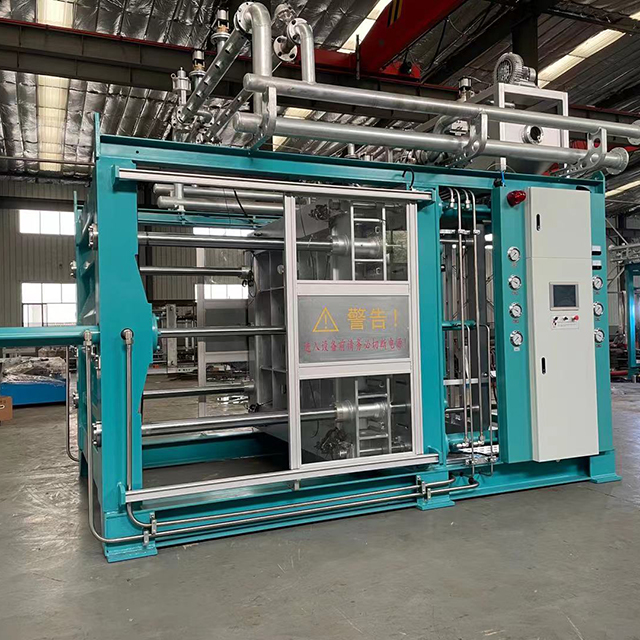

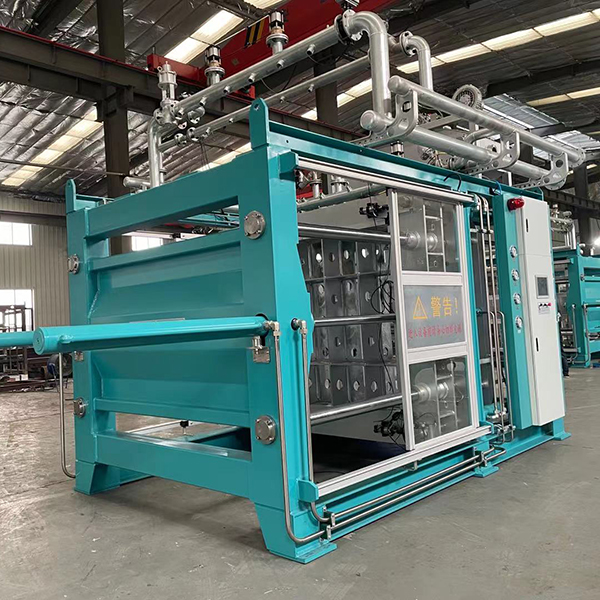

Factory For Screw Compressor - ICF machine for building insulation – WELLEPS detail pictures
