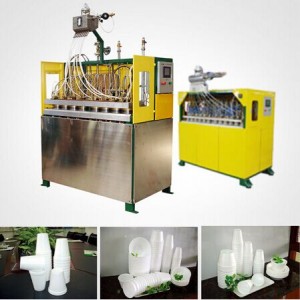

Full Automatic EPS styrofoam ice cream boxes moulding machine
Products Introduction

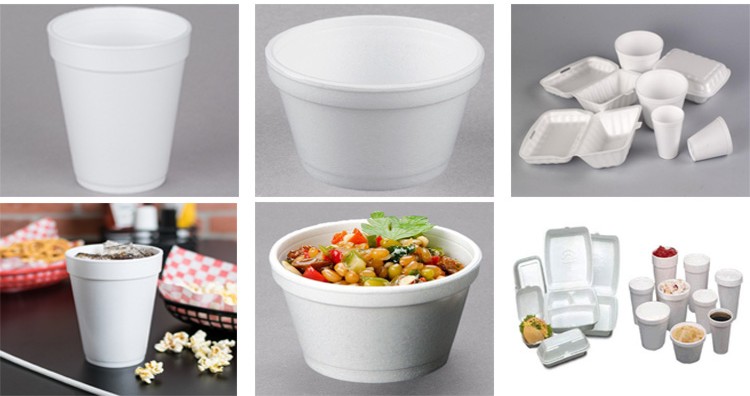

1. EPS styrofoam ice cream boxes moulding machine is widely applied in producing large amount of hot coffee cup, hot tea cup, hot soup blow,noodle tub and other food and beverage packing .
2. Light weight, good rigidity and well heat isolation.
3. The machine holds many merits such as high foaming times, high producing efficiency, low steam consumption, low cost and different model products are made at same time.
4. Pipes and tubes of the transferring system are all made from stainless material so that they resist eroding and easy to be cleaned.
5. Pre-expand and forming procedures are all operated by automatic controller, the mechanical and electrical device or apparatuses are all from international famous brand.
Technical Data
| Forming Capacity | Second/mould | 7-15s |
| Foam Cup/Bowl Size | OZ | 6-32 |
| Power Consumption | kw/h | ≤0.3 |
| Steam Pressure | MPa | 0.6-0.9 |
| Cooling Water Pressure | MPa | 0.4-0.5 |
| Air Pressure | MPa | 0.6-0.9 |
| Machine Overall Size (L*W) | mm | 1300*500 |
Production Process
Mixing Raw Material→Pre-expand→drying→vibrating→storage→injecting Forming
Step 1. Mix the EPS resin and the additive according to the given proportion.
Step 2. Put mixed material into Pre-foaming Machine along with water steam to expand the resin.
Step 3. Vibrate the pre-foamed material and store for several hours.
Step 4. Form EPS cups/bowls.
Step 5. Pack the EPS cups with plastic packaging bags.
