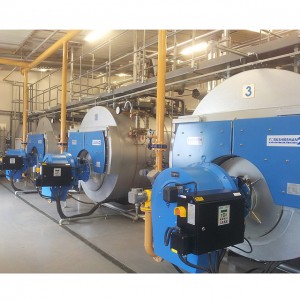

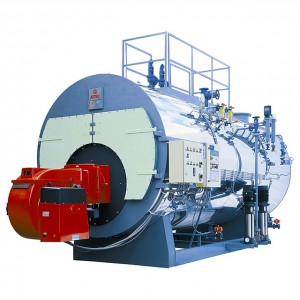

Automatic 1- 20 Ton Industrial Oil Gas Fired Steam Boiler

Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 85%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.


Product Detail

FAQ

Product Tags

product description

Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 85%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality .

With full waveform furnace, with good thermal stretchable; full pull side butt welding technology, reducing the furnace temperature stress; tube and tube plate connected by welding form after the first expansion, eliminate corrosion problems, extend the life of the boiler; threaded pipe heat exchanger, to improve the heat transfer coefficient of the boiler.

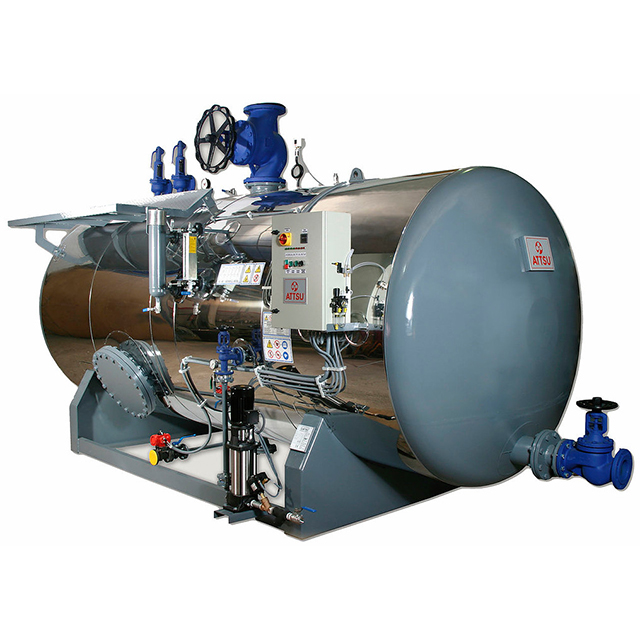

Steam Boiler-2

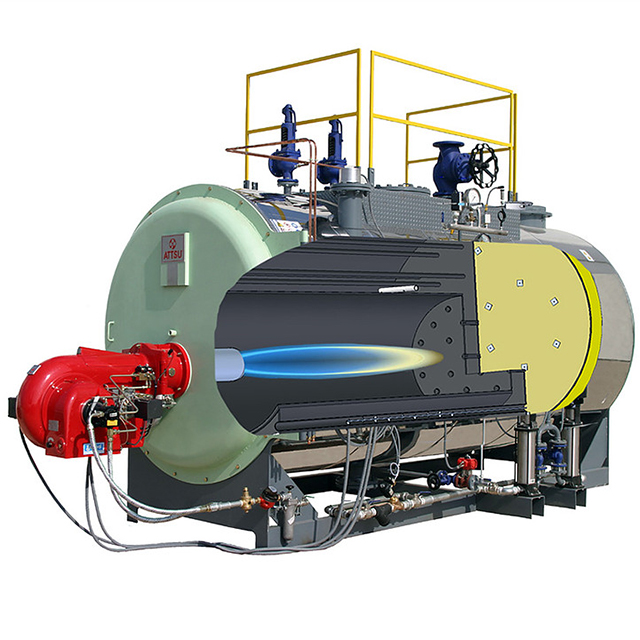

Steam Boiler-8

Main Features

Advanced steam boiler automatic controller, the whole LCD screen, man-machine interface, users only need to easily set up, according to user requirements boiler that is able to start and stop, load adjustment, automatic water supply, such as automatic operation. Boiler fully functional, complete protection, simple operation, safe and reliable, has a self-diagnostic function. Abnormal combustion is automatically interrupted, audible alarm in the event of boiler operation.

1.Easy installation
2.High efficiency: Adopted positive pressure combustion, the combustion efficiency has been greatly improved.
3.Eco-friendly: The furnace chamber is sized to match the combustion flame, which creates a high thermal efficiency.
4.Safe: The furnace chamber adopts double dense row coils with sufficient arrangement of heating surface to reduce the heat load on the surface of the tubes, which makes the heat-conducting oil safer to use.
5.Low occupation: The boiler structure is compacted, which greatly saves the floor space of the boiler room

Technical Data

Model
Unit
WNS1
WNS2
WNS4
WNS6
WNS8
WNS10
WNS15
WNS
20
rated steam output
t/h
1
2
4
6
8
10
15
20
Rated working pressure
MPa
1.0/1.25/1.6/2.5
Rated steam temperature
184/194/204/226
Feed water temperature
20/104
Thermal efficiency
%
>98%
Fuel type

Light diesel oil/heavy oil/Natural gas/Liquefied gas/City gas
Fuel consumption
Light diesel oil
64.6
129.3
258.2
388.6
514.6
641.7
960.1
1276.2
Natural gas
70.1
140.3
283.4
424.2
566.3
707.8
1061.7
1415.8
Max transportation weight
T
5.5
8
11.6
17.5
22.5
26.8
35.2
45.5
