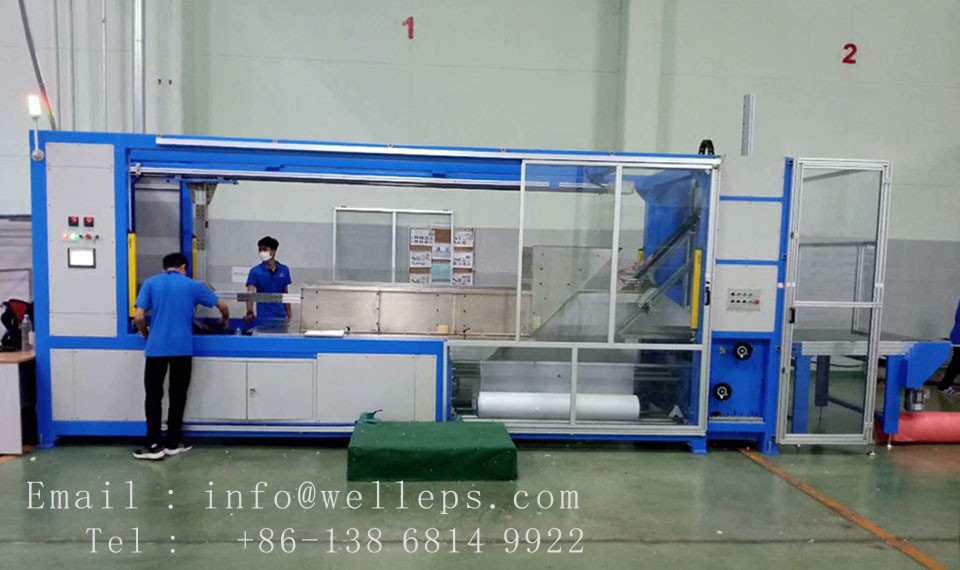

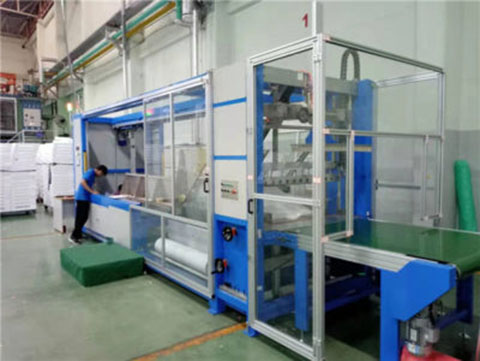

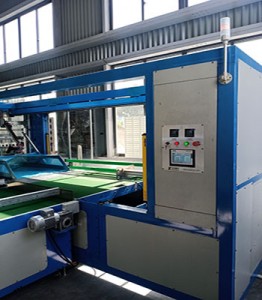

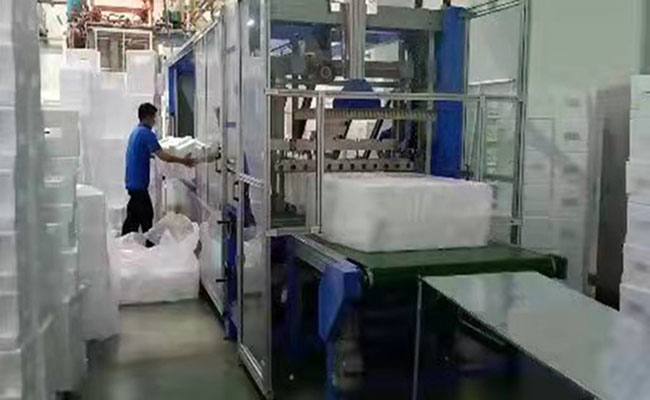

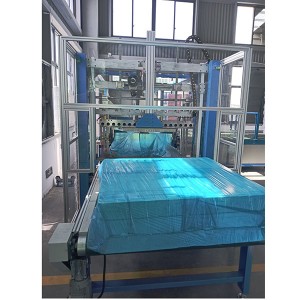

6 side packing automatic EPS foam box packing machine
Main Features
1 It is used to pack EPS shaping product. It is fast packing and saves film.
2 The machine is suitable for various kind of dimensions.
3 It is protected by fences and raster, to insure safety.
4 It is full automatic, controlled by Siemens PLC and touch screen.
5 Frequently-used specification can be record and easy to load.
6 Equipped with malfunction warning system, easy to remove problem.
Technical Data
| Type | SPM-3560 | SPM-5080 | SPM-6090 |
| Length (mm) | 2,000 | 2,000 | 2,000 |
| Width (mm) | 350-600 | 500-800 | 600-900 |
| Leight (mm) | 300-600 | 300-600 | 300-600 |
| Speed(Second/Package) | 12-14 | 15-16 | 17-18 |
| Power(KW) | 4.5 | 4.5 | 4.5 |
| Overall size (mm) | 8,300X1,800X2,500 | 8,300X2,000X2,500 | 8,300X2,200X2,500 |
6 Side EPS Packaging Machine for Foam as known as 6 sides bagging system for foam products.
It has an adjustable frame for both width and height, which is suitable for the packaging of various sizes of EPS foam products.

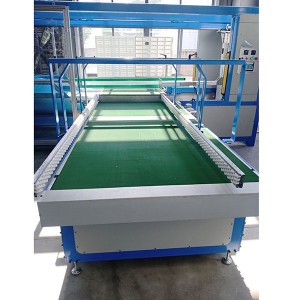

Conveyor
1) Structure of the conveyor will protect the surface of the product.
2) Automatic infeed conveyor system and outfeed conveyor system.
3) Conveyors driven by motor with gear box.
4) Diferent type conveyors available via package
Application
