Automatic EPS Packing Machine With Six sides

The machine adopts PLC programmable industrial controller and computer touch screen to complete the automatic cycle process of pushing, winding, packaging, sealing and cutting of the product to the working position
The machine has stable performance, simple operation, no noise and low power consumption;
The machine can be matched with various EPS products and equipment, packaging various specifications of EPS products


Product Detail

FAQ

Product Tags

Products Introduction

The machine adopts PLC programmable industrial controller and computer touch screen to complete the automatic cycle process of pushing, winding, packaging, sealing and cutting of the product to the working position

The machine has stable performance, simple operation, no noise and low power consumption;

The machine can be matched with various EPS products and equipment, packaging various specifications of EPS products

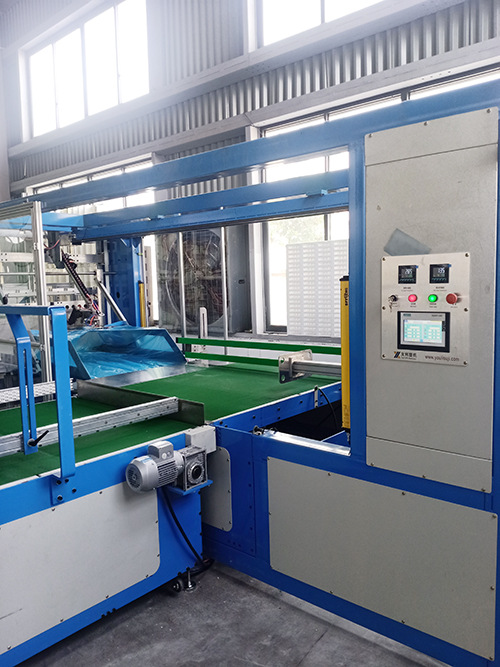

eps packing machine-10

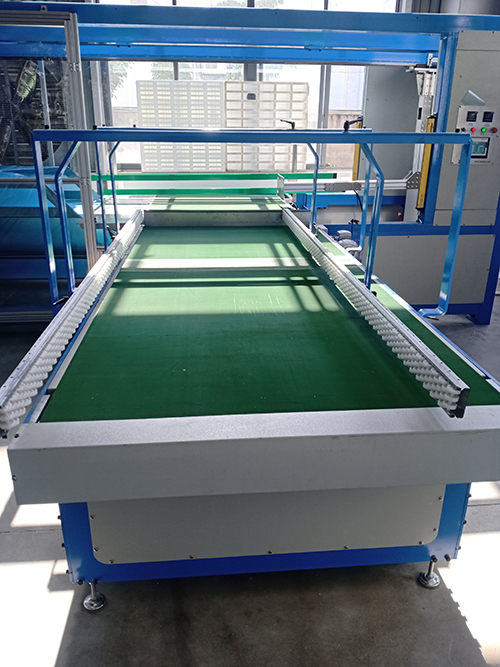

eps packing machine-9

Main Advantage

1 It is used to pack EPS shaping product. It is fast packing and saves film.

2 The machine is suitable for various kind of dimensions.

3 It is protected by fences and raster, to insure safety.

4 It is full automatic, controlled by Siemens PLC and touch screen.

5 Frequently-used specification can be record and easy to load.

6 Equipped with malfunction warning system, easy to remove problem.

Technical Data

Type SPM-3560 SPM-5080 SPM-6090
Length (mm) 2,000 2,000 2,000
Width (mm) 350-600 500-800 600-900
Leight (mm) 300-600 300-600 300-600
Speed(Second/Package) 12-14 15-16 17-18
Power(KW) 4.5 4.5 4.5
Overall size (mm) 8,300X1,800X2,500 8,300X2,000X2,500 8,300X2,200X2,500

Applications

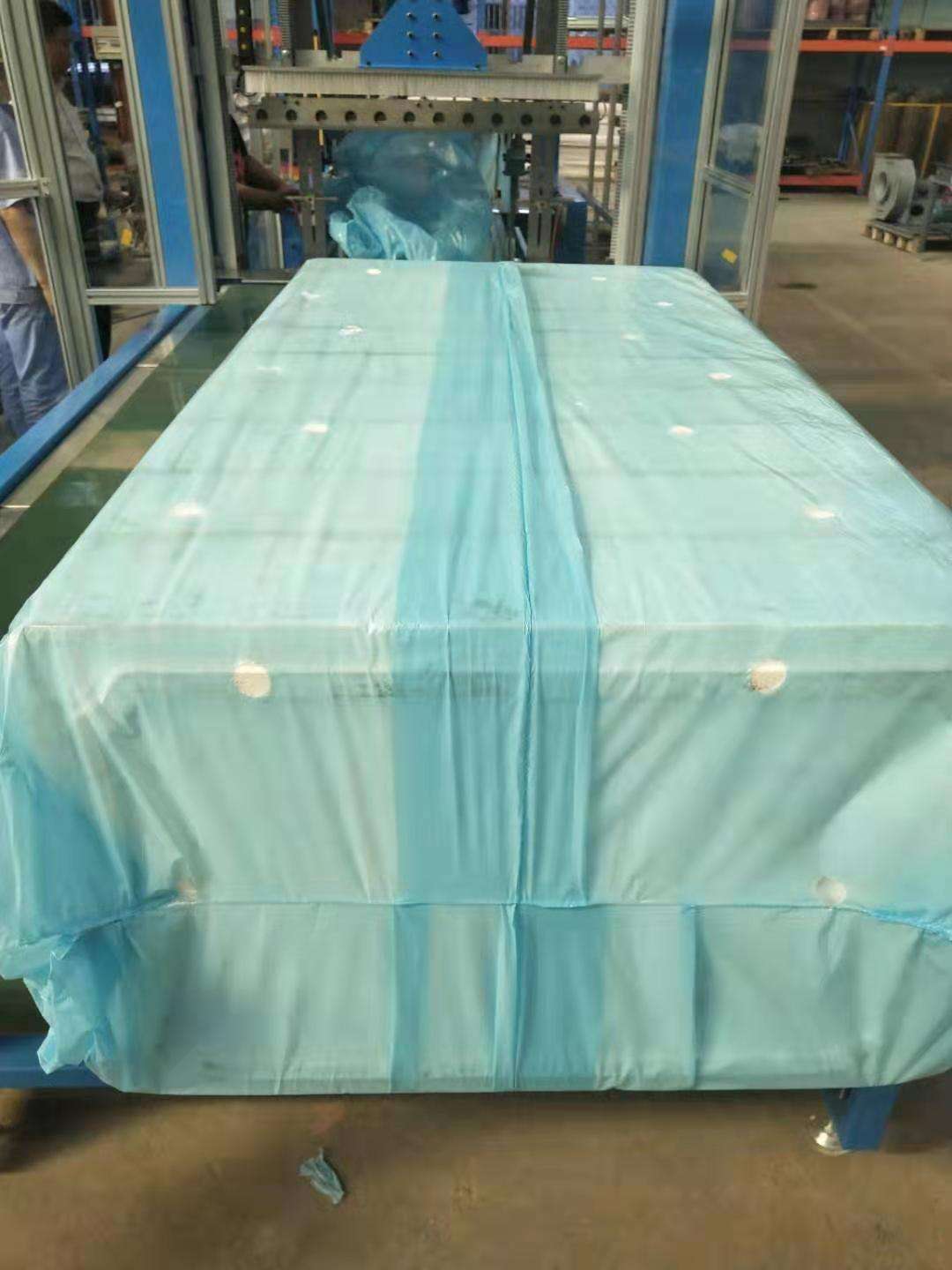

eps packing machine-13

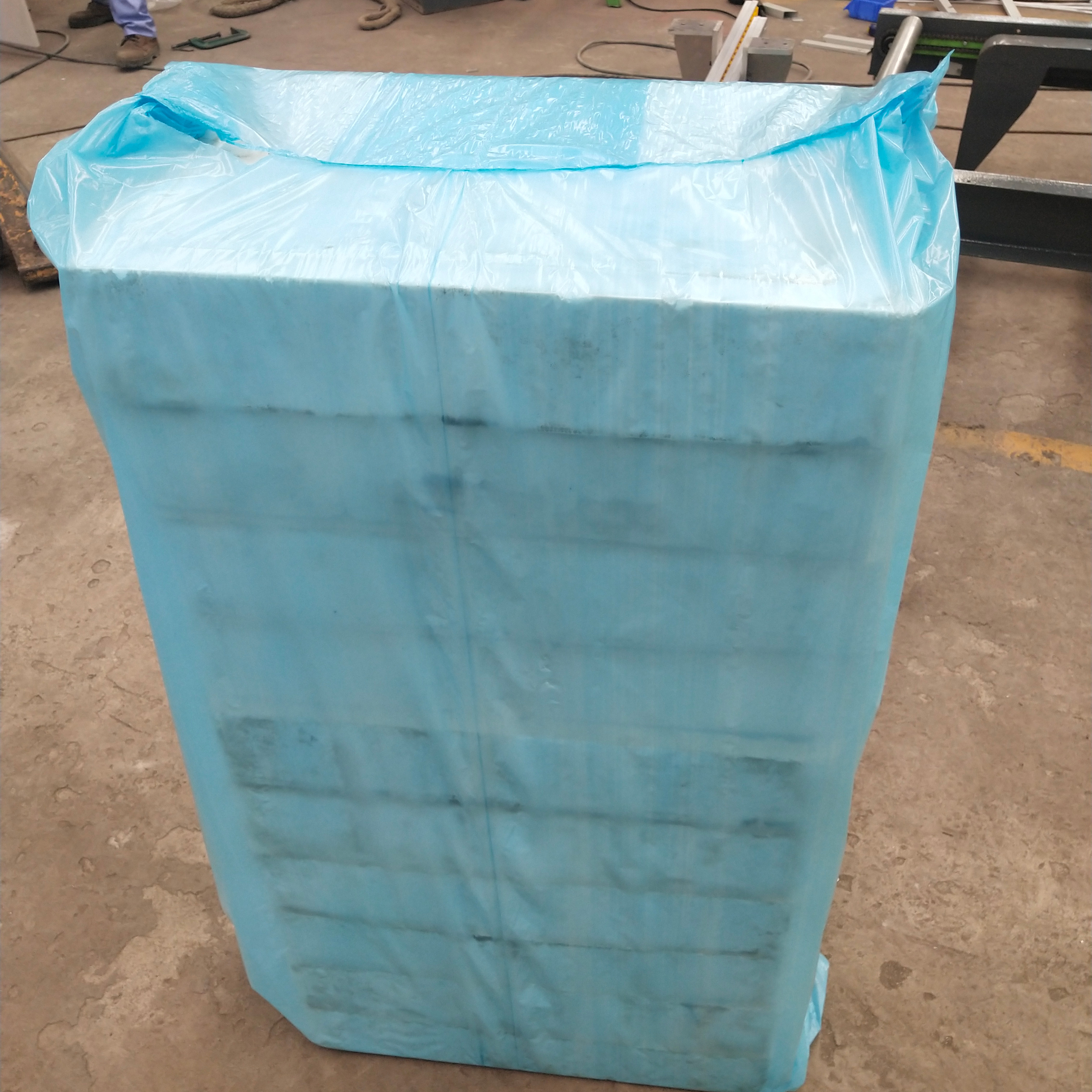

eps packing machine-4
