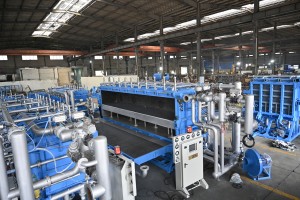

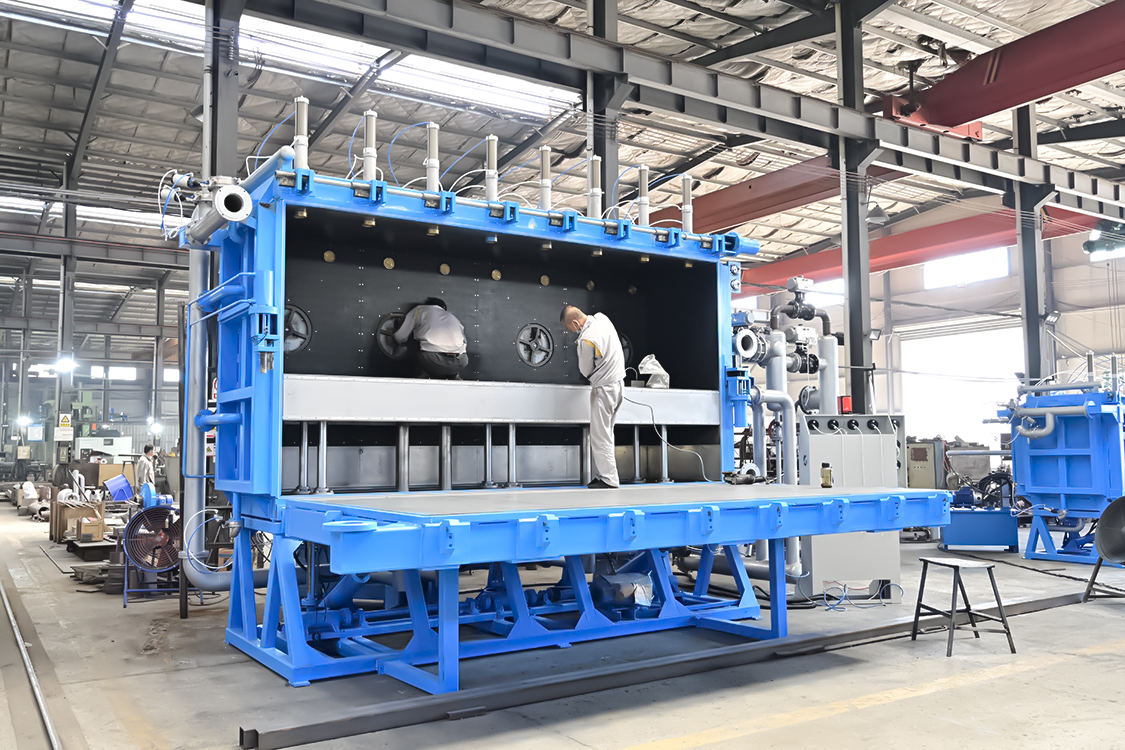

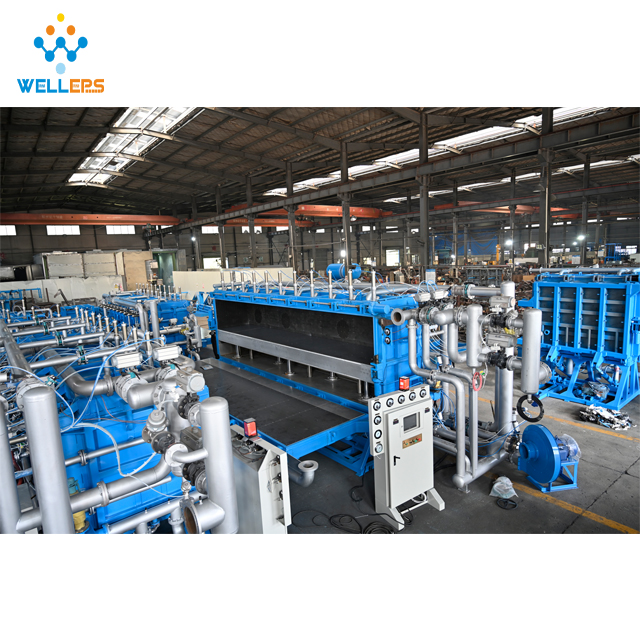

EPS Air Cooling Block Molding Machine
Main Features
EPS Air Cooling Block Molding Machine With PLC and touch screen to realize full automatic. It uses air to cool the EPS material, resulting in a product with lower moisture content compared to steam-based methods.

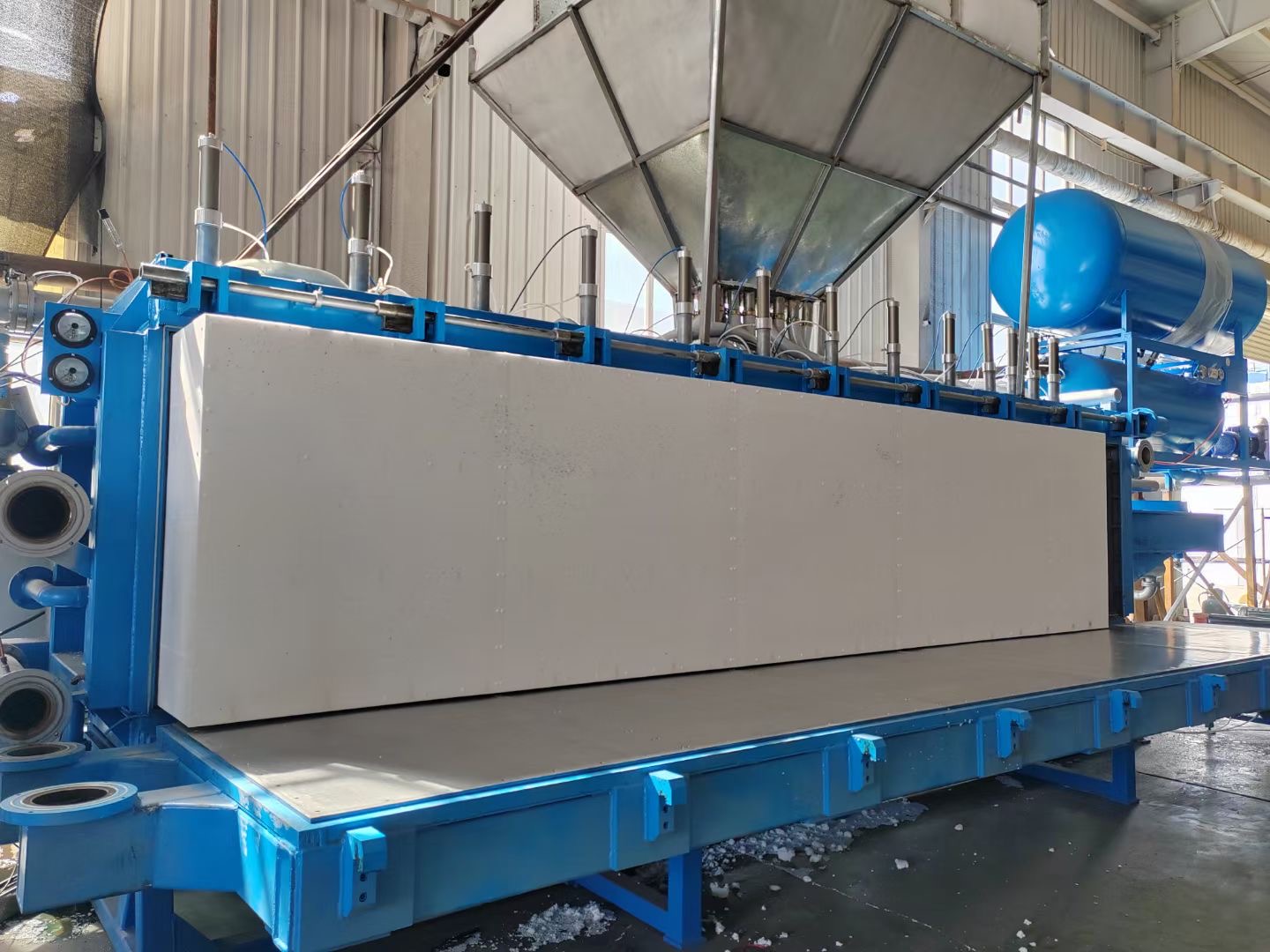

EPS air cooling block molding machine primarily produces EPS blocks, boards, and panels. These are used extensively in various industries due to their excellent insulation properties, lightweight
nature, and cost-effectiveness.
Features of EPS Air Cooling Block Molding Machine
High Precision and Efficiency
Incorporates cutting-edge technology to provide accurate and rapid molding, reducing
material waste and increasing production capacity.
CE Certified for Quality and Safety
CE Certified for Quality and Safety
This machine meets international safety and quality standards, providing peace of
mind and reliable operation in any production environment.
Customizable Moulding Options
Customizable Moulding Options
Supports a wide range of mould sizes and shapes, catering to diverse market
needs and enabling flexibility in production.
User-Friendly Operation
User-Friendly Operation
Equipped with an intuitive control system for easy operation and quick training,
minimizing downtime and optimizing workflow efficiency.
Durable Construction
Durable Construction
Built with high-quality materials and components to ensure longevity, even under
heavy-duty usage, reducing maintenance costs and downtime.

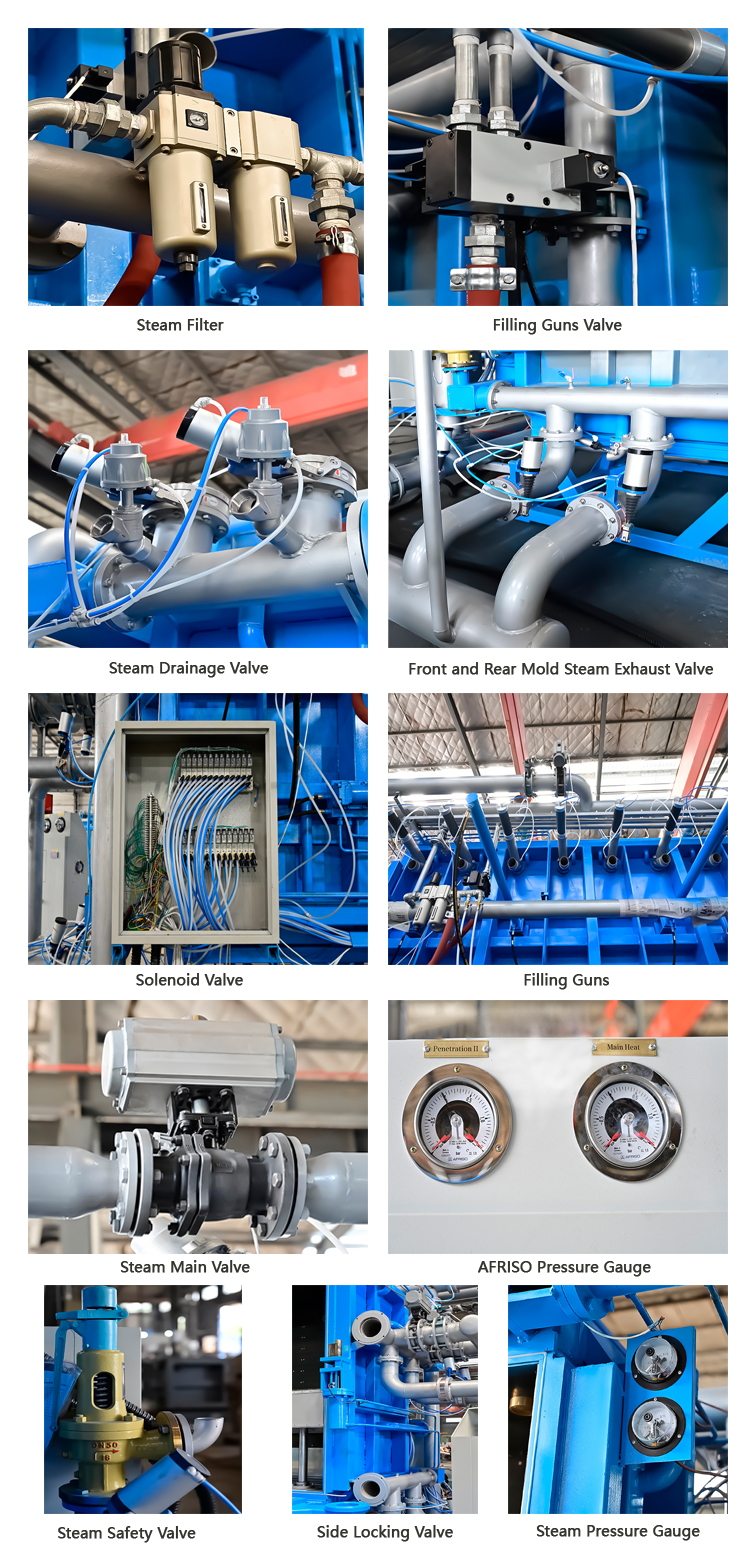

Steam Valves: Control steam flow to the mold.
Safety Valves: Protect the system from overpressure. Pressure Regulators: Maintain consistent steam pressure.
Steam Piping: Distributes steam to the mold cavity.
PLC (Programmable Logic Controller): Controls the machine’s operations.
Sensors: Monitor temperature, pressure, and other parameters.
HMI (Human-Machine Interface): Operator interface for monitoring and control.
Technical Data
|
Item
|
Type
|
||||
|
PSB200TF
|
PSB300TF
|
PSB400TF
|
PSB600TF
|
||
|
Mould Cavity Size
|
mm
|
2040*1240-940*630
|
3060*1240-940*630
|
4080*1240-940*630
|
6100*1240-940*630
|
|
Block Size
|
mm
|
2000*1200-940*600
|
3000*1200-900*600
|
4000*1200-900*630
|
6000*1200-900*600
|
|
Steam
|
ENTRY
|
DN150
|
DN150
|
DN150
|
DN200
|
|
Consumption
|
20-30kg/cycle
|
30-40kg/cycle
|
45-55kg/cycle
|
60-70kg/cycle
|
|
|
Pressure
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
|
|
Compressed Air
|
ENTRY
|
DN40
|
DN40
|
DN50
|
DN65
|
|
Consumption
|
1-1.5m³/cycle
|
1.5-1.8m³/cycle
|
1.8-2m³/cycle
|
2-2.3m³/cycle
|
|
|
Pressure
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
|
|
Drainage
|
Steam vent
|
φ100mm
|
φ100mm
|
φ200mm
|
φ200mm
|
|
Blower outlet
|
φ100mm
|
φ100mm
|
φ150mm
|
φ150mm
|
|
|
Throughpt
|
15kg/m3
|
7-12min/cycle
|
8-15min/cycle
|
8-18min/cycle
|
8min/cycle
|
|
Power
|
14.5Kw
|
14.5Kw
|
18.5Kw
|
18.5Kw
|
|
|
Overall Dimension
|
L*W*H
|
4000*2150*2120
|
5030*2270*2120
|
6040*2270*2250
|
8100*2500*3100
|
|
Weight
|
6000kg
|
7500kg
|
12000kg
|
15000kg
|
|
|
Room Height Required
|
6000mm
|
6000mm
|
6000mm
|
6000mm
|
|
Advantages of EPS Air Cooling Block Molding Machines
Energy efficient： Air cooling process is generally less energy-intensive than other methods.
Cost-effective: Produces lightweight materials at a lower cost than other insulation options.
High production capacity: Efficient for large-scale production.
Versatile: Can produce various shapes and sizes of EPS block
Products
Applications of EPS Air Cooling Block Molding Machine
EPS Air Cooling Block Molding Machines are primarily used to produce lightweight EPS blocks, boards, and panels. These materials have a wide range of applications across various industries.
Construction:
* Sandwich panels for walls and roofs
* Insulation boards for underfloor heating
* Decorative panels
Insulation:
* Building insulation: walls, roofs, floors
* 3D sandwich panels
