Hot Sale SPJ90-160 Auto Batch EPS Pre-expander EPS Machine

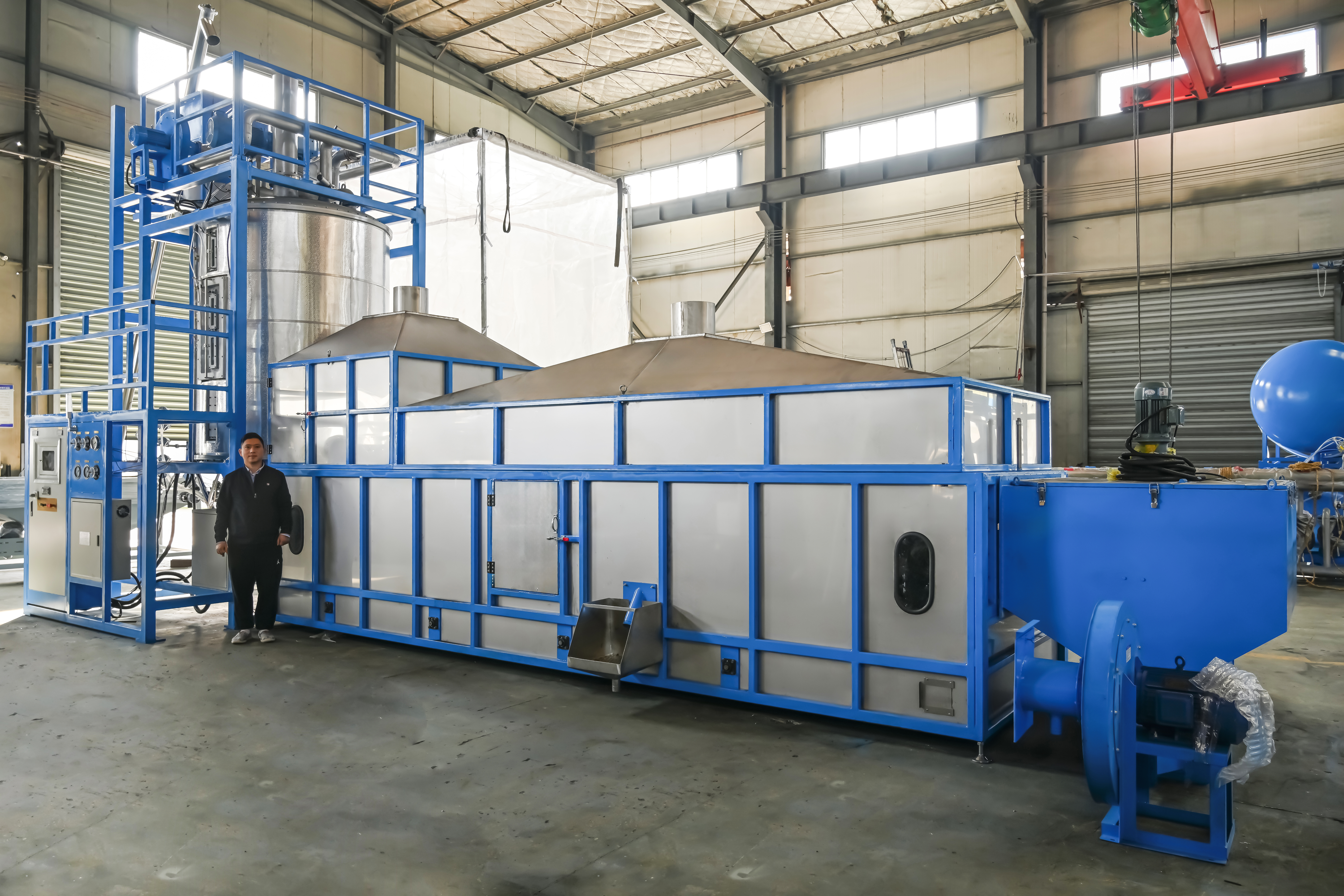

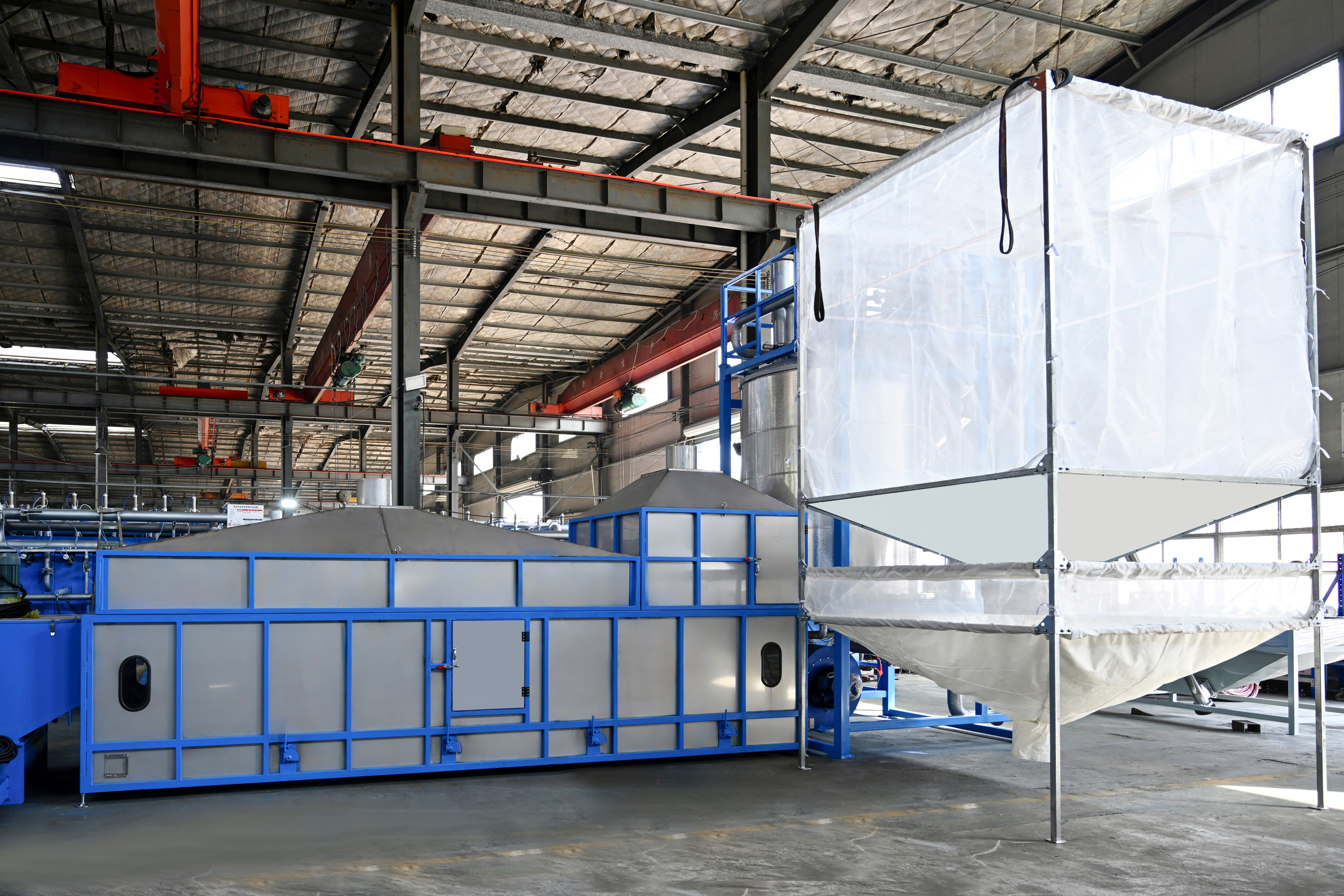

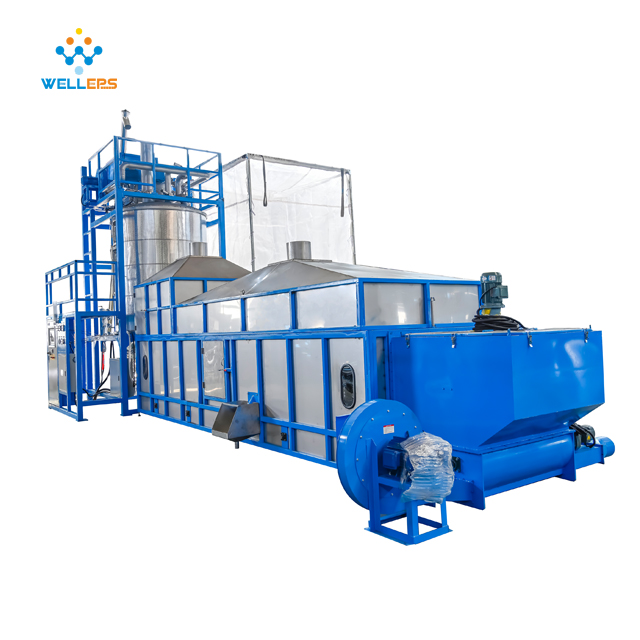

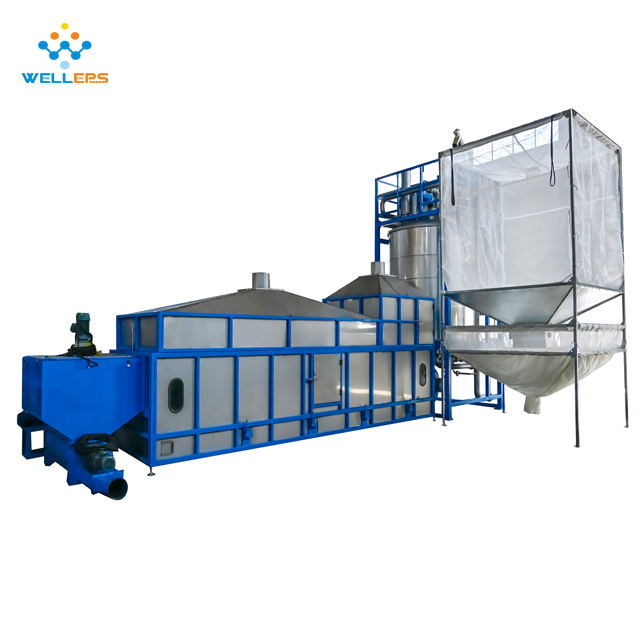

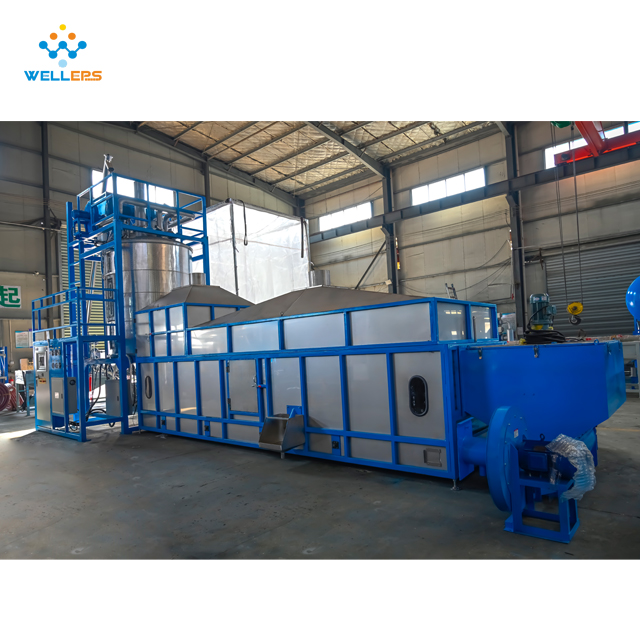

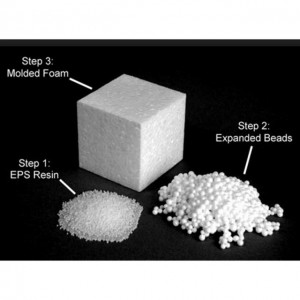

Automatic Batch EPS Pre-expander turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. With PLC and touch screen to realize full automatic production for feeding, heating and ejecting foam beads.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Main advantage

Automatic Batch EPS Pre-expander is widely used for high density and middium capacity of EPS foam beads production line.
1. Fully automatic production.
2. Controlled by touch screen and PLC, easy to operate.
3. High output and save energy.
4. Exact density of foam beads.
5. Stable quality and less failure.

Main Features

1.Feeding, expander, filtrating, transport to silos automatically

2.Steam system controlled by pressure reducing valve and Angle seat valve, to achieve accurate heating

3.Feeding system adopts electronic weighing system, material level sensor control, so as to control capacity of foaming materials, to ensure that the foam bead evenly

4.Use PLC controller and touch screen, achieve precise automatic operation

5.Feed barrels made of stainless steel. Electrical components, valves are used abroad well-known brands, to maintain the durable, stable performace

Technical Data

Item		Type
Item		SPJ90	SPJ110	SPJ130	SPJ160
Expansion Chamber	Diameter	Φ900mm	Φ1100mm	Φ1300mm	Φ1600mm
	Volume	0.85m³	1.4m³	2.4m³	5.4m³
	Useable Volume	0.6m³	0.9m³	1.6m³	4.5m³
Steam	Entry	DN40	DN50	DN65	DN100
	Consumption	2-4kg/cycle	6-9kg/cycle	10-12kg/cycle	18-20kg/cycle
	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Compressed Air	Entry	DN25	DN25	DN40	DN40
	Consumption	0.3m³-0.4m³/cycle	0.5m³-0.6m³/cycle	0.7m³-0.9m³/cycle	0.5m³-0.8m³/cycle
	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Drainage	Drainage Port	DN100	DN80	DN100	DN150
Drainage	Condensate	DN40	DN80	DN100	DN50
Throughput		13g/l 240kg/h	12g/l 240kg/h	12g/l 530kg/h	12g/l 1500kg/h
		18g/l 350kg/h	15g/l 320kg/h	15g/l 670kg/h	15g/l 2000kg/h
		25g/l 480kg/h	20g/l 430kg/h	20g/l 920kg/h	20g/l 26000kg/h
		31g/l 590kg/h	30g/l 600kg/h	30g/l 1220kg/h	30g/l 3100kg/h
		50g/l 720kg/h
Material Conveying Line		Φ150mm	Φ150mm	Φ250mm	Φ250mm
Power		16.75Kw	16.13Kw	20.3Kw	38.45Kw
Density		12-90g/l	12-30g/l	12-30g/l	12-30g/l
Density Tolerance		≤±2%	≤±3%	≤±3%	≤±3%
Overall Dimension	LWH	450020004900	560038004530	738030004500	110002840 6050
Weight		2500kg	3500kg	4200kg	8000kg
Room Height Required		5000mm	5000mm	5500mm	7000mm
Auto density-weighing system		optional	optional	optional	optional
Second expansion				optional	optional
