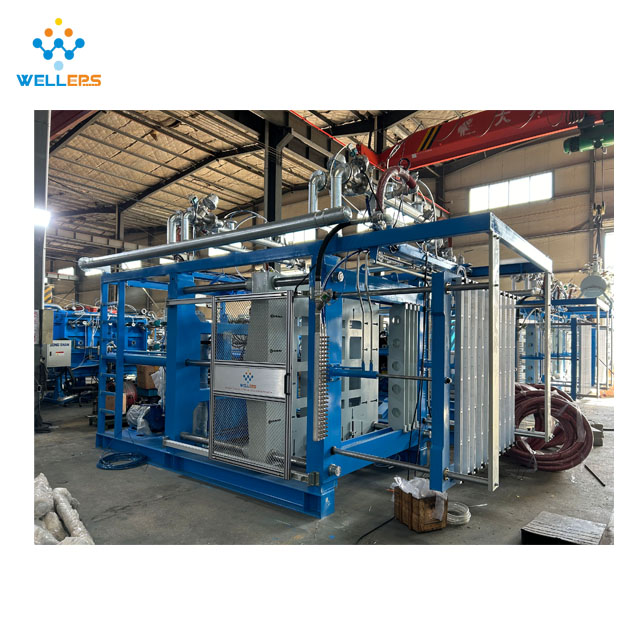

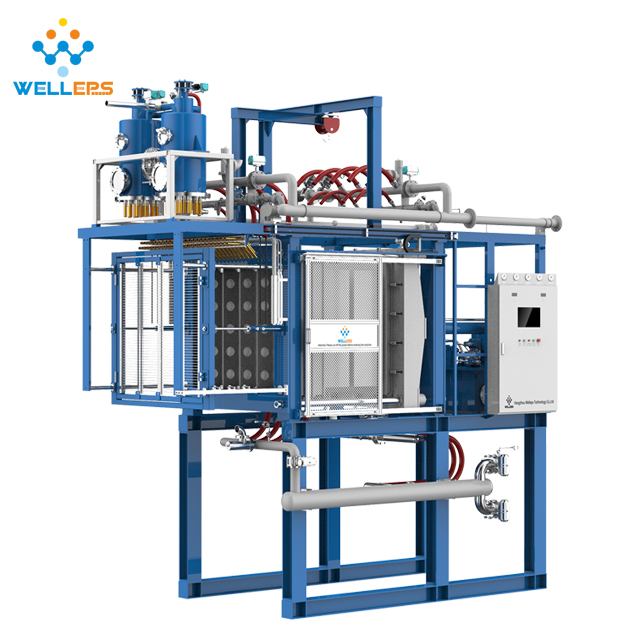

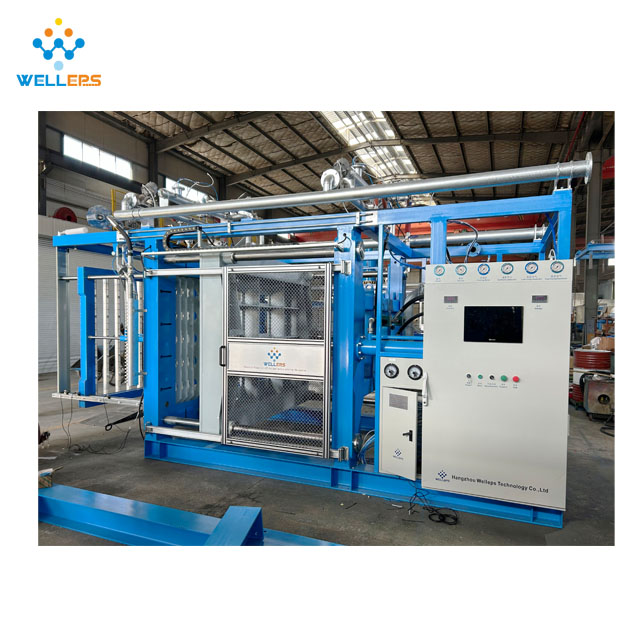

ICF machine for building insulation

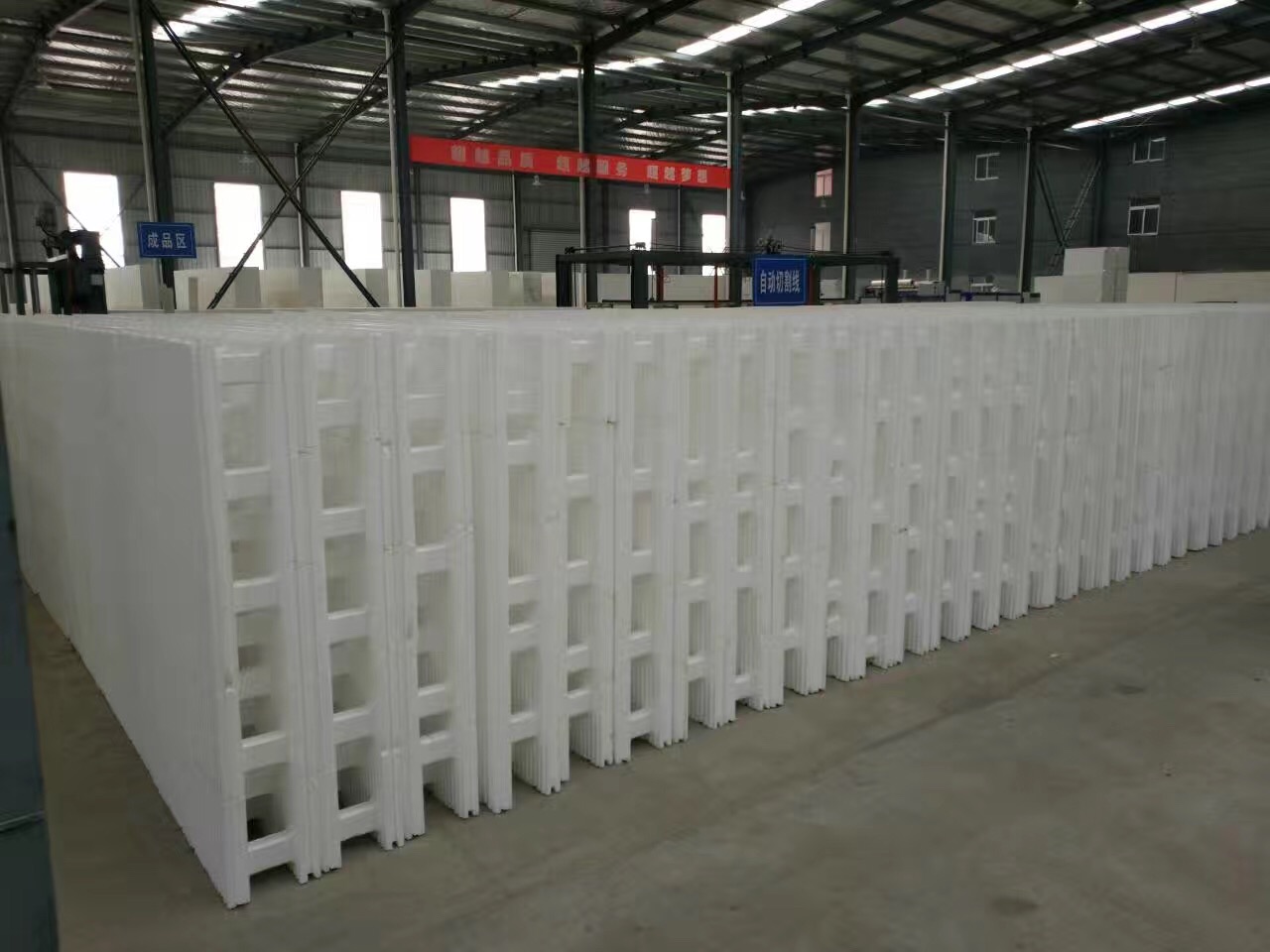

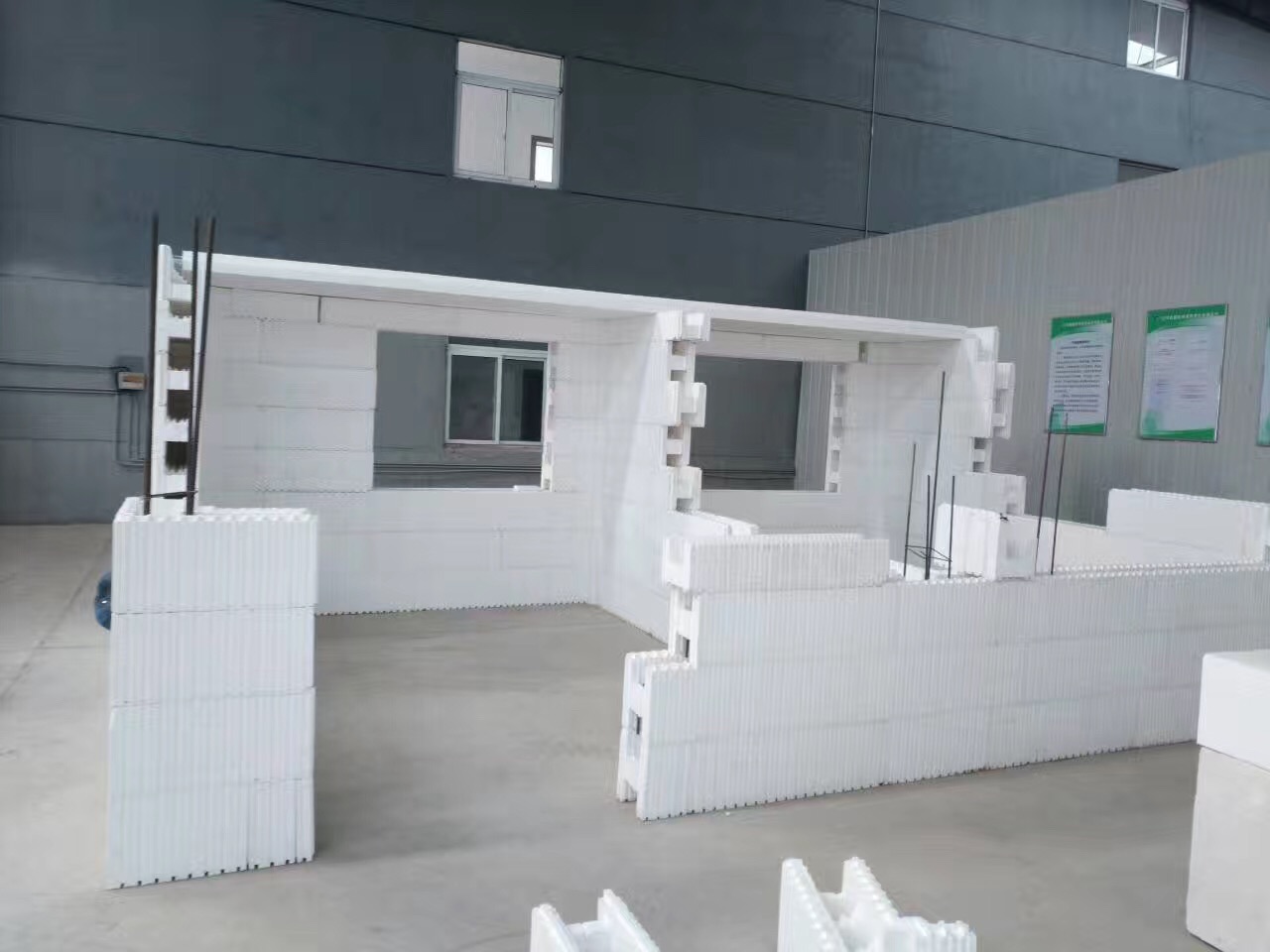

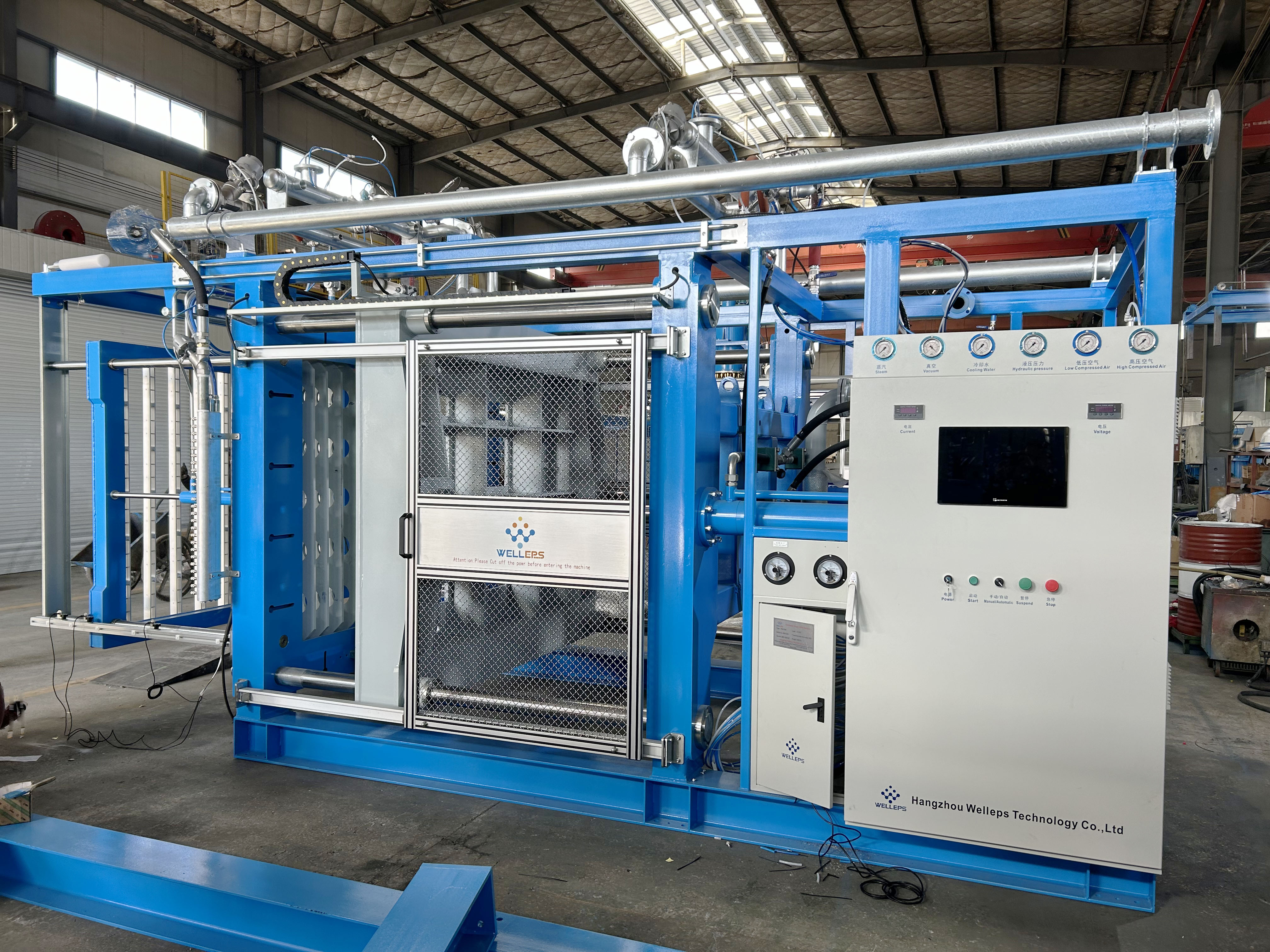

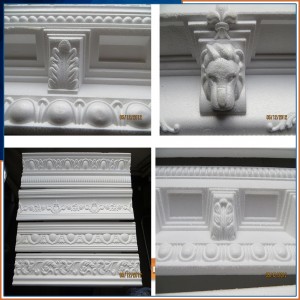

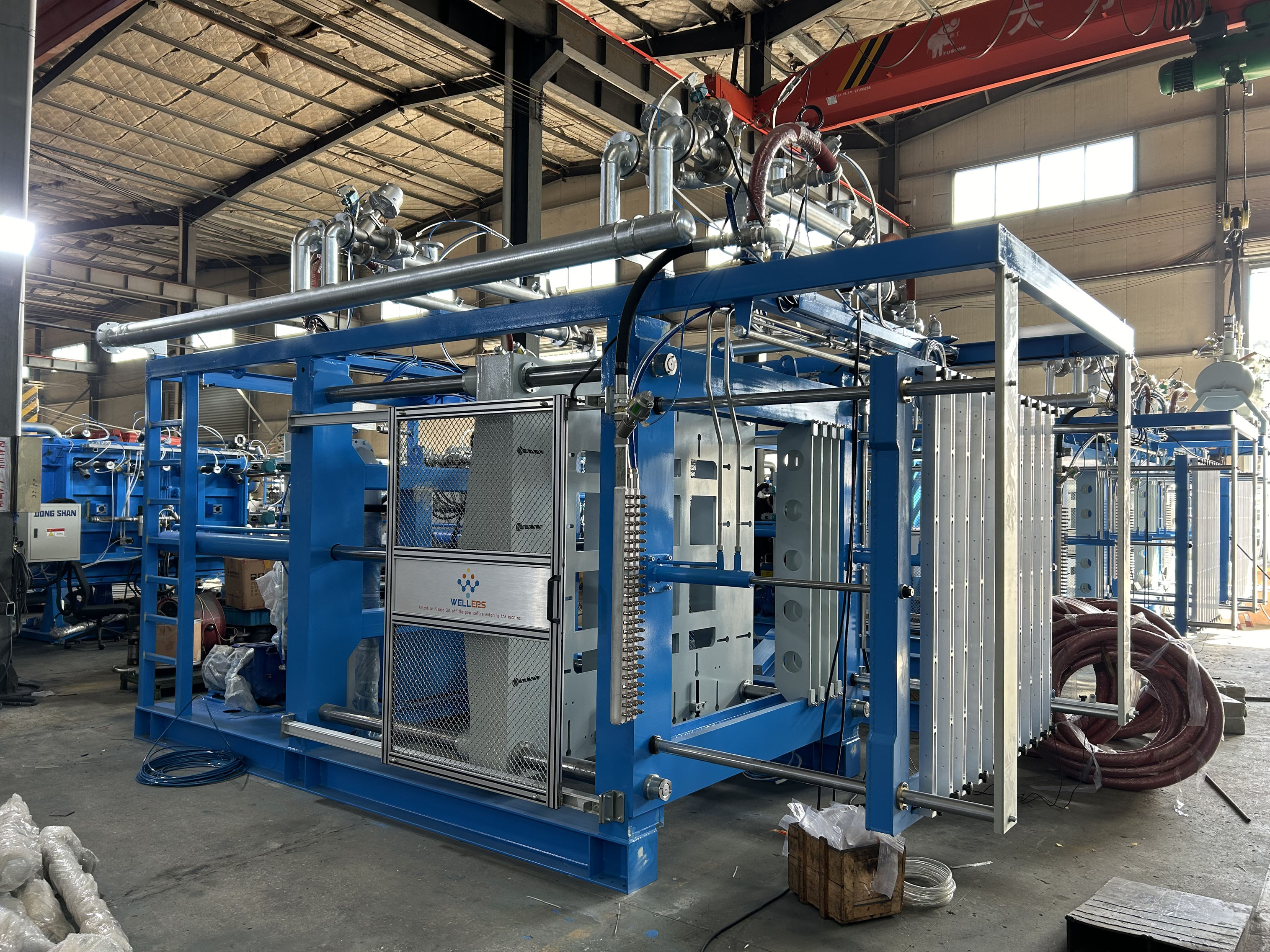

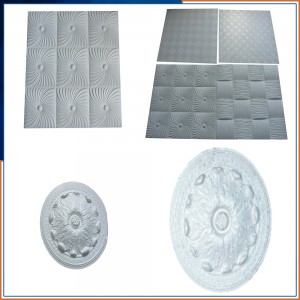

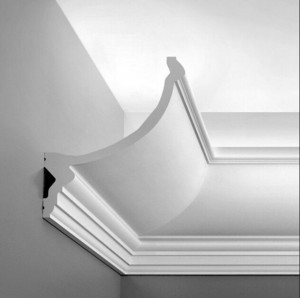

ICF EPS Moulding Machine widely used for producing various eps foam products, such as fish box, vegetable box, seedling tray, home appliance package, icf blocks, fast food box, ceiling cornice, lost foam casting, construction blocks, etc.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Main Features

1. Use proportional steam valve for save steam and heat accurately.

2. Can install the filling guns and ejectors on the ground, can save time to install moulds.

3. Special designed hopper can control the material filling more accurately to ensure make good quality products.

4. Use stainless steel oil pipes to keep machine running stable and not leak oil.

5. Lock moulds same as Germany machine, can keep high pressure in the moulds.

6. All pipe and mould plate coated with zinc, to ensure the machine not easy to get rust and long time running with the steam and water.

Technical Data

Item			PSZS-1412	PSZS-1816	PSZS-2018
Mould Dimension		mm	1400*1200	1850*1600	2000*1800
Rear window dimensions		mm	1250*1050	1700*1450	1750*1650
Effective forming area		mm	1200*1000	1500*1250	1650*1450
Max Produce Size		mm	400	400	400
Steam	Pipe connect	DN	100	100	100
	Die connect	DN	40/6	40/8	40/8
	Pressure	kg/cm²	<5	<5	<5
	Consumption	kg/cycle	3-12	3-15	3-18
Air	Pipe connect	DN	80/2	80/2	80/4
Air	Pressure	kg/cm²	<4	<4	<4
Cooling Water	Pipe connect	DN	80	80	80
	Die connect	DN	25/2	25/3	25/3
	Pressure	kg/cm²	<3	<3	<3
	temperature	℃	45-55	45-55	45-55
Single Vacuum	Motor	KW	5	7.5	7.5
	Connect	DN	100	100	100
	Drain	DN	40	40	40
	Dain water	DN	25	25	25
Vacuum Center	Connect	DN	100	100	100
Drainage	Drain Outlet	Φ	159	159	159
Drainage	Mould Outlet	DN	40/3	40/4	40/4
Hydralic system	Motor	KW	7.5	11	11
	Pump	L/min	31/97	31/116	31/116
	Lock power	T	24	37	46
	Open-close cylinder	mm	100*2	125*2	140*2
	Demould cylinder	mm	50*2	50*2	50*2
Hopper	Volume	m³	0.3	0.4	0.4
	Motor	KW	1.5	2.2	2.2
	Material hole	Pieces	22	44	44
Electric Load		KW	16.5	20.7	20.7
Overall Dimension		mm	480033202800	480036003200
Weight		kg	7200	8000
