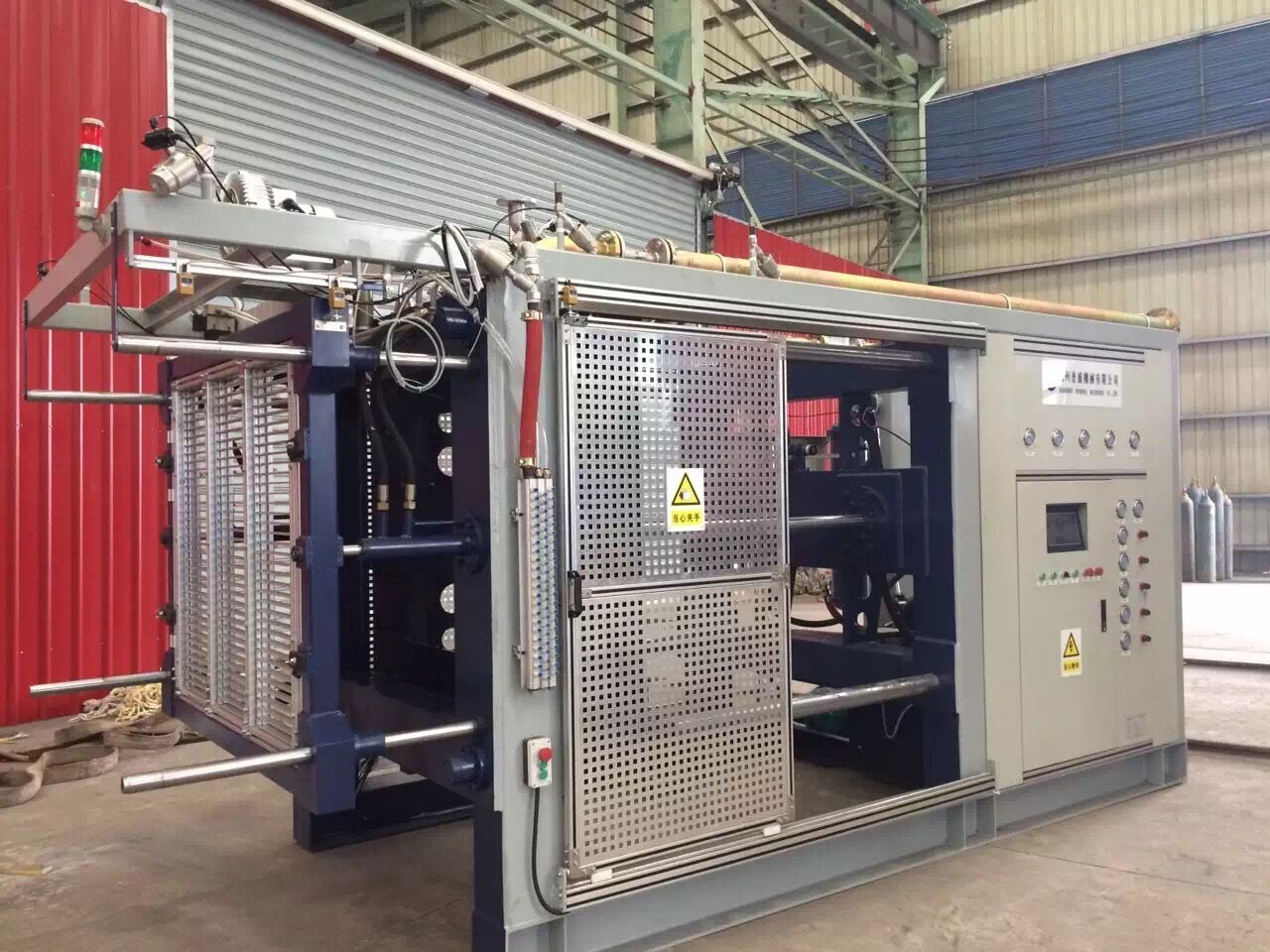

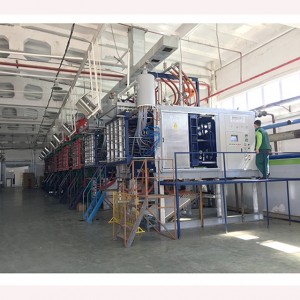

EPP Molding Machine Main Functions

EPP Molding Machine to accommodate with different sized product, this machine has wide ranges of mould plate, the min, dimension is around 600 × 800 mm and the max. Dimension is up to 1200 × 1400 mm. This machine is equipped with two-step hydraulic system, compressed feeding system, and central energy system, relief damper, holding-pressure water tank, condensation system, computer-controlled system, digital process control system and steam room.

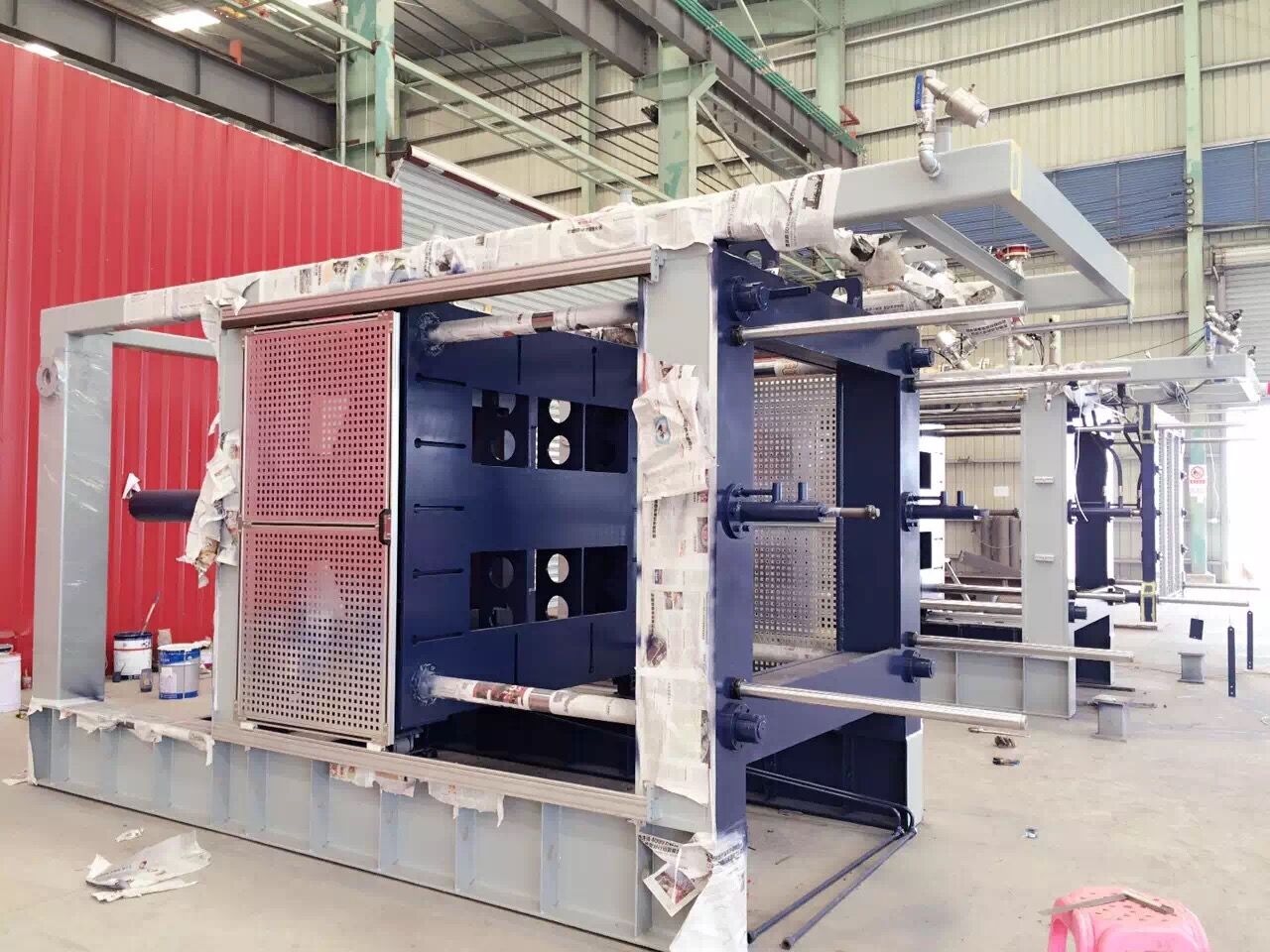

EPP Molding Machine Structure

EPP Molding Machine system does not require any lubricant. The hydraulic cylinder is installed in the two sides of the doom with even mould clamping force. The stainless dome can hold the heat. The mold opening and mould closing are managed by the computerized system which can ensure the best feeding accuracy. The mould ejection motion is controlled by the ejection system to provide the best quality of precision product during the ejection process.

EPP Molding Machine Layout

EPP Molding Machine is designed as a three-dimension open space. This open-space design will fasten the mold changing process and operators can change the mold from the front, back and two sides of this machine. Also, this machine can be placed directly on the ground without setting any platform. To secure the safety of the operators, EPP Molding Machine is equipped with safety door and security system.

EPP Molding Machine Mold System

EPP Molding Machine mold is made in three-piece plate format. More energy can be reserved without doom and therefore, the mold plate can be highly utilized. The leader pins and spray gun are installed within the mold moving plates to ensure the safety of operation. To reduce the idol time, this system provides faster mould installation and changing system.

EPP Molding Machine Hydraulic System

Two-step hydraulic system provides two speeds (fast and slow) options for mold-closing and mould- opening. Also, the processing time is reduced.

EPP Molding Machine Central Energy System

EPP Molding Machine has one full set of central energy system which is produced by our company All steam and air which are needed during the injection process are controlled by the central energy system valve. This system will provide even air intake and can be adjusted easier. This low-pressure steam system is designed with enlarged pipes and valves which can provide best working condition.

The Pressure Relief Damper

The adjustment of energy pressure is very important. Under higher steam pressure, the production time will be prolonged and consume more energy. However, the final product might be deformed and the surface appearance of the product might be affected when the pressure is too low. The relief damper functions when releasing mold and heating up the mold. The compressed air is used for filling and this damper will reduce the consumption of energy and provide high quality product.

The Holding-Pressure Water Tank

EPP Molding Machine is equipped with one set of holding pressure water hank which has two different entries for cooling water and condensate.

Vacuum System

EPP Molding Machine vacuum system is equipped with the Liquid Ring Vacuum pump and condenser which provides more efficient vacuity. Without any extra drying step, we can speed up the injection under this vacuum system. The mold ejection is easy to be completed and also save the more energy.

Computer Controlled System

EPP Molding Machine is equipped with computer- controlled system which has the functions of editor and expansion. every step of operation is precisely under controlled by this computer system error detection and indications are displayed on the screen Every model is installed with this compute system which displays the procedures, time setting and priorities pressure control valve will set the pressure.
