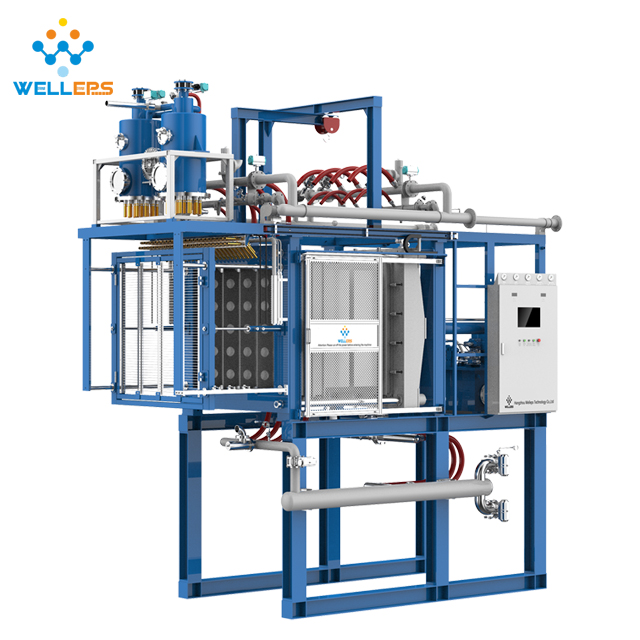

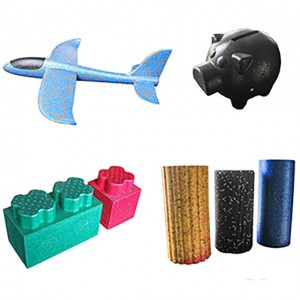

High Efficiency EPP expanded polypropylene foam toys molding machine equipment

1. Machine with PLC control work complete automatically.
2. Use good quality parts for the machine work very stable.
3. Use strong structure, machine work smoothly.
4. Produce good quality EPP products, the customers will win in the competitive market.


Product Detail

FAQ

Product Tags

Main Features

1.Equipment body use the high strength steel welded together, after the tempering process, sandblasting processing, to ensure the machine have strong structure, not get rust and increase the machine’s working life

2.Equipment adopts Mitsubishi PLC ( programmable controller )and Schneider touch  screen control. The whole production process is working automatically.

3.Machine with high-pressure feed system, feeding mould fast, machine can install 36 pcs filling guns

4.Machine with vacuum system, it can make the cycle time shorter, cooling much faster, and reduce the moisture content of products, so that products moisture content of 8% or even less

5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting

6.Machine pipe system use balancing valve and pressure sensor control, PID control so that heat penetrates quickly, lower energy consumption

7.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mould even, low noise and energy saving, etc

Eps Box Making Machine
Eps  Molding Machine

Technical Data

Item   PSZS-1412 PSZS-1816 PSZS-2018
Mould Dimension mm 1400*1200 1850*1600 2000*1800
Rear window dimensions mm 1250*1050 1700*1450 1750*1650
Effective forming area mm 1200*1000 1500*1250 1650*1450
Max Produce Size mm 400 400 400
Steam Pipe connect DN 100 100 100
Die connect DN 40/6 40/8 40/8
Pressure kg/cm² <5 <5 <5
Consumption kg/cycle 3-12 3-15 3-18
Air Pipe connect DN 80/2 80/2 80/4
Pressure kg/cm² <4 <4 <4
Cooling Water Pipe connect DN 80 80 80
Die connect DN 25/2 25/3 25/3
Pressure kg/cm² <3 <3 <3
temperature 45-55 45-55 45-55
Single Vacuum Motor KW 5 7.5 7.5
Connect DN 100 100 100
Drain DN 40 40 40
Dain water DN 25 25 25
Vacuum Center Connect DN 100 100 100
Drainage Drain Outlet Φ 159 159 159
Mould Outlet DN 40/3 40/4 40/4
Hydralic system Motor KW 7.5 11 11
Pump L/min 31/97 31/116 31/116
Lock power T 24 37 46
Open-close cylinder mm 100*2 125*2 140*2
Demould cylinder mm 50*2 50*2 50*2
Hopper Volume 0.3 0.4 0.4
Motor KW 1.5 2.2 2.2
Material hole Pieces 22 44 44
Electric Load KW 16.5 20.7 20.7
Overall Dimension mm 4800*3320*2800 4800*3600*3200
Weight kg 7200 8000

Products

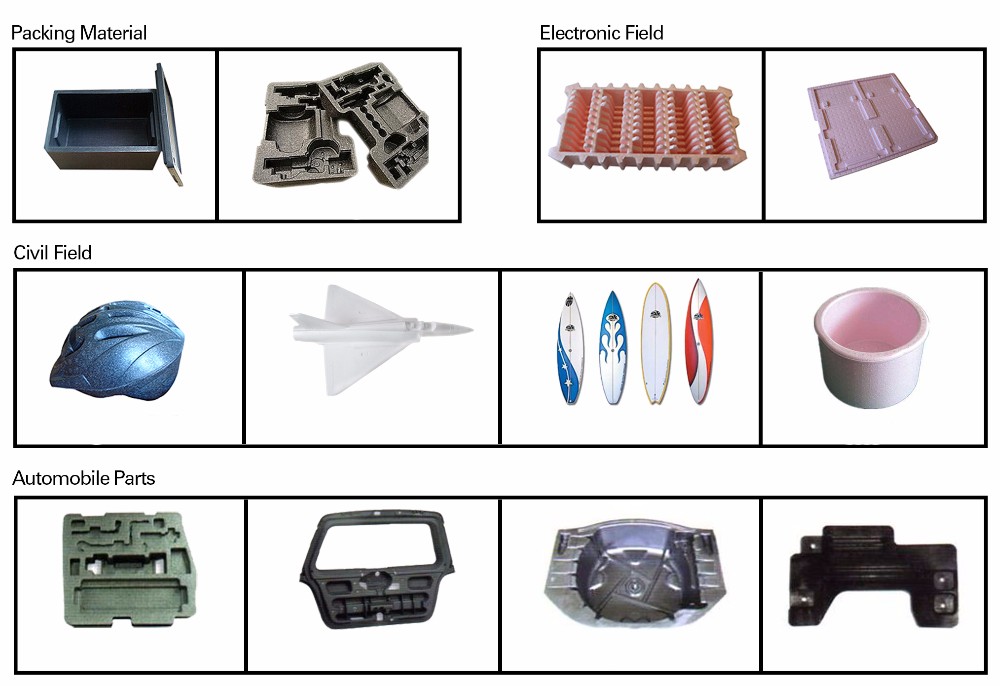

Epp Foam Molds Machine Product
