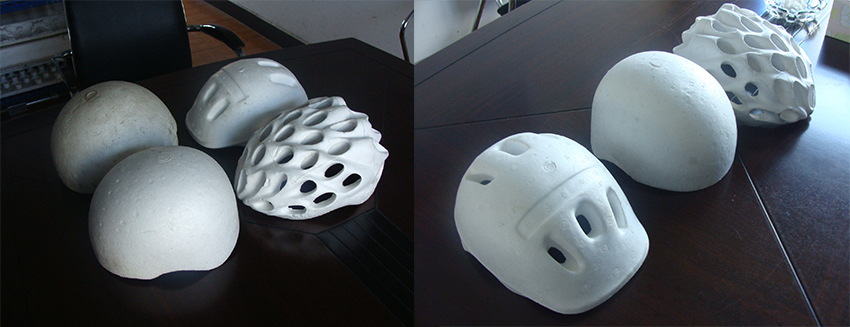

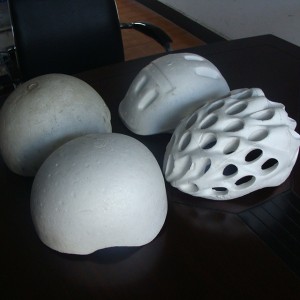

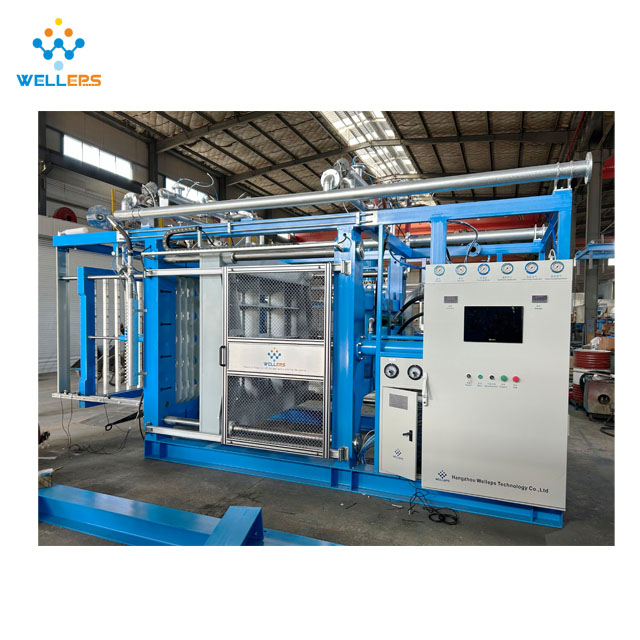

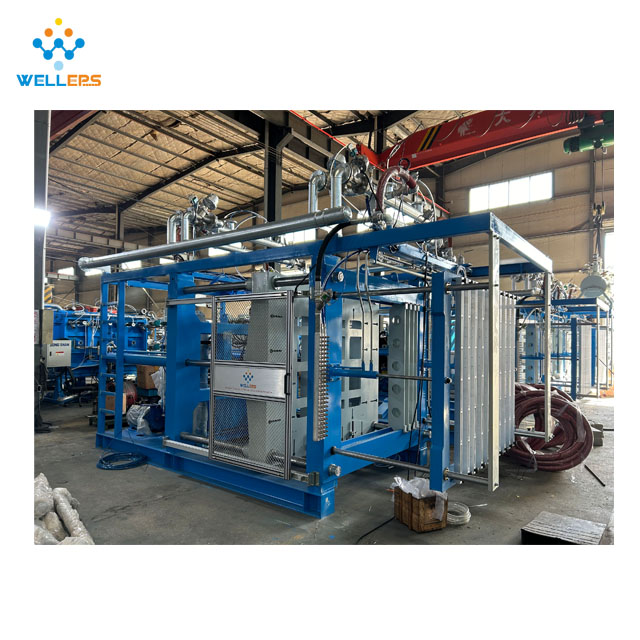

EPS foam bicycle helmet liner styrofoam forming machine
Main Features
1.Equipment body use the high strength steel welded together, after the tempering process, sandblasting processing, to ensure the machine have strong structure, not get rust and increase the machine’s working life
2.Equipment adopts Mitsubishi PLC ( programmable controller )and Schneider touch screen control. The whole production process is working automatically.
3.Machine with high-pressure feed system, feeding mould fast, machine can install 36 pcs filling guns
4.Machine with vacuum system, it can make the cycle time shorter, cooling much faster, and reduce the moisture content of products, so that products moisture content of 8% or even less
5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting
6.Machine pipe system use balancing valve and pressure sensor control, PID control so that heat penetrates quickly, lower energy consumption
7.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mould even, low noise and energy saving, etc
Technical Data
| Item | Unit | Type | |||||
| PSZ100T | PSZ120T | PSZ140T | PSZ160T | PSZ175T | |||
| Mould Dimension | mm | mm | 1000*800 | 1200*1000 | 1400*1200 | 1600*1350 | 1750*1450 |
| Max Product Dimension | mm | mm | 850*650*330 | 1050*850*330 | 1220*1050*330 | 1420*1200*330 | 1550*1250*330 |
| Stroke | mm | 210-1360 | 210-1360 | 270-1420 | 270-1420 | 270-1420 | |
| Steam | Entry | mm | DN65 | DN65 | DN80 | DN80 | DN80 |
| Consumption | kg/cycle | (12-15T)Steam of 1T material | |||||
| Cooling Water | Entry | mm | DN65 | DN65 | DN65 | DN65 | DN65 |
| Consumption | kg/cycle | 45-130 | 45-130 | 50-140 | 50-140 | 55-190 | |
| Compressed Air | Entry | mm | DN40 | DN40 | DN40 | DN50 | DN50 |
| Consumption | m3/cycle | 1.3 | 1.3 | 1.4 | 1.4 | 1.5 | |
| Vacuum Pump Capacity | m3/h | 165 | 165 | 250 | 280 | 280 | |
| Power | Kw | 11 | 11 | 14.5 | 16.5 | 16.5 | |
| Overall Dimension | L*W*H | mm | 4500*1640
*2700 |
4500*1840
*2900 |
4600*2140
*3100 |
5000*2300
*3400 |
5000*2550
*3700 |
| Weight | kg | 4100 | 4600 | 4900 | 5700 | 6200 | |
| Cycle Time | s | 60-90 | 60-100 | 60-150 | 100-180 | 120-190 | |

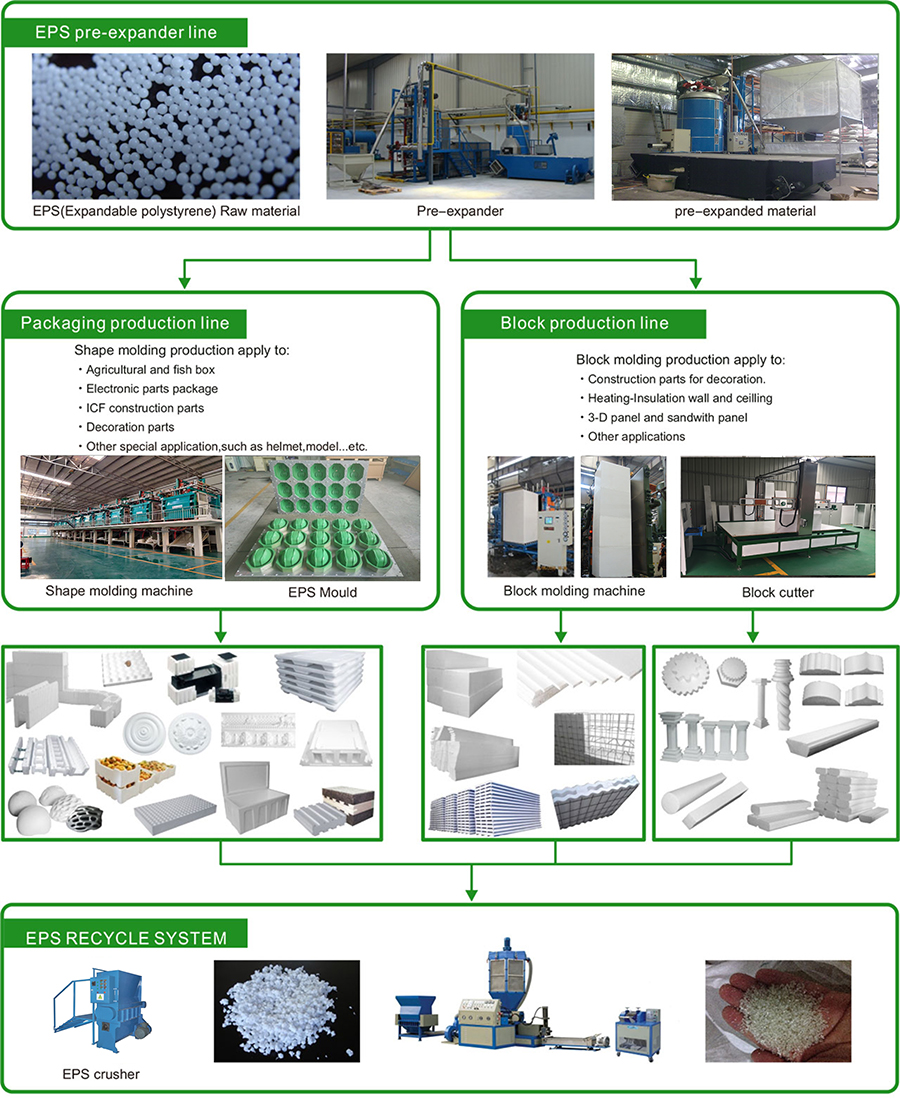

Production process flow
Our services
1.Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2.Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3.Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5. 1 year free warranty, Lifetime technical service support.
