EPS styrofoam box making machine
Main Advantage
EPS styrofoam box making machine main advantage:
1. Machine with PLC control work complete automatically.
2. Use good quality parts for the machine work very stable.
3. Use strong structure, machine work smoothly.
4. Produce good quality EPS products, the customers will win in the competitive market.
Machine Introduction
EPS styrofoam box making machine Features:
1.EPS styrofoam box making machine body use the high strength steel welded together, after the tempering process, sandblasting processing, to ensure the machine have strong structure, not get rust and increase the machine’s working life
2.Equipment adopts Mitsubishi PLC ( programmable controller )and Schneider touch screen control. The whole production process is working automatically.
3.Machine with high-pressure feed system, feeding mould fast, machine can install 36 pcs filling guns
4.Machine with vacuum system, it can make the cycle time shorter, cooling much faster, and reduce the moisture content of products, so that products moisture content of 8% or even less
5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting
6.Machine pipe system use balancing valve and pressure sensor control, PID control so that heat penetrates quickly, lower energy consumption
7.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mould even, low noise and energy saving, etc

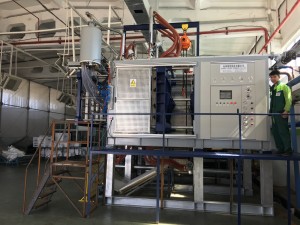

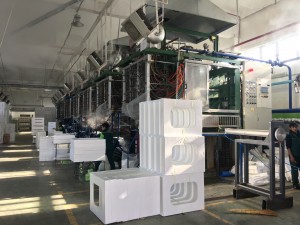

EPS styrofoam box making machine run in customer’s factory
Technical Data
| Item | Unit | Type | |||||
| PSZ100T | PSZ120T | PSZ140T | PSZ160T | PSZ175T | |||
| Mould Dimension | mm | mm | 1000*800 | 1200*1000 | 1400*1200 | 1600*1350 | 1750*1450 |
| Max Product Dimension | mm | mm | 850*650*330 | 1050*850*330 | 1220*1050*330 | 1420*1200*330 | 1550*1250*330 |
| Stroke | mm | 210-1360 | 210-1360 | 270-1420 | 270-1420 | 270-1420 | |
| Steam | Entry | mm | DN65 | DN65 | DN80 | DN80 | DN80 |
| Consumption | kg/cycle | (12-15T)Steam of 1T material | |||||
| Cooling Water | Entry | mm | DN65 | DN65 | DN65 | DN65 | DN65 |
| Consumption | kg/cycle | 45-130 | 45-130 | 50-140 | 50-140 | 55-190 | |
| Compressed Air | Entry | mm | DN40 | DN40 | DN40 | DN50 | DN50 |
| Consumption | m3/cycle | 1.3 | 1.3 | 1.4 | 1.4 | 1.5 | |
| Vacuum Pump Capacity | m3/h | 165 | 165 | 250 | 280 | 280 | |
| Power | Kw | 11 | 11 | 14.5 | 16.5 | 16.5 | |
| Overall Dimension | L*W*H | mm | 4500*1640
*2700 |
4500*1840
*2900 |
4600*2140
*3100 |
5000*2300
*3400 |
5000*2550
*3700 |
| Weight | kg | 4100 | 4600 | 4900 | 5700 | 6200 | |
| Cycle Time | s | 60-90 | 60-100 | 60-150 | 100-180 | 120-190 | |
Applications

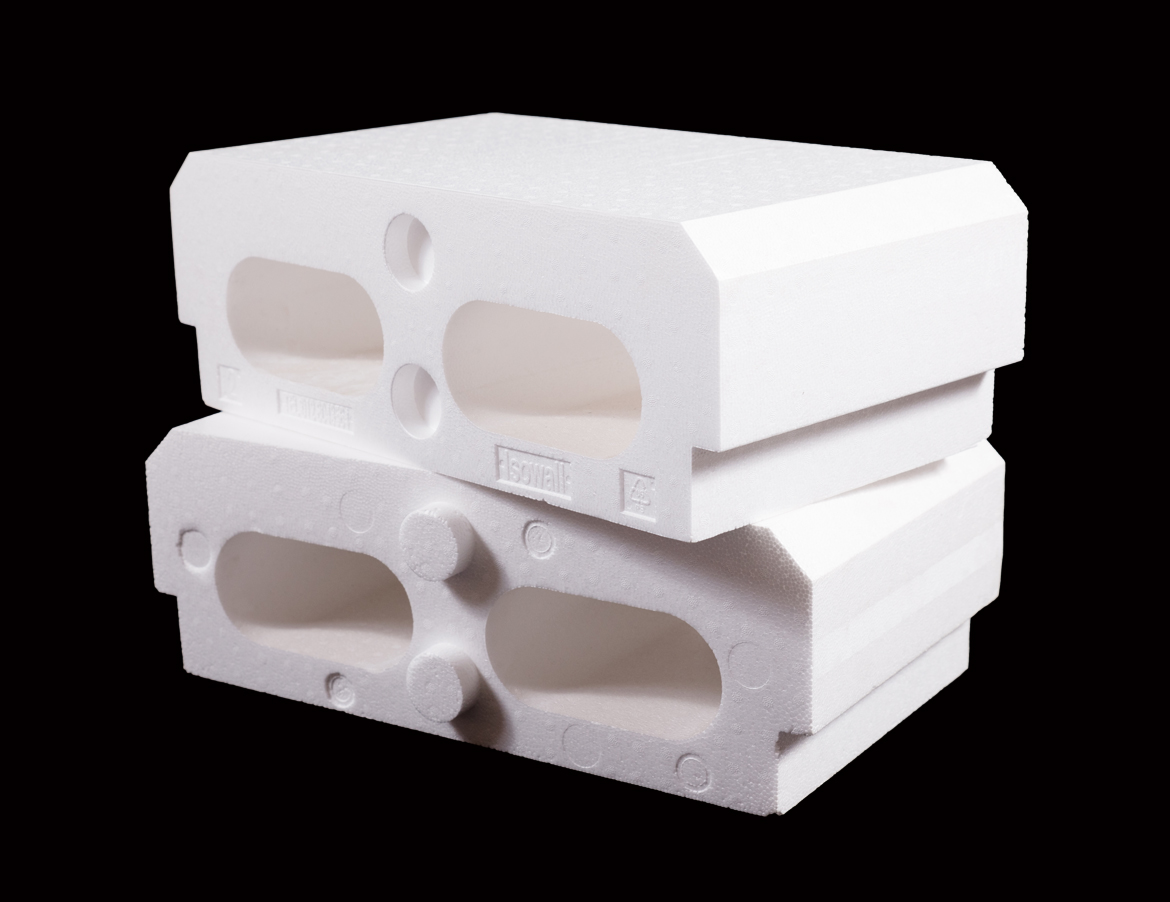

EPS styrofoam box making machine products are widely used in industries such as vegetables and fish boxes, electrical parts packaging, wall and roof insulation, and house decoration.

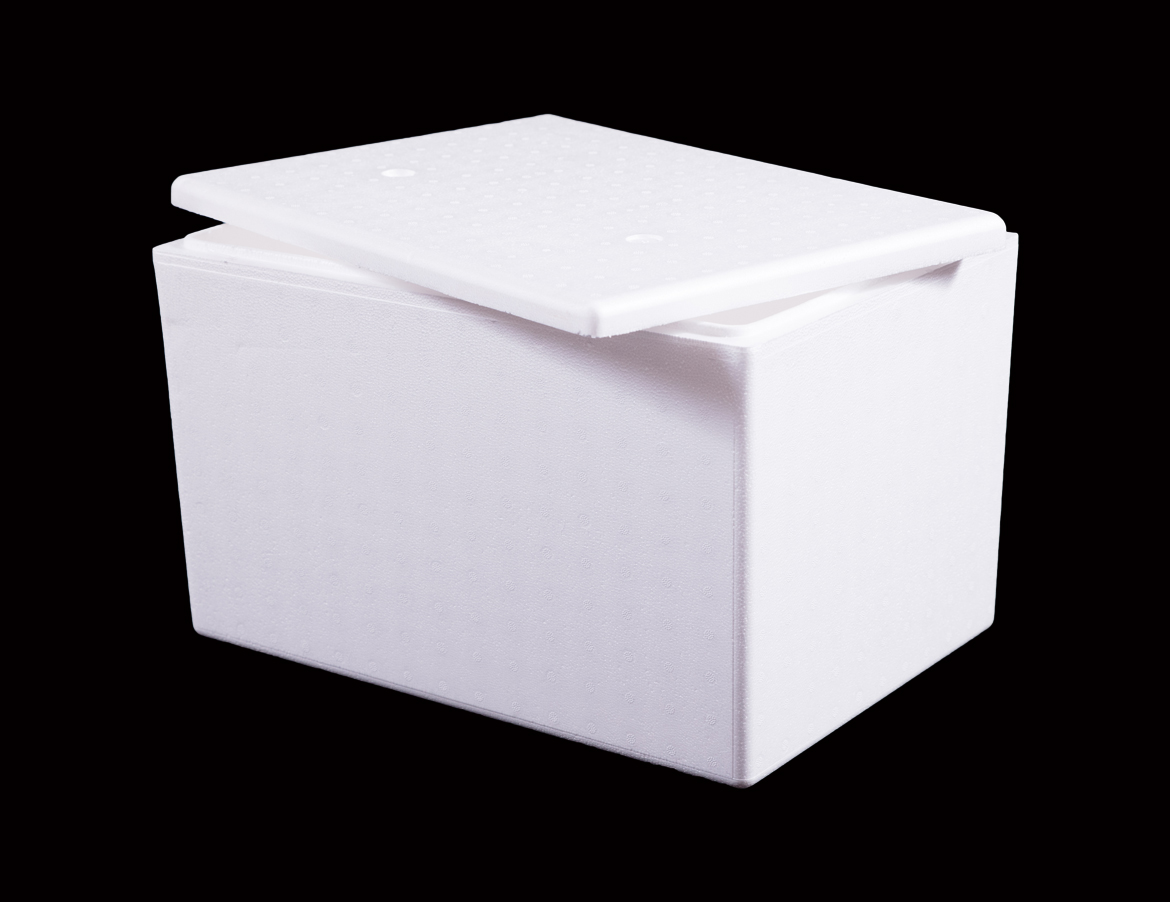

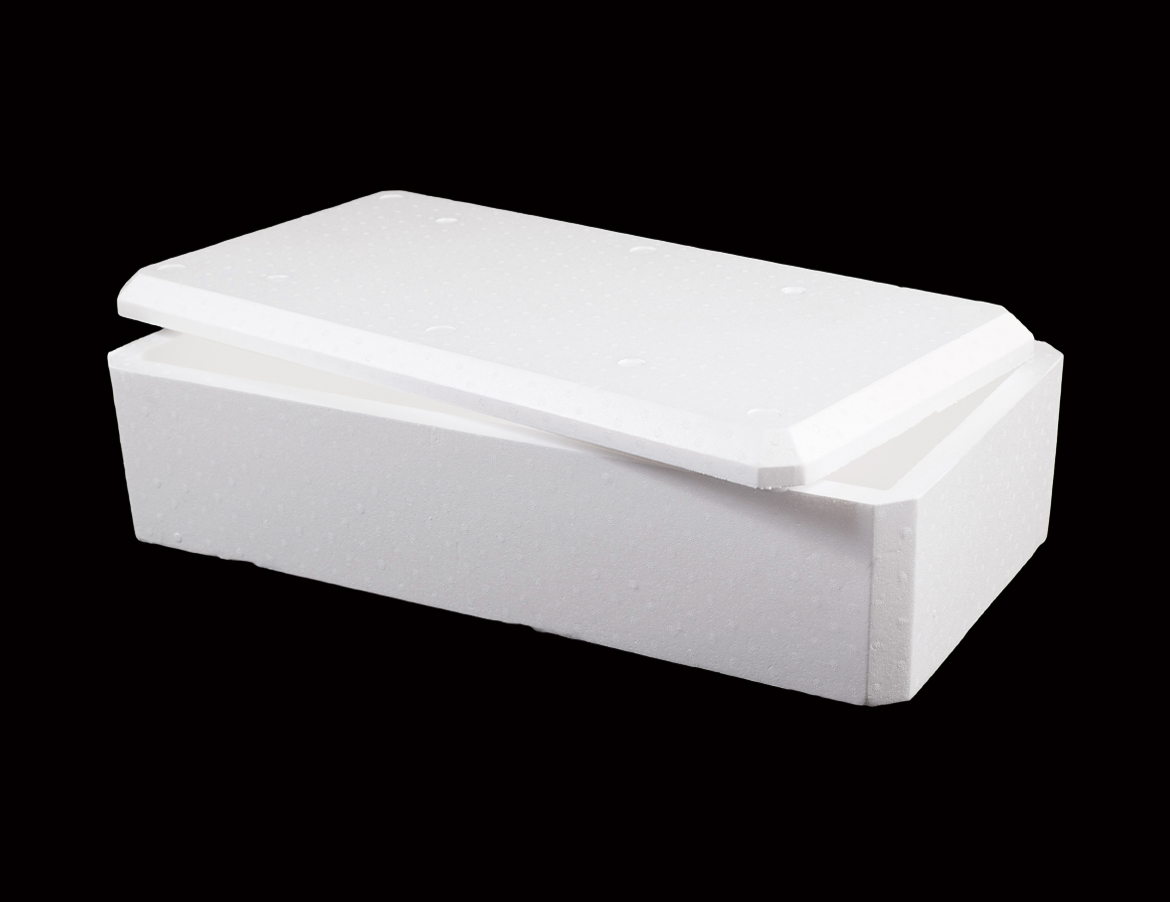

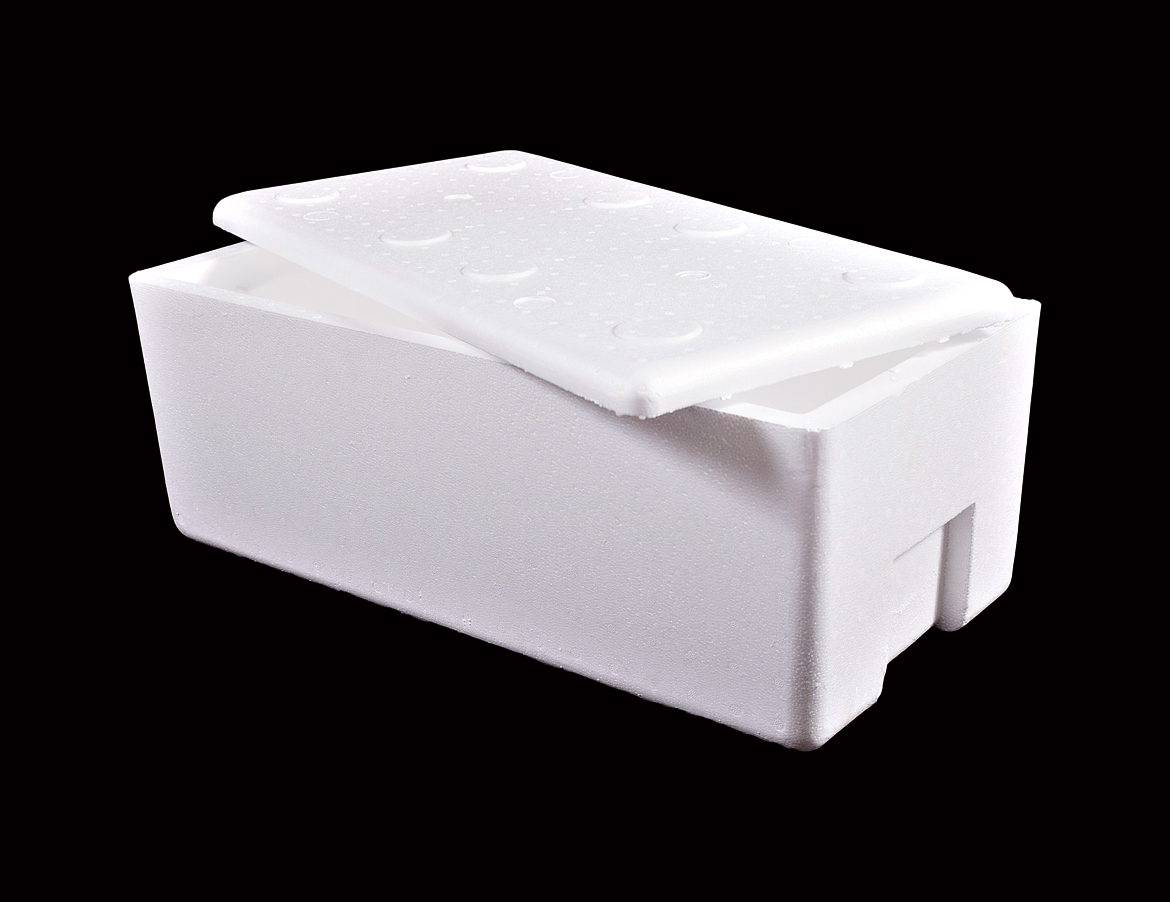

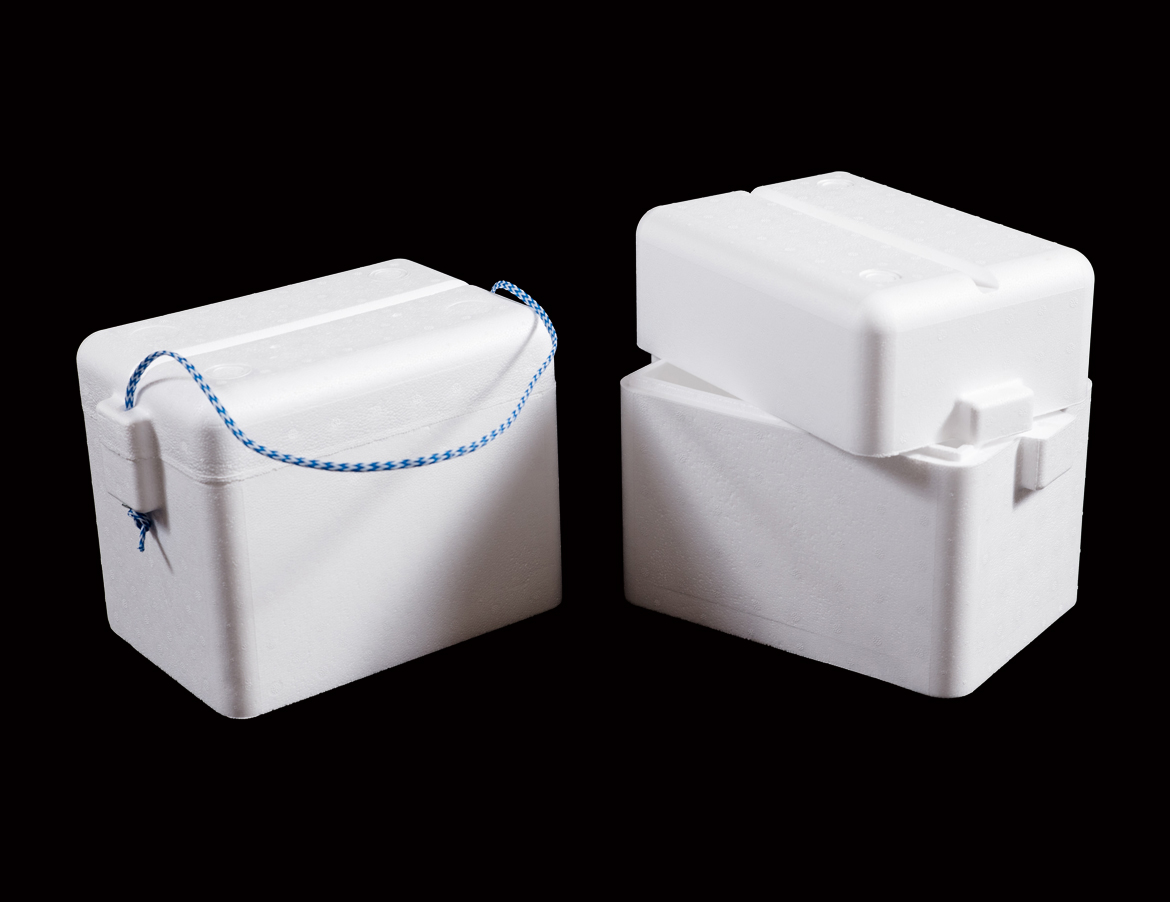

EPS fish box

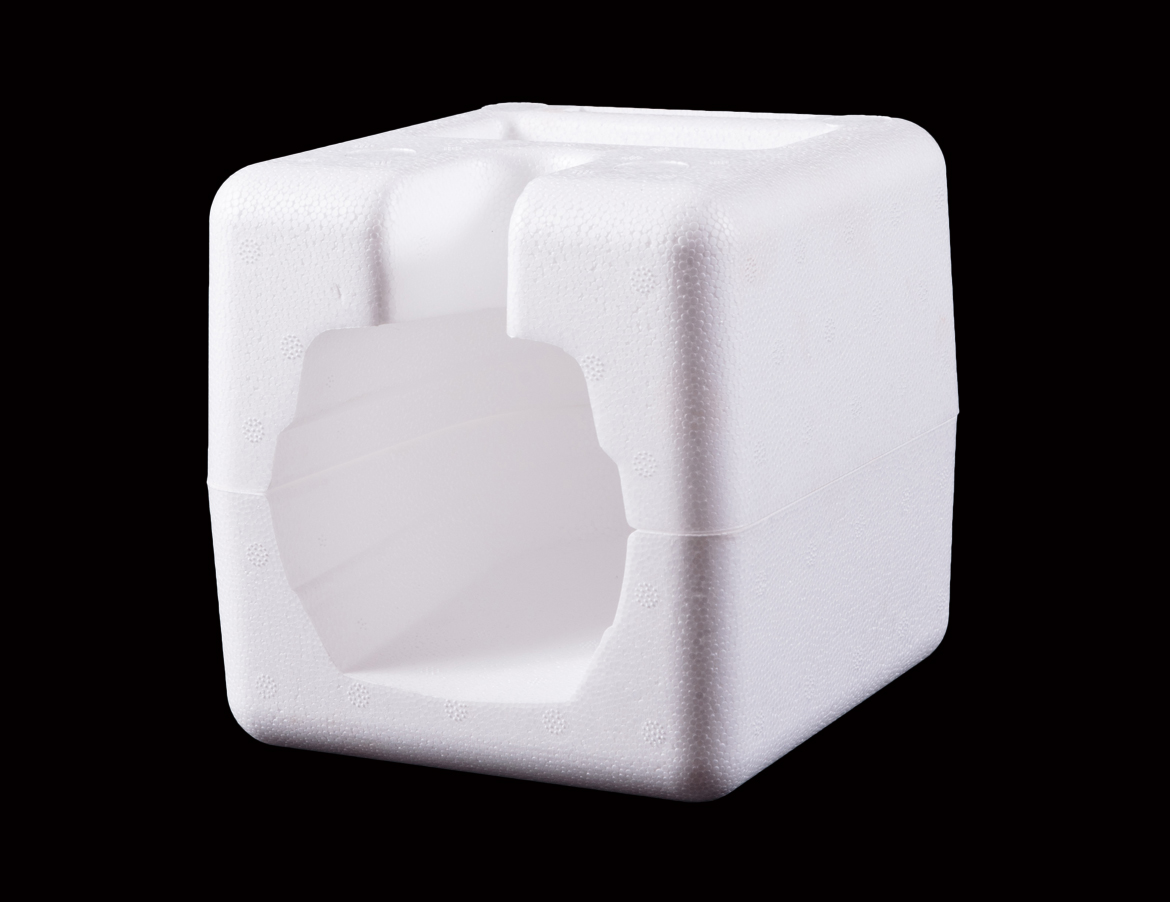

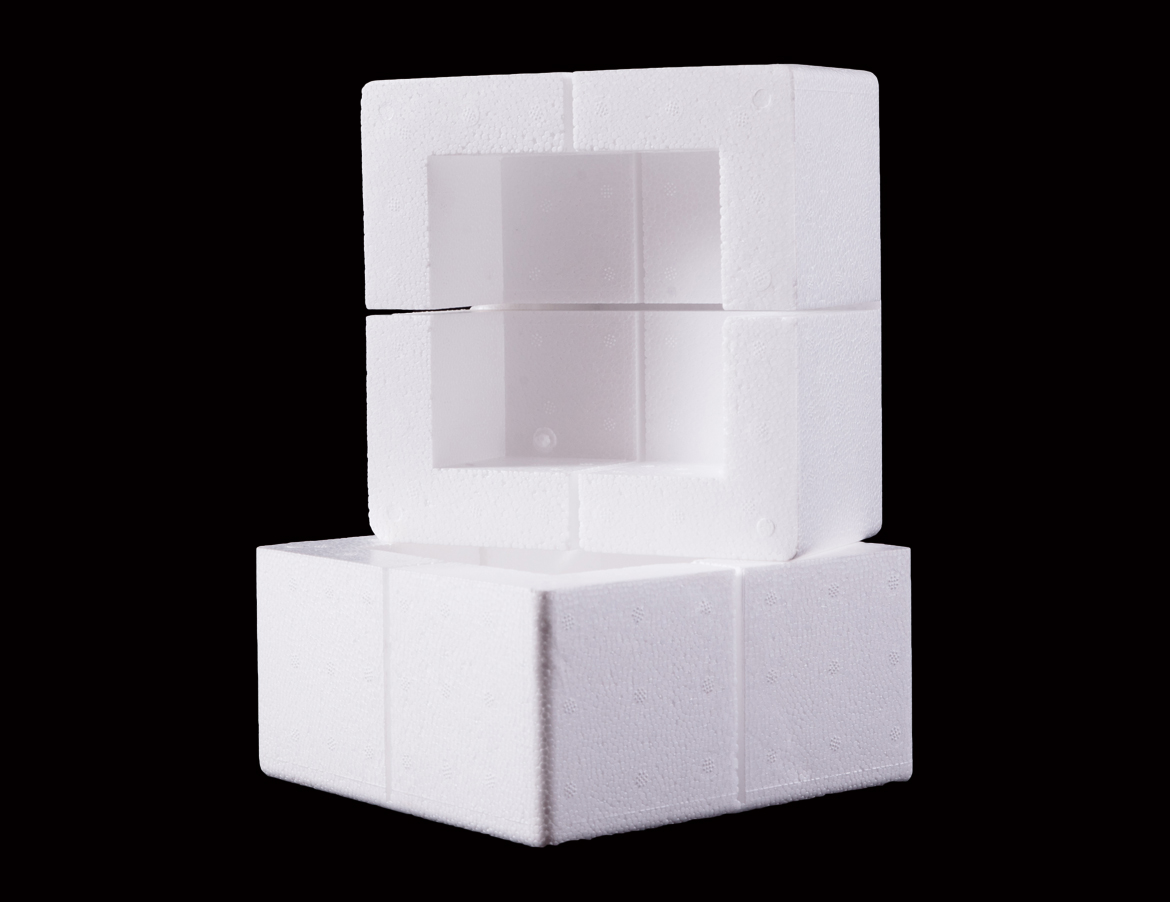

EPS electrical parts packaging

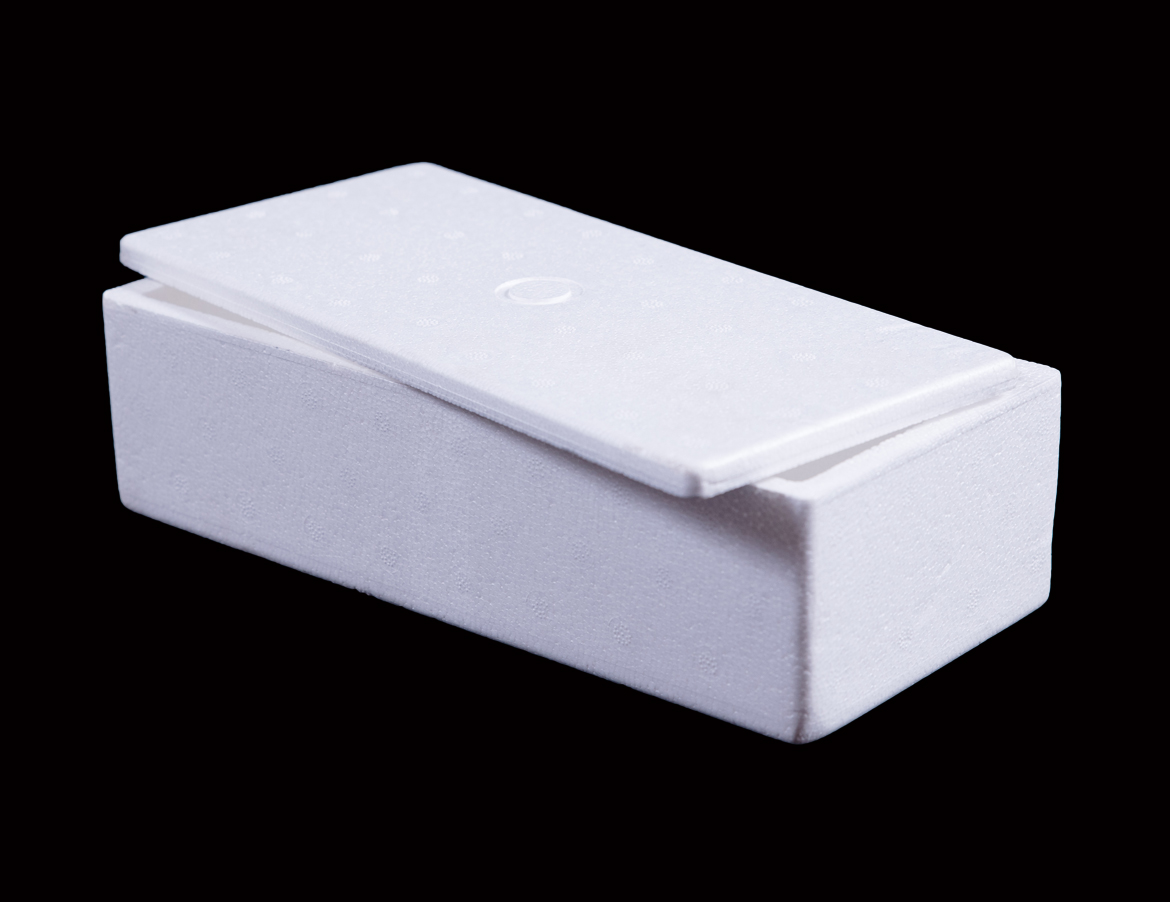

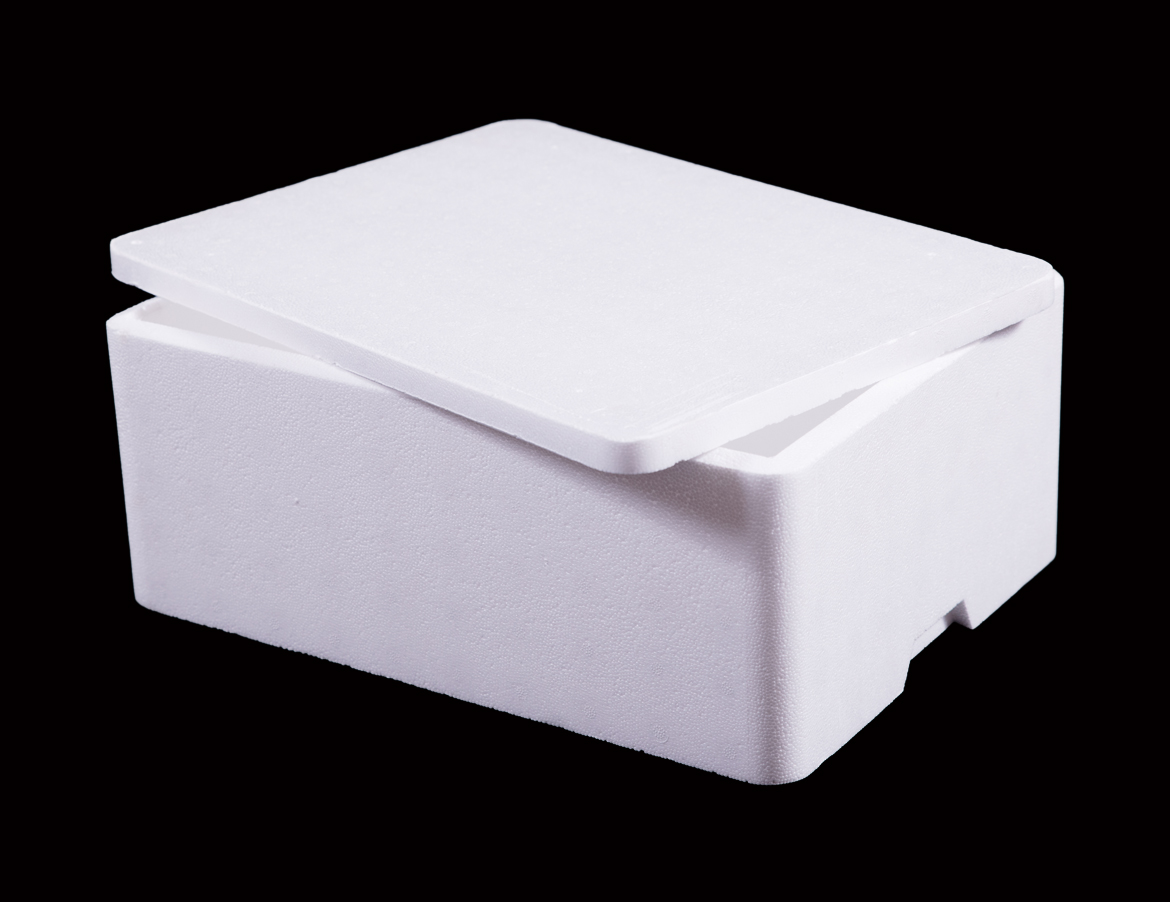

EPS vegetable box
